Airports for X-Plane

Davao City - Francisco Bangoy Intl

Airport details

CountryPhilippines
StateDavao Province
RegionRP
AirspaceManila Ctr
MunicipalityDavao City
Elevation95ft (29m)
TimezoneGMT +8
Coordinates7.13166, 125.65516
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRPMD
IATA codeDVO
FAA coden/a

Communication

Francisco Bangoy Intl ATIS127.000
Francisco Bangoy Intl DAVAO Tower118.100
Francisco Bangoy Intl DAVAO Approach122.400

Approach frequencies

ILS-cat-IRW05109.118.00mi
ILS-cat-IRW23109.918.00mi
3° GSRW05109.118.00mi
3° GSRW23109.918.00mi

Runway info

Runway 05 / 23
 length3003m (9852ft)
 bearing49° / 229°
 width45m (148ft)
 surfaceasphalt
 blast zone120m (394ft) / 122m (400ft)

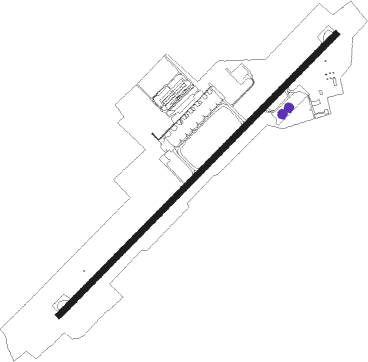

Airport layout - parking location GA


Parking locations

 GA  Spot

Nearby beacons

codeidentifierdistbearingfrequency
DAODAVAO VOR/DME0251°112.10
AVALLAH VALLEY (SURALLAH) NDB70.6230°377

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW05
 DAPE1A32mi142°
 MEGO1A28mi208°
 LATI3R46mi253°
 DEWI1A, DEWI1C32mi289°
 ANKI1A, ANKI1C, ANKI3R65mi321°
 JOFE3R, JOFE1C, JOFE1A57mi332°
 RIMA1A, RIMA1C50mi355°
RW23
 DAPE1B32mi142°
 MEGO1B28mi208°
 LATI3P46mi253°
 DEWI1D, DEWI1B32mi289°
 ANKI3P, ANKI1D, ANKI1B65mi321°
 JOFE1B, JOFE1D, JOFE3P57mi332°
 RIMA1B, RIMA1D50mi355°

STAR starting pointsdistanceinbound heading
ALL
 MEGOM128.328°
 DEWIN132.2109°
 ANKIN164.5141°
 JOFER156.5152°
 RIMAR150.4175°
 DAPEL131.5322°
RW05
 LINA2R48.799°
 RIMA2R50.4175°
RW23
 LINA2P48.799°
 RIMA2P50.4175°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05ARPAS (73°)ARPAS 4000ft
MD05Y (5mi, 139°) 2800ft
RW05EMERS (24°)EMERS 4000ft
MD05Y (6mi, 319°) 2800ft
 RNAVMD05Y 2800ft
MD05F (5mi, 49°) 1800ft
RPMD (7mi, 50°) 177ft
(7527mi, 267°) 1500ft
LOWIS (7533mi, 87°) 3000ft
LOWIS (turn) 3000ft
RW23GLARY (198°)GLARY 4000ft
MD23Y (6mi, 139°) 1900ft
RW23SAJEN (260°)SAJEN 3000ft
MD23Y (6mi, 319°) 1900ft
 RNAVMD23Y 1900ft
MD23F (5mi, 229°) 1900ft
RPMD (6mi, 228°) 146ft
(7527mi, 267°) 1500ft
LOWIS (7533mi, 87°) 3000ft
LOWIS (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
LINA2PGLARYVHFleft320 (140)°4000ft - 9000ft1.0min timed230
LINA2RKLAFUVHFleft348 (168)°6500ft - 13000ft1.0min timed230
RIMA2PGLARYVHFleft320 (140)°4000ft - 9000ft1.0min timed230
RIMA2RKLAFUVHFleft348 (168)°6500ft - 13000ft1.0min timed230
*) magnetic outbound (inbound) holding course
