Airports for X-Plane

Bacolod City - Bacolod-silay Intl

Airport details

CountryPhilippines
StateNegros Occidental
RegionRP
AirspaceManila Ctr
MunicipalitySilay
Elevation22ft (7m)
TimezoneGMT +8
Coordinates10.77661, 123.01910
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeRPVB
IATA codeBCD
FAA coden/a

Communication

Bacolod-Silay Intl CTAF121.500
Bacolod-Silay Intl Tower118.800
Bacolod-Silay Intl Approach121.000

Approach frequencies

ILS-cat-IRW03109.718.00mi
3° GSRW03109.718.00mi
Nearby Points of Interest:
Cesar Lacson Locsin Ancestral House
-
Jose Corteza Locsin Ancestral House
-
Angel Araneta Ledesma Ancestral House
-
Negros Occidental Provincial Capitol

Runway info

Runway 03 / 21
 length2008m (6588ft)
 bearing30° / 210°
 width45m (148ft)
 surfaceconcrete
 blast zone61m (200ft) / 60m (197ft)

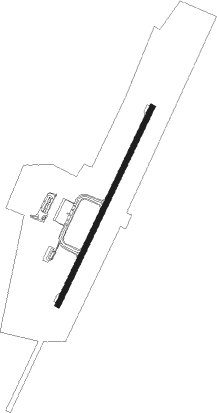

Airport layout


Parking locations

 GA  Gate

Nearby beacons

codeidentifierdistbearingfrequency
BCDBACOLOD VOR/DME0.1133°115.30
IOOILOILO VOR/DME31.2276°116.30
ROXROXAS VOR/DME51.6342°112.90
RXTROXAS TACAN51.9342°113.30
MCTMACTAN (LAPU-LAPU) VOR/DME63.6116°114.30
KLOKALIBO VOR/DME66.1325°113
KLKALIBO NDB66.2325°298

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW03
 VIC2A13mi27°
 KON2C14mi116°
 TAG2E, TAG2C31mi166°
 DPS2A38mi173°
 NANA4P, NNS2A59mi182°
 PALA4P, PAL2A60mi218°
 IOO2A31mi276°
 LAMB4P, LAM2A46mi300°
 GLA2A38mi325°
 MRO2A35mi334°
 NSG2A, NASA4P34mi342°
RW21
 VIC2B13mi27°
 KON2D, KANO6R14mi116°
 TAG2F, TAG2D31mi166°
 DPS2B38mi173°
 NANA4R, NNS2B59mi182°
 PAL2B, PALA4R60mi218°
 IOO2B31mi276°
 LAMB4R, LAM2B46mi300°
 GLA2B38mi325°
 MRO2B35mi334°
 NASA4R, NSG2B34mi342°

STAR starting pointsdistanceinbound heading
ALL
 NNS1A59.22°
 PAL1A59.638°
 IOO1A, IOO1B31.296°
 LAM1A45.7120°
 GLA1A66.1145°
 MRO134.5154°
 NSG1A51.6162°
 VIC122.6231°
 KON1B, TAG1B63.6296°
RW03
 SABE3P31.22°
 NANA3P59.22°
 PALA3P59.638°
 BARB3P46.8111°
 LAMB3P45.7120°
 GALI3P38.1145°
 MARA3P34.5154°
 NASA3P34.2162°
 CADI3P22.6231°
 TADA5P31.3346°
RW21
 SABE3R31.22°
 NANA3R59.22°
 PALA3R59.638°
 BARB3R46.8111°
 LAMB3R45.7120°
 GALI3R38.1145°
 MARA3R34.5154°
 NASA5R34.2162°
 CADI3R22.6231°
 TADA5R31.3346°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03BEGEE (60°)BEGEE 3000ft
VB03A (7mi, 120°) 1800ft
RW03NANDO (30°)NANDO 3000ft
VB03A (7mi, 30°) 1800ft
 RNAVVB03A 1800ft
VB03B (6mi, 30°) 1800ft
RPVB (6mi, 30°) 136ft
(7349mi, 265°) 1000ft
RAVIA (7345mi, 85°) 3000ft
RAVIA (turn) 3000ft
RW21GENES (177°)GENES 3100ft
VB21A (7mi, 120°) 1800ft
RW21TOBBY (210°)TOBBY 5000ft
VB21A (7mi, 210°) 1800ft
 RNAVVB21A 1800ft
VB21B (5mi, 210°) 1800ft
RPVB (6mi, 210°) 134ft
(7349mi, 265°) 1000ft
GENES (7347mi, 85°) 3100ft
GENES (turn) 3100ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BARB3PBEGEEVHFright301 (121)°3000ft - 13000ft1.0min timed230
BARB3RGENESVHFright301 (121)°3100ft - 13000ft1.0min timed230
CADI3PBEGEEVHFright301 (121)°3000ft - 13000ft1.0min timed230
CADI3RTOBBYVHFright31 (211)°5000ft - 13000ft1.0min timed230
GALI3PBEGEEVHFright301 (121)°3000ft - 13000ft1.0min timed230
GALI3RGENESVHFright301 (121)°3100ft - 13000ft1.0min timed230
LAMB3PBEGEEVHFright301 (121)°3000ft - 13000ft1.0min timed230
LAMB3RGENESVHFright301 (121)°3100ft - 13000ft1.0min timed230
MARA3PBEGEEVHFright301 (121)°3000ft - 13000ft1.0min timed230
MARA3RGENESVHFright301 (121)°3100ft - 13000ft1.0min timed230
NANA3PNANDOVHFleft211 (31)°3000ft - 13000ft1.0min timed230
NANA3RGENESVHFright301 (121)°3100ft - 13000ft1.0min timed230
NASA3PBEGEEVHFright301 (121)°3000ft - 13000ft1.0min timed230
NASA5RGENESVHFright301 (121)°3100ft - 13000ft1.0min timed230
PALA3PNANDOVHFleft211 (31)°3000ft - 13000ft1.0min timed230
PALA3RGENESVHFright301 (121)°3100ft - 13000ft1.0min timed230
SABE3PNANDOVHFleft211 (31)°3000ft - 13000ft1.0min timed230
SABE3RGENESVHFright301 (121)°3100ft - 13000ft1.0min timed230
TADA5PNANDOVHFleft211 (31)°3000ft - 13000ft1.0min timed230
TADA5RGENESVHFright301 (121)°3100ft - 13000ft1.0min timed230
*) magnetic outbound (inbound) holding course
