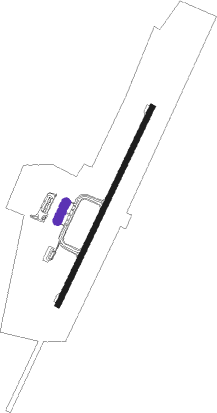

Bacolod City - Bacolod-silay Intl
Airport details
| Country | Philippines |
| State | Negros Occidental |
| Region | RP |
| Airspace | Manila Ctr |
| Municipality | Silay |
| Elevation | 22ft (7m) |
| Timezone | GMT +8 |
| Coordinates | 10.77661, 123.01910 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.32 |
| ICAO code | RPVB |
| IATA code | BCD |
| FAA code | n/a |
Communication
| Bacolod-Silay Intl CTAF | 121.500 |
| Bacolod-Silay Intl Tower | 118.800 |
| Bacolod-Silay Intl Approach | 121.000 |
Approach frequencies
| ILS-cat-I | RW03 | 109.7 | 18.00mi |
| 3° GS | RW03 | 109.7 | 18.00mi |
Nearby Points of Interest:
Cesar Lacson Locsin Ancestral House
-Jose Corteza Locsin Ancestral House
-Angel Araneta Ledesma Ancestral House
-Negros Occidental Provincial Capitol
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| BCD | BACOLOD VOR/DME | 0.1 | 133° | 115.30 |
| IOO | ILOILO VOR/DME | 31.2 | 276° | 116.30 |
| ROX | ROXAS VOR/DME | 51.6 | 342° | 112.90 |
| RXT | ROXAS TACAN | 51.9 | 342° | 113.30 |
| MCT | MACTAN (LAPU-LAPU) VOR/DME | 63.6 | 116° | 114.30 |
| KLO | KALIBO VOR/DME | 66.1 | 325° | 113 |
| KL | KALIBO NDB | 66.2 | 325° | 298 |
Departure and arrival routes
| Transition altitude | 11000ft |
| Transition level | 13000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW03 | |||
| VIC2A | 13mi | 27° | |
| KON2C | 14mi | 116° | |
| TAG2E, TAG2C | 31mi | 166° | |
| DPS2A | 38mi | 173° | |
| NANA4P, NNS2A | 59mi | 182° | |
| PALA4P, PAL2A | 60mi | 218° | |
| IOO2A | 31mi | 276° | |
| LAMB4P, LAM2A | 46mi | 300° | |
| GLA2A | 38mi | 325° | |
| MRO2A | 35mi | 334° | |
| NSG2A, NASA4P | 34mi | 342° | |
| RW21 | |||
| VIC2B | 13mi | 27° | |
| KON2D, KANO6R | 14mi | 116° | |
| TAG2F, TAG2D | 31mi | 166° | |
| DPS2B | 38mi | 173° | |
| NANA4R, NNS2B | 59mi | 182° | |
| PAL2B, PALA4R | 60mi | 218° | |
| IOO2B | 31mi | 276° | |
| LAMB4R, LAM2B | 46mi | 300° | |
| GLA2B | 38mi | 325° | |
| MRO2B | 35mi | 334° | |
| NASA4R, NSG2B | 34mi | 342° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| NNS1A | 59.2 | 2° | |
| PAL1A | 59.6 | 38° | |
| IOO1A, IOO1B | 31.2 | 96° | |
| LAM1A | 45.7 | 120° | |
| GLA1A | 66.1 | 145° | |
| MRO1 | 34.5 | 154° | |
| NSG1A | 51.6 | 162° | |
| VIC1 | 22.6 | 231° | |
| KON1B, TAG1B | 63.6 | 296° | |
| RW03 | |||
| SABE3P | 31.2 | 2° | |
| NANA3P | 59.2 | 2° | |
| PALA3P | 59.6 | 38° | |
| BARB3P | 46.8 | 111° | |
| LAMB3P | 45.7 | 120° | |
| GALI3P | 38.1 | 145° | |
| MARA3P | 34.5 | 154° | |
| NASA3P | 34.2 | 162° | |
| CADI3P | 22.6 | 231° | |
| TADA5P | 31.3 | 346° | |
| RW21 | |||
| SABE3R | 31.2 | 2° | |
| NANA3R | 59.2 | 2° | |
| PALA3R | 59.6 | 38° | |
| BARB3R | 46.8 | 111° | |
| LAMB3R | 45.7 | 120° | |
| GALI3R | 38.1 | 145° | |
| MARA3R | 34.5 | 154° | |
| NASA5R | 34.2 | 162° | |
| CADI3R | 22.6 | 231° | |
| TADA5R | 31.3 | 346° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW03 | BEGEE (60°) | BEGEE 3000ft VB03A (7mi, 120°) 1800ft |
| RW03 | NANDO (30°) | NANDO 3000ft VB03A (7mi, 30°) 1800ft |
| RNAV | VB03A 1800ft VB03B (6mi, 30°) 1800ft RPVB (6mi, 30°) 136ft (7349mi, 265°) 1000ft RAVIA (7345mi, 85°) 3000ft RAVIA (turn) 3000ft | |
| RW21 | GENES (177°) | GENES 3100ft VB21A (7mi, 120°) 1800ft |
| RW21 | TOBBY (210°) | TOBBY 5000ft VB21A (7mi, 210°) 1800ft |
| RNAV | VB21A 1800ft VB21B (5mi, 210°) 1800ft RPVB (6mi, 210°) 134ft (7349mi, 265°) 1000ft GENES (7347mi, 85°) 3100ft GENES (turn) 3100ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| BARB3P | BEGEE | VHF | right | 301 (121)° | 3000ft - 13000ft | 1.0min timed | 230 |
| BARB3R | GENES | VHF | right | 301 (121)° | 3100ft - 13000ft | 1.0min timed | 230 |
| CADI3P | BEGEE | VHF | right | 301 (121)° | 3000ft - 13000ft | 1.0min timed | 230 |
| CADI3R | TOBBY | VHF | right | 31 (211)° | 5000ft - 13000ft | 1.0min timed | 230 |
| GALI3P | BEGEE | VHF | right | 301 (121)° | 3000ft - 13000ft | 1.0min timed | 230 |
| GALI3R | GENES | VHF | right | 301 (121)° | 3100ft - 13000ft | 1.0min timed | 230 |
| LAMB3P | BEGEE | VHF | right | 301 (121)° | 3000ft - 13000ft | 1.0min timed | 230 |
| LAMB3R | GENES | VHF | right | 301 (121)° | 3100ft - 13000ft | 1.0min timed | 230 |
| MARA3P | BEGEE | VHF | right | 301 (121)° | 3000ft - 13000ft | 1.0min timed | 230 |
| MARA3R | GENES | VHF | right | 301 (121)° | 3100ft - 13000ft | 1.0min timed | 230 |
| NANA3P | NANDO | VHF | left | 211 (31)° | 3000ft - 13000ft | 1.0min timed | 230 |
| NANA3R | GENES | VHF | right | 301 (121)° | 3100ft - 13000ft | 1.0min timed | 230 |
| NASA3P | BEGEE | VHF | right | 301 (121)° | 3000ft - 13000ft | 1.0min timed | 230 |
| NASA5R | GENES | VHF | right | 301 (121)° | 3100ft - 13000ft | 1.0min timed | 230 |
| PALA3P | NANDO | VHF | left | 211 (31)° | 3000ft - 13000ft | 1.0min timed | 230 |
| PALA3R | GENES | VHF | right | 301 (121)° | 3100ft - 13000ft | 1.0min timed | 230 |
| SABE3P | NANDO | VHF | left | 211 (31)° | 3000ft - 13000ft | 1.0min timed | 230 |
| SABE3R | GENES | VHF | right | 301 (121)° | 3100ft - 13000ft | 1.0min timed | 230 |
| TADA5P | NANDO | VHF | left | 211 (31)° | 3000ft - 13000ft | 1.0min timed | 230 |
| TADA5R | GENES | VHF | right | 301 (121)° | 3100ft - 13000ft | 1.0min timed | 230 |
| *) magnetic outbound (inbound) holding course | |||||||
