Airports for X-Plane

Rio De Janeiro - Campo Delio Jardim De Mattos

Airport details

CountryBrazil
StateRio de Janeiro
RegionSB
AirspaceCuritiba Ctr
Elevation106ft (32m)
TimezoneGMT -3
Coordinates-22.87556, -43.38445
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBAF
IATA coden/a
FAA coden/a

Communication

Campo Delio Jardim de Mattos AFONSOS121.850
Campo Delio Jardim de Mattos AFONSOS Tower118.900
Campo Delio Jardim de Mattos RIO Approach119.350

Runway info

Runway 08 / 26
 length1992m (6535ft)
 bearing63° / 243°
 width52m (171ft)
 surfaceconcrete
 blast zone24m (79ft) / 0m (0ft)

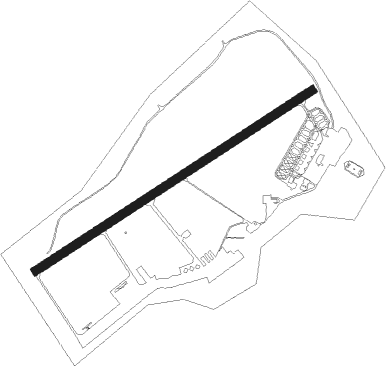

Airport layout


Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
CAXCAXIAS (RIO DE JANEIRO) NDB7.223°400
CXIGALEAO (RIO DE JANEIRO) VOR/DME7.765°112.30
NOANOVA (RIO DE JANEIRO TMA) NDB10.8329°215
PPPAIOL (RIO DE JANEIRO) NDB12.189°415
YLAILHA (RIO DE JANEIRO) NDB13.168°330
IHRASA (RIO DE JANEIRO TMA) NDB17.3128°315
SCRSANTA CRUZ (RIO) VOR/DME19.4258°113.60
MIAMARICA VOR/DME27.8101°114.80
PCXPORTO (RIO DE JANEIRO TMA VOR/DME30.773°114.60
PAIPIRAI VOR/DME35.7313°115

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW08
 PUMS1A133mi43°
 NEPO1A47mi278°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RWNVAEGDUT (120°)EGDUT 6300ft
RJ001 (5mi, 68°) 4700ft
EGBAT (4mi, 68°) 3300ft
RWNVAUTBOM (150°)UTBOM 6300ft
DOOPK (3mi, 124°) 5000ft
EGBAT (5mi, 124°) 3300ft
 RNAVEGBAT 3300ft
AF002 (6mi, 126°) 1500ft
AF003 (3mi, 203°) 760ft
AF004 (9mi, 252°)
DONGI (5mi, 258°)
SCR (9mi, 246°) 5100ft
SCR (turn) 5100ft
RWNVBAF012 (71°)AF012 6000ft
AF006 (5mi, 352°) 4500ft
RWNVBAF013 (88°)AF013 6000ft
AF006 (5mi, 83°) 4500ft
RWNVBAF014 (108°)AF014 6000ft
AF006 (5mi, 172°) 4500ft
 RNAVAF006 4500ft
AF007 (5mi, 83°) 2900ft
AF009 (5mi, 97°) 1310ft
(2884mi, 62°) 2100ft
AF011 (2885mi, 242°) 3600ft
AF012 (11mi, 280°) 6000ft
AF012 (turn) 6000ft
