Airports for X-Plane

Anápolis - Base Aerea

Airport details

CountryBrazil
StateGoiás
RegionSB
AirspaceBrasilia Ctr
MunicipalityAnápolis
Elevation3728ft (1136m)
TimezoneGMT -3
Coordinates-16.23861, -48.97222
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBAN
IATA codeAPS
FAA coden/a

Communication

Base Aerea Ground Control121.900
Base Aerea Tower121.250
Base Aerea Tower118.300
Base Aerea Approach133.000
Base Aerea Approach129.450
Base Aerea Approach119.150
Base Aerea Approach120.550

Approach frequencies

ILS-cat-IRW24R111.118.00mi
2.6° GSRW24R111.118.00mi
Nearby Points of Interest:
House of the Babilónia Estate
-
Praça Cívica
-
Parish Church of Our Lady of the Rosary

Runway info

Runway 06L / 24R
 length3311m (10863ft)
 bearing40° / 220°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 06R / 24L
 length2268m (7441ft)
 bearing40° / 220°
 width23m (75ft)
 surfaceasphalt
 displ threshold7m (23ft) / 10m (33ft)

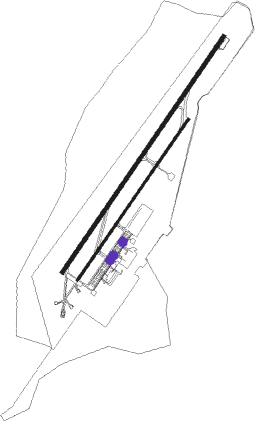

Airport layout - parking location Ramp


Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
APOANAPOLIS VOR/DME0.5225°116.80
GNVGOIANIA VOR/DME27.8211°115.90
SBGSANTA BARBARA (ANAPOLIS) NDB46.5245°230
BSIBRASILIA VOR/DME59.169°116.30

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW06L
 OMNI10mi40°
 DOGP2A24mi335°
RW24R
 OMNI10mi40°
 PAJE1A22mi90°
 DODM2A24mi335°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06LZAN001 (65°)AN001 7000ft
AN004 (6mi, 109°) 5400ft
RW06LZAN002 (40°)AN002 7000ft
AN004 (5mi, 40°) 5400ft
RW06LZAN003 (15°)AN003 7000ft
AN004 (6mi, 328°) 5400ft
 RNAVAN004 5400ft
AN006 (5mi, 40°) 5380ft
SBAN (5mi, 41°) 3781ft
AN008 (17mi, 40°) 7000ft
AN008 (turn) 7000ft
RW24RYAN007 (242°)AN007 7000ft
AN011 (6mi, 289°) 5400ft
RW24RYAN008 (220°)AN008 7000ft
AN011 (5mi, 220°) 5400ft
RW24RYAN009 (197°)AN009 7000ft
AN011 (6mi, 148°) 5400ft
 RNAVAN011 5400ft
AN016 (5mi, 220°) 5300ft
SBAN (7mi, 220°) 3706ft
AN002 (15mi, 220°) 7000ft
AN002 (turn) 7000ft
