Airports for X-Plane

Belém - Val De Cans Intl

Airport details

CountryBrazil
StatePará
RegionSB
AirspaceAmazonica Ctr
MunicipalityBelém
Elevation54ft (16m)
TimezoneGMT -3
Coordinates-1.38472, -48.47889
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBBE
IATA codeBEL
FAA coden/a

Communication

Val De Cans Intl BELEM ATIS127.600
Val De Cans Intl Ground Control121.900
Val De Cans Intl BELEM Tower118.700
Val De Cans Intl BELEM Approach119.500
Val De Cans Intl BELEM Approach119.050

Approach frequencies

ILS-cat-IRW06109.318.00mi
3° GSRW06109.318.00mi

Runway info

Runway 06 / 24
 length2809m (9216ft)
 bearing45° / 225°
 width45m (148ft)
 surfaceasphalt
 blast zone55m (180ft) / 60m (197ft)
Runway 02 / 20
 length1836m (6024ft)
 bearing4° / 184°
 width45m (148ft)
 surfaceasphalt
 blast zone59m (194ft) / 59m (194ft)

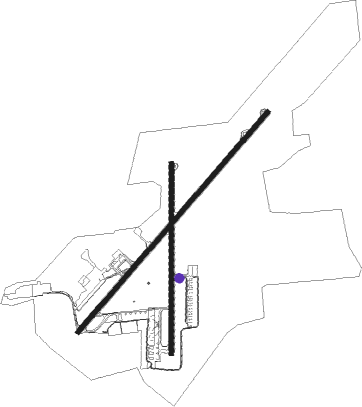

Airport layout - taxiway location H


Taxiway locations

 A  APRON1  APRON2  APRON3  APRON4  B  C  D
 E  G  H  I  J  K  RFFS
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
BELBELEM VOR/DME042°117.30

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW02
 PUPK1B, PUPK1A40mi106°
 NAXO1A40mi123°
 ILSA1A, ILSA1B40mi166°
 KODS1A55mi179°
 ROTA1B40mi244°
 ILMA1A40mi261°
 PUNE1B40mi264°
 TAMA1B40mi277°
 ILPE1B40mi299°
 KOGV1A93mi299°
RW06
 PUPK1B, PUPK1A40mi106°
 NAXO1A40mi123°
 ILSA1A, ILSA1B40mi166°
 KODS1A55mi179°
 ROTA1B40mi244°
 ILMA1A40mi261°
 PUNE1B40mi264°
 TAMA1B40mi277°
 KOGV1A93mi299°
 ILPE1B40mi299°

STAR starting pointsdistanceinbound heading
RW06
 SIMU1A75.081°
 KOGV1A, KOGV1B92.9119°
 ITAK1A, ITAK1B66.9286°
 ASBO1A67.0303°
 KODS1A55.4359°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02BE028 (4°)BE028 3000ft
BE027 (5mi, 5°) 2000ft
RW02BE029 (26°)BE029 3000ft
BE027 (5mi, 75°) 2000ft
RW02BE031 (343°)BE031 3000ft
BE027 (5mi, 295°) 2000ft
 RNAVBE027 2000ft
BE026 (5mi, 5°) 1670ft
BE006 (2mi, 5°) 1065ft
SBBE (3mi, 3°) 71ft
(2912mi, 88°) 1200ft
SURDI (2921mi, 268°) 2000ft
SURDI (turn) 2000ft
RW06-YBE017 (359°)BE017 3000ft
BE016 (3mi, 290°) 2200ft
BE368 (6mi, 348°) 1300ft
RW06-YBE019 (77°)BE019 3000ft
BE018 (3mi, 123°) 2200ft
BE368 (4mi, 84°) 1300ft
RW06-YBE393 (22°)BE393 3000ft
BE014 (4mi, 352°) 2200ft
BE368 (5mi, 19°) 1300ft
 RNAVBE368 1300ft
BE007 (2mi, 46°) 1040ft
SBBE (3mi, 47°) 87ft
(2912mi, 88°) 1200ft
SURDI (2921mi, 268°) 2000ft
SURDI (turn) 2000ft
RW06-ZBE389 (46°)BE389 3000ft
BE367 (6mi, 45°) 2000ft
RW06-ZBE392 (70°)BE392 3000ft
BE367 (6mi, 116°) 2000ft
RW06-ZBE393 (22°)BE393 3000ft
BE367 (6mi, 336°) 2000ft
 RNAVBE367 2000ft
BE368 (5mi, 45°) 1680ft
SBBE (5mi, 47°) 87ft
(2912mi, 88°) 1200ft
SURDI (2921mi, 268°) 2000ft
SURDI (turn) 2000ft
RW20BE401 (185°)BE401 3000ft
BE391 (6mi, 185°) 2000ft
RW20BE402 (209°)BE402 3000ft
BE391 (6mi, 255°) 2000ft
RW20BE403 (161°)BE403 3000ft
BE391 (6mi, 115°) 2000ft
 RNAVBE391 2000ft
BE371 (5mi, 185°) 1700ft
SBBE (6mi, 186°) 98ft
(2912mi, 88°) 1200ft
SURDI (2921mi, 268°) 2000ft
SURDI (turn) 2000ft
RW24BE386 (225°)BE386 3000ft
BE363 (6mi, 225°) 2000ft
RW24BE387 (248°)BE387 3000ft
BE363 (6mi, 296°) 2000ft
RW24BE411 (202°)BE411 3000ft
BE363 (6mi, 156°) 2000ft
 RNAVBE363 2000ft
BE378 (5mi, 225°) 1700ft
SBBE (6mi, 224°) 102ft
(2912mi, 88°) 1200ft
SURDI (2921mi, 268°) 2000ft
SURDI (turn) 2000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASBO1ABE067VHFleft132 (312)°1.0min timedICAO rules
ITAK1ABE062VHFright113 (293)°1.0min timedICAO rules
ITAK1BBE062VHFright113 (293)°1.0min timedICAO rules
KODS1ABE053VHFleft193 (13)°1.0min timedICAO rules
KOGV1ABE021VHFright324 (144)°1.0min timedICAO rules
KOGV1BBE021VHFright324 (144)°1.0min timedICAO rules
SIMU1ABE051VHFright289 (109)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
