Airports for X-Plane

Curitiba - Curitiba Bacacheri

Airport details

CountryBrazil
StateParaná
RegionSB
AirspaceCuritiba Ctr
MunicipalityCuritiba
Elevation3057ft (932m)
TimezoneGMT -3
Coordinates-25.40333, -49.23361
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBBI
IATA codeBFH
FAA coden/a

Communication

Curitiba Bacacheri Ground Control121.800
Curitiba Bacacheri Tower118.900
Curitiba Bacacheri CURITIBA Approach129.550
Nearby Points of Interest:
Jockey Club do Paraná
-
Casa Barão do Serro Azul
-
Paço da Liberdade
-
Palácio da Liberdade (Curitiba)
-
Antigo Palácio Wolff
-
Palácio Garibaldi
-
Paraná Public Library
-
Casa Emílio Romani
-
Antigo Engenho de Mate da Rondinha
-
Graciosa State Park
-
Ponte do Rio dos Papagaios
-
Sede da Fazenda Cancela

Runway info

Runway 18 / 36
 length1399m (4590ft)
 bearing156° / 336°
 width33m (108ft)
 surfaceasphalt
 displ threshold306m (1004ft) / 0m (0ft)

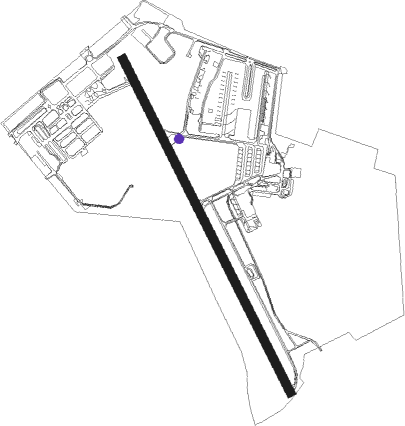

Airport layout - taxiway location C


Taxiway locations

 A  B  C  D
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
BCHBACACHERI NDB0.282°300
CTBCURITIBA VOR/DME8.5153°116.50
LAADME36.4235°117.70
PGADME39101°114.10
PGRGROSSA NDB51.3284°275
JNVJOINVILLE VOR/DME54.5152°115.10

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW18
 PAGI2A34mi7°
 OMNI14mi75°
 TINS2C35mi137°
 AKPI1C35mi281°
RW36
 OMNI14mi75°
 PAGI1D35mi137°
 LOME1D35mi281°

STAR starting pointsdistanceinbound heading
RW18
 MATK2C46.7159°
 RAXI1C102.6237°
RW36
 MATK1D36.7160°
 RAXI1D102.6237°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW36-YBI063 (244°)BI063 6500ft
BI058 (3mi, 196°) 5500ft
BI062 (7mi, 206°) 4500ft
 RNAVBI062 4500ft
BI079 (2mi, 291°) 4500ft
BI061 (1mi, 291°) 4080ft
BI059 (3mi, 305°) 3329ft
(3234mi, 63°) 4000ft
BI063 (3224mi, 243°) 6500ft
BI063 (turn) 6500ft
RW36-ZALGUD (339°)ALGUD 7000ft
OPVIS (6mi, 47°) 5500ft
BUVBA (5mi, 312°) 5400ft
CTB (5mi, 314°) 4900ft
RW36-ZEDSUR (303°)EDSUR 7000ft
OPVIS (6mi, 227°) 5500ft
BUVBA (5mi, 312°) 5400ft
CTB (5mi, 314°) 4900ft
 RNAVCTB 4900ft
BI002 (3mi, 326°) 4700ft
SBBI (6mi, 336°) 3109ft
GIMSO (19mi, 331°) 6000ft
GIMSO (turn) 6000ft
RWNVAEPGAV (225°)EPGAV 7000ft
BI018 (5mi, 278°) 5000ft
RWNVAILRIT (191°)ILRIT 7000ft
BI018 (6mi, 190°) 5000ft
 RNAVBI018 5000ft
BI019 (3mi, 190°) 4680ft
BI034 (3mi, 190°) 3720ft
EPGAV (8mi, 52°) 7000ft
EPGAV (turn) 7000ft
RWNVBEPGAV (225°)EPGAV 7000ft
BI018 (5mi, 278°) 5000ft
RWNVBILRIT (191°)ILRIT 7000ft
BI018 (6mi, 190°) 5000ft
 RNAVBI018 5000ft
BI019 (3mi, 190°) 4680ft
BI034 (3mi, 190°) 3720ft
EPGAV (8mi, 52°) 7000ft
EPGAV (turn) 7000ft
