Airports for X-Plane

Cascavel

Airport details

CountryBrazil
StateParaná
RegionSB
AirspaceCuritiba Ctr
MunicipalityCascavel
Elevation2473ft (754m)
TimezoneGMT -3
Coordinates-25.00222, -53.50195
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBCA
IATA codeCAC
FAA coden/a

Communication

Cascavel RDO131.850

Runway info

Runway 15 / 33
 length1777m (5830ft)
 bearing132° / 312°
 width46m (151ft)
 surfaceasphalt

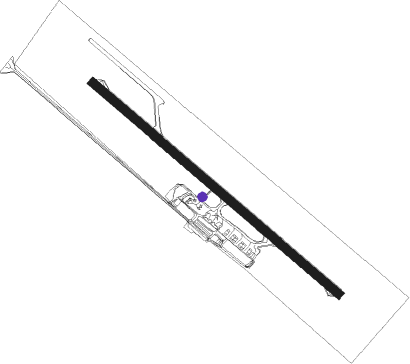

Airport layout - taxiway location A


Taxiway locations

 A  B  C
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
CAVCASCAVEL NDB0237°220
ZMAYOR D CARLOS EDUARDO KRAUSE NDB68.1232°310
GAIGUAIRA NDB68.7321°305
IGUCATARATAS DEL IGUAZU VOR/DME69.1233°114.10

Departure and arrival routes

Transition altitude4000ft
Transition level40ft
SID end pointsdistanceoutbound heading
RW15
 TEME1B76mi55°
 ROKI1B39mi130°
 VUGL1B43mi142°
 AURI1B86mi179°
 UPOR1B65mi240°
 OMNI62mi253°
RW33
 TEME2A76mi55°
 COAN2A43mi142°
 UPOR2A65mi240°
 OMNI62mi253°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15CA003 (164°)CA003 6000ft
CA002 (6mi, 228°) 4500ft
RW15CA004 (105°)CA004 6000ft
CA002 (6mi, 48°) 4500ft
 RNAVCA002 4500ft
CA001 (5mi, 132°) 4150ft
CA014 (2mi, 132°) 3504ft
SBCA (4mi, 134°) 2531ft
(3446mi, 65°) 3300ft
CA004 (3456mi, 245°) 6000ft
CA004 (turn) 6000ft
RW33CA007 (312°)CA007 6000ft
CA009 (6mi, 312°) 4500ft
RW33CA011 (283°)CA011 6000ft
CA009 (6mi, 228°) 4500ft
RW33CA012 (343°)CA012 6000ft
CA009 (6mi, 48°) 4500ft
 RNAVCA009 4500ft
CA008 (5mi, 312°) 4100ft
CA013 (2mi, 312°) 3461ft
SBCA (3mi, 311°) 2506ft
(3446mi, 65°) 3300ft
CA012 (3447mi, 245°) 6000ft
CA012 (turn) 6000ft
