Airports for X-Plane

Belo Horizonte - Tancredo Neves

Airport details

CountryBrazil
StateMinas Gerais
RegionSB
AirspaceBrasilia Ctr
MunicipalityConfins
Elevation2712ft (827m)
TimezoneGMT -3
Coordinates-19.62444, -43.97194
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBCF
IATA codeCNF
FAA coden/a

Communication

Tancredo Neves BELO HORIZONTE ATIS127.450
Tancredo Neves CONFINS Clearance DEL121.000
Tancredo Neves Ground Control121.900
Tancredo Neves CONFINS Tower118.200
Tancredo Neves BELO HORIZONTE Approach129.400
Tancredo Neves BELO HORIZONTE Approach119.650
Tancredo Neves BELO HORIZONTE Approach120.200
Tancredo Neves BELO HORIZONTE Approach129.100

Approach frequencies

ILS-cat-IRW16109.718.00mi
ILS-cat-IRW34110.318.00mi
3° GSRW16109.718.00mi
3° GSRW34110.318.00mi

Runway info

Runway 16 / 34
 length3606m (11831ft)
 bearing137° / 317°
 width45m (148ft)
 surfaceasphalt
 blast zone62m (203ft) / 62m (203ft)

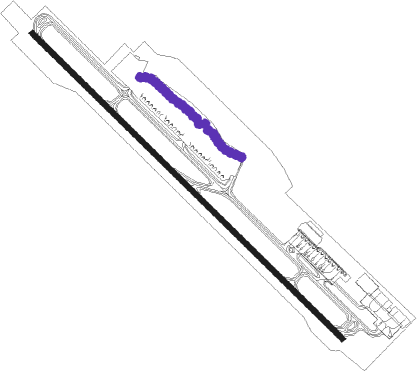

Airport layout - parking location Gate


Taxiway locations

 A  B  C1  F1  H  J  L  M
 N  P
Parking locations

 Gate  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
LSTLAGOA SANTA NDB4.7115°295
CNFCONFINS (BELO HORIZONTE) VOR/DME5.8311°114.40
BHZBELO HORIZONTE VOR/DME12.8189°117.70
PMIDE MINAS DME38.2251°113.70
CVODME59.3331°113.40

Departure and arrival routes

Transition altitude8000ft
Transition level8000ft
SID end pointsdistanceoutbound heading
RW16
 SINE1A, ISNU1A84mi84°
 KUBE1A60mi109°
 MUGR1B, ISLE1A40mi265°
 SUBR1A, TORU1A39mi326°
RW34
 SINE1A, GATO1A84mi84°
 IRAX1A60mi109°
 MUGR1A, AKRA1A40mi265°
 SUBR1B, TORU1A39mi326°

STAR starting pointsdistanceinbound heading
RW16
 ISVA1A49.537°
 GILN1A50.0119°
 EPDI1A50.5215°
 KIMU1A23.8303°
RW34
 ISVA1A49.537°
 GILN1A50.0119°
 EPDI1A50.5215°
 KIMU1A23.8303°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16-YAKPUV (167°)AKPUV 7000ft
UGTES (6mi, 230°) 5000ft
RW16-YOSOMI (136°)OSOMI 7000ft
UGTES (5mi, 137°) 5000ft
RW16-YTISLO (107°)TISLO 7000ft
UGTES (6mi, 50°) 5000ft
 RNAVUGTES 5000ft
CF012 (5mi, 137°) 4540ft
CF016 (6mi, 137°) 2761ft
(2842mi, 66°) 4700ft
CF039 (2836mi, 246°) 7000ft
CF039 (turn) 7000ft
RW16AKPUV (167°)AKPUV 7000ft
UGTES (6mi, 230°) 5000ft
RW16OSOMI (136°)OSOMI 7000ft
UGTES (5mi, 137°) 5000ft
RW16TISLO (107°)TISLO 7000ft
UGTES (6mi, 50°) 5000ft
 RNAVUGTES 5000ft
CF012 (5mi, 137°) 4400ft
SBCF (5mi, 135°) 2762ft
(2842mi, 66°) 4700ft
CF039 (2836mi, 246°) 7000ft
CF039 (turn) 7000ft
RW34-ZKUGUT (291°)KUGUT 7000ft
NIGRI (6mi, 230°) 5600ft
RW34-ZVADON (318°)VADON 7000ft
NIGRI (3mi, 317°) 5600ft
 RNAVNIGRI 5600ft
KUMEV (5mi, 317°) 4270ft
CF049 (3mi, 317°) 3217ft
SBCF (3mi, 322°) 2771ft
(2842mi, 66°) 4700ft
KUGUT (2832mi, 246°) 7000ft
KUGUT (turn) 7000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
EPDI1ACF033VHFleft70 (250)°1.0min timedICAO rules
GILN1AWH009VHFleft312 (132)°1.0min timedICAO rules
ISVA1ACF042VHFleft224 (44)°1.0min timedICAO rules
KIMU1AKIMUSVHFright162 (342)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
