Caxias Do Sul - Hugo Cantergiani

Airport details

Country	Brazil
State	Rio Grande do Sul
Region	SB
Airspace	Curitiba Ctr
Municipality	Caxias do Sul
Elevation	2472ft (753m)
Timezone	GMT -3
Coordinates	-29.19555, -51.18972
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	SBCX
IATA code	CXJ
FAA code	n/a

Communication

Hugo Cantergiani CAXIAS RDO

131.600

Runway info

Runway 15 / 33
	length	1678m (5505ft)
	bearing	132° / 312°
	width	30m (98ft)
	surface	asphalt
	blast zone	255m (837ft) / 52m (171ft)

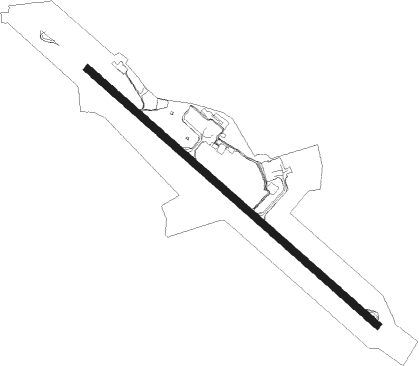

Airport layout

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
CXS	DO SUL VOR/DME	0.1	156°	112.30
TQA	DME	35.5	139°	112.90
COA	CANOAS (PORTO ALEGRE) VOR/DME	45.3	177°	113.60
POR	PORTO ALEGRE VOR/DME	48	178°	114
PAG	PORTO ALEGRE NDB	48.2	179°	330
TQI	DME	48.9	227°	114.50
FIG	FIGUEIRAS (PORTO ALEGRE) VOR/DME	49.4	165°	114.70

Departure and arrival routes

Transition altitude

6000ft

SID end points		distance	outbound heading
RW15
	BURP1C	40mi	139°
	OMNI	17mi	195°
	BURP1B	52mi	293°
RW33
	TIVT1D	72mi	18°
	VAGA1D	126mi	67°
	ESOM1D	40mi	139°
	OMNI	17mi	195°
	ESOM1B	52mi	293°

STAR starting points		distance	inbound heading
RW15
	VUKM1C	52.1	241°
RW33
	VUKM1D	52.1	241°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW15-Y	CX207 (194°)	CX207 6000ft CX208 (6mi, 211°) 4500ft
	RNAV	CX208 4500ft CX209 (5mi, 211°) 4160ft CX211 (3mi, 171°) 3158ft SBCX (2mi, 132°) 2522ft CX007 (16mi, 132°) 6000ft CX007 (turn) 6000ft
RW15-Z	CX001 (158°)	CX001 6000ft CX004 (6mi, 209°) 4200ft
RW15-Z	CX002 (132°)	CX002 6000ft CX004 (5mi, 132°) 4200ft
RW15-Z	IRILU (109°)	IRILU 6000ft CX004 (6mi, 69°) 4200ft
	RNAV	CX004 4200ft ESOMU (5mi, 132°) 4110ft CX005 (3mi, 132°) 3100ft SBCX (2mi, 132°) 2522ft (3413mi, 60°) 3500ft CX001 (3413mi, 241°) 6000ft CX001 (turn) 6000ft
RW33-Y	CX201 (254°)	CX201 6000ft CX202 (6mi, 236°) 4500ft
	RNAV	CX202 4500ft CX203 (5mi, 236°) 4290ft CX204 (3mi, 274°) 3137ft SBCX (3mi, 312°) 2501ft CX002 (15mi, 312°) 6000ft CX002 (turn) 6000ft
RW33-Z	CX007 (312°)	CX007 6000ft CX012 (5mi, 312°) 5000ft
RW33-Z	CX011 (289°)	CX011 6000ft CX012 (6mi, 249°) 5000ft
RW33-Z	DOMPA (337°)	DOMPA 6000ft CX012 (6mi, 29°) 5000ft
	RNAV	CX012 5000ft BURPI (5mi, 312°) 4090ft CX204 (3mi, 312°) 3100ft SBCX (3mi, 312°) 2501ft (3413mi, 60°) 4000ft CX011 (3403mi, 240°) 6000ft CX011 (turn) 6000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
