Airports for X-Plane

Fortaleza - Fortaleza Pinto Martins Intl

Airport details

CountryBrazil
StateCeará
RegionSB
AirspaceRecife Ctr
MunicipalityFortaleza
Elevation82ft (25m)
TimezoneGMT -3
Coordinates-3.77583, -38.53222
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBFZ
IATA codeFOR
FAA coden/a

Communication

Fortaleza Pinto Martins Intl ATIS127.700
Fortaleza Pinto Martins Intl Ground Control121.950
Fortaleza Pinto Martins Intl FORTALEZA Tower118.500
Fortaleza Pinto Martins Intl FORTALEZA Tower129.000
Fortaleza Pinto Martins Intl FORTALEZA Approach134.550
Fortaleza Pinto Martins Intl FORTALEZA Approach119.200
Fortaleza Pinto Martins Intl FORTALEZA Approach133.000

Approach frequencies

ILS-cat-IRW13109.318.00mi
3° GSRW13109.318.00mi
Nearby Points of Interest:
Casa de Juvenal Galeno
-
Cine-Teatro São Luiz
-
Palácio da Luz
-
Praça General Tibúrcio
-
Praça dos Mártires
-
Santa Casa de Misericórdia de Fortaleza
-
Museu da Imagem e do Som do Ceará
-
Casa de José de Alencar

Runway info

Runway 13 / 31
 length2553m (8376ft)
 bearing105° / 285°
 width45m (148ft)
 surfaceasphalt
 blast zone195m (640ft) / 135m (443ft)

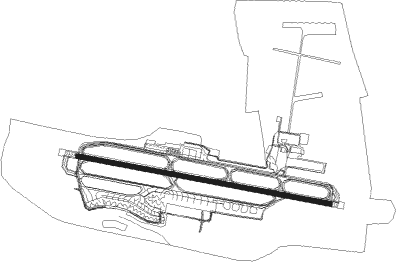

Airport layout


Taxiway locations

 A  B  C  D  E  F  G  H
 I  J  K  L  M  N  P  Q
 RAMP
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
FLZFORTALEZA VOR/DME0.9283°114.10

Departure and arrival routes

Transition altitude5000ft
Transition level45ft
SID end pointsdistanceoutbound heading
RW13
 BOBA1A, BOBA1B39mi123°
 DIANA, KUGUS39mi141°
 EGBOL, FLZ1B40mi178°
 LOGI1A60mi179°
 IRUR1B, IRUR1A71mi253°
 FLZ1D41mi254°
 ISUP1A122mi282°
RW31
 BOBA1B, BOBA1A39mi123°
 DIAN1A, DIANA, KUGUS39mi141°
 EGBOL, FLZ1C40mi178°
 PRAX1B60mi179°
 EDVA1B168mi195°
 ABUC1B61mi217°
 SISA1A71mi253°
 ISTO1A41mi254°
 ESAV1A55mi283°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13FZ004 (105°)FZ004 5000ft
FZ001 (6mi, 105°) 3200ft
RW13FZ006 (129°)FZ006 5000ft
FZ001 (6mi, 175°) 3200ft
RW13FZ007 (81°)FZ007 5000ft
FZ001 (6mi, 35°) 3200ft
 RNAVFZ001 3200ft
FZ002 (5mi, 105°) 1720ft
FZ008 (3mi, 105°) 830ft
SBFZ (3mi, 104°) 132ft
FZ381 (19mi, 105°) 5000ft
FZ381 (turn) 5000ft
RW31FZ379 (306°)FZ379 5000ft
FZ383 (6mi, 355°) 3200ft
RW31FZ381 (285°)FZ381 5000ft
FZ383 (6mi, 285°) 3200ft
RW31FZ382 (264°)FZ382 5000ft
FZ383 (6mi, 215°) 3200ft
 RNAVFZ383 3200ft
FZ384 (6mi, 285°) 2020ft
SBFZ (7mi, 285°) 115ft
FZ374 (19mi, 285°) 5000ft
FZ374 (turn) 5000ft
