Airports for X-Plane

Rio De Janeiro - Rio De Janeiro - Galeão Intl

Airport details

CountryBrazil
StateRio de Janeiro
RegionSB
AirspaceCuritiba Ctr
Elevation22ft (7m)
TimezoneGMT -3
Coordinates-22.81000, -43.25056
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBGL
IATA codeGIG
FAA coden/a

Communication

Rio de Janeiro - Galeão Intl ATIS127.600
Rio de Janeiro - Galeão Intl Clearance DEL121.000
Rio de Janeiro - Galeão Intl Ground Control121.650
Rio de Janeiro - Galeão Intl Tower118.000
Rio de Janeiro - Galeão Intl Tower118.200
Rio de Janeiro - Galeão Intl Approach120.550
Rio de Janeiro - Galeão Intl Approach128.900
Rio de Janeiro - Galeão Intl Approach119.000
Rio de Janeiro - Galeão Intl Approach129.200
Rio de Janeiro - Galeão Intl Approach119.350
Rio de Janeiro - Galeão Intl Departure119.350
Rio de Janeiro - Galeão Intl Departure120.550
Rio de Janeiro - Galeão Intl Departure128.900
Rio de Janeiro - Galeão Intl Departure119.000
Rio de Janeiro - Galeão Intl Departure129.200

Approach frequencies

ILS-cat-IIRW10109.318.00mi
ILS-cat-IRW15110.518.00mi
ILS-cat-IRW28111.518.00mi
3° GSRW15110.518.00mi
3° GSRW10109.318.00mi
2.9° GSRW28111.518.00mi
Nearby Points of Interest:
Pedregulho Housing Complex
-
Fortim de Caetano Madeira
-
Casa da Marquesa de Santos
-
Fazenda de São Bento
-
Maracanã Village
-
Pedra do Sal
-
Fortaleza de Nossa Senhora da Conceição
-
Palácio Episcopal (Rio de Janeiro)
-
Palácio Duque de Caxias
-
Palace of Itamaraty
-
Fortaleza de São José da Ilha das Cobras
-
Avenida Rio Branco
-
Casa Cavé
-
Clube Naval
-
Municipal Chamber of Rio de Janeiro
-
Ladeira da Misericórdia
-
Fort of Santiago
-
Bishop’s House
-
Santa Teresa Tram
-
Gustavo Capanema Palace
-
Automóvel Clube do Brasil
-
Brazilian Academy of Letters
-
Monumento a Marechal Deodoro da Fonseca
-
Museu da Imagem e do Som do Rio de Janeiro
-
Rua do Catete

Runway info

Runway 10 / 28
 length4001m (13127ft)
 bearing76° / 256°
 width50m (164ft)
 surfaceconcrete
Runway 15 / 33
 length3189m (10463ft)
 bearing123° / 303°
 width50m (164ft)
 surfaceasphalt

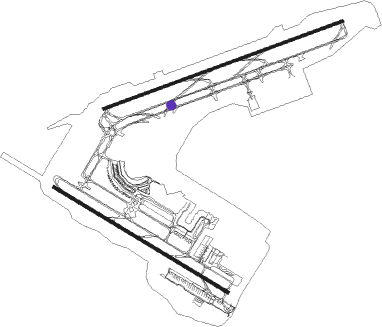

Airport layout - taxiway location T


Taxiway locations

 A  AA  B  BB  C  CC  D  DD
 E  F  G  H  J  K  L  L1
 L2  L3  L4  L5  M  N  O  P
 Q  R  S  T  U  V  W  X
 Z
Parking locations

 Cargo  FAB  Gate  Stand  TAP

Nearby beacons

codeidentifierdistbearingfrequency
CXIGALEAO (RIO DE JANEIRO) VOR/DME0.6233°112.30
YLAILHA (RIO DE JANEIRO) NDB4.774°330
CAXCAXIAS (RIO DE JANEIRO) NDB5.5298°400
PPPAIOL (RIO DE JANEIRO) NDB5.9125°415
NOANOVA (RIO DE JANEIRO TMA) NDB13.8292°215
IHRASA (RIO DE JANEIRO TMA) NDB16.3158°315
MIAMARICA VOR/DME22114°114.80
PCXPORTO (RIO DE JANEIRO TMA VOR/DME22.576°114.60
SCRSANTA CRUZ (RIO) VOR/DME27.6254°113.60
PAIPIRAI VOR/DME39301°115

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW10
 PCX2A, PCX1A125mi42°
 TIVR1A66mi232°
 OMNI12mi257°
 EVRA1A, UGRO1A54mi273°
RW15
 PCX2A, PCX1A125mi42°
 TIVR1B66mi232°
 OMNI12mi257°
 EVRA1A, UGRO1A54mi273°
RW28
 ALMO1A125mi42°
 ORIR1A57mi77°
 OMNI12mi257°
RW33
 ALMO1B125mi42°
 ORIR1A57mi77°
 OMNI12mi257°

STAR starting pointsdistanceinbound heading
RW10
 PABE1A41.081°
 MEBG1A34.7125°
 UTBO2A22.9129°
RW15
 PABE1B41.081°
 MEBG1A34.7125°
 UTBO2A22.9129°
RW28
 DIVR1A27.2254°
RW33
 PABE3C41.081°
 IVTA2A28.5133°
 DIVR1A27.2254°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10-YALMOS (112°)ALMOS 6300ft
GL009 (6mi, 164°) 3700ft
GAVUG (2mi, 164°) 3500ft
RW10-YDONGI (77°)DONGI 6300ft
GAVUG (8mi, 76°) 3500ft
 RNAVGAVUG 3500ft
GL008 (2mi, 76°) 2860ft
GL167 (4mi, 76°) 1660ft
GL011 (3mi, 76°) 560ft
SBGL (2mi, 89°) 66ft
(2872mi, 62°) 2000ft
PCX (2850mi, 242°) 7000ft
PCX (turn) 7000ft
RW15-ZEGDUT (97°)EGDUT 6300ft
RJ001 (5mi, 68°) 4700ft
EGBAT (4mi, 68°) 3000ft
RW15-ZUTBOM (122°)UTBOM 6300ft
DOOPK (3mi, 124°) 5000ft
EGBAT (5mi, 124°) 3000ft
 RNAVEGBAT 3000ft
GL022 (4mi, 124°) 2000ft
GL023 (4mi, 124°) 736ft
GL028 (1mi, 124°) 387ft
UTKUP (9mi, 96°)
GL079 (8mi, 92°)
SISER (7mi, 92°) 4000ft
SISER (turn) 4000ft
RW28-YKETUX (254°)KETUX 5000ft
LIXUG (6mi, 255°) 2800ft
RW28-YSEDBU (230°)SEDBU 5000ft
LIXUG (6mi, 163°) 2800ft
 RNAVLIXUG 2800ft
VUBOP (5mi, 256°) 1670ft
GL040 (3mi, 256°) 685ft
SBGL (4mi, 248°) 78ft
(2872mi, 62°) 600ft
GL086 (2859mi, 242°) 4000ft
GL087 (6mi, 75°)
KETUX (8mi, 163°) 5000ft
KETUX (turn) 5000ft
RW28-ZKETUX (254°)KETUX 5000ft
LIXUG (6mi, 255°) 2800ft
RW28-ZSEDBU (230°)SEDBU 5000ft
LIXUG (6mi, 163°) 2800ft
 RNAVLIXUG 2800ft
VUBOP (5mi, 256°) 1680ft
GL092 (3mi, 256°) 628ft
GL086 (11mi, 34°) 4000ft
GL087 (6mi, 75°)
KETUX (8mi, 163°) 5000ft
KETUX (turn) 5000ft
RW33-AKETUX (254°)KETUX 5000ft
LIXUG (6mi, 255°) 2800ft
RW33-ASEDBU (230°)SEDBU 5000ft
LIXUG (6mi, 163°) 2800ft
 RNAVLIXUG 2800ft
GL088 (5mi, 239°) 2240ft
GL089 (5mi, 239°) 640ft
GL091 (7mi, 299°) 1800ft
GL086 (16mi, 55°) 4000ft
GL087 (6mi, 75°)
KETUX (8mi, 163°) 5000ft
KETUX (turn) 5000ft
RW33-WVURUK (255°)VURUK 4200ft
GL018 (7mi, 194°) 2000ft
 RNAVGL018 2000ft
GL020 (3mi, 275°) 1518ft
GL019 (2mi, 275°) 1200ft
GL025 (2mi, 303°) 719ft
SBGL (3mi, 313°) 62ft
(2872mi, 62°) 1000ft
ENSAR (2885mi, 242°) 4100ft
IVTAL (15mi, 54°) 6000ft
IVTAL (turn) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DIVR1ADIVROVHFright98 (278)°1.0min timedICAO rules
DIVR1BDIVROVHFright98 (278)°1.0min timedICAO rules
IVTA2AIVREVVHFleft357 (177)°1.0min timedICAO rules
IVTA2AVAKUBVHFleft357 (177)°1.0min timedICAO rules
PABE1AAKNUBVHFright230 (50)°1.0min timedICAO rules
PABE1AKABUKVHFright206 (26)°1.0min timedICAO rules
PABE1AKOLBIVHFright283 (103)°1.0min timedICAO rules
PABE1APABEBVHFleft267 (87)°1.0min timedICAO rules
PABE1AVUREPVHFleft267 (87)°1.0min timedICAO rules
PABE1BAKNUBVHFright230 (50)°1.0min timedICAO rules
PABE1BKABUKVHFright206 (26)°1.0min timedICAO rules
PABE1BKOLBIVHFright283 (103)°1.0min timedICAO rules
PABE1BPABEBVHFleft267 (87)°1.0min timedICAO rules
PABE1BVUREPVHFleft267 (87)°1.0min timedICAO rules
PABE1DAKNUBVHFright230 (50)°1.0min timedICAO rules
PABE1DKABUKVHFright206 (26)°1.0min timedICAO rules
PABE1DKOLBIVHFright283 (103)°1.0min timedICAO rules
PABE1DVUREPVHFleft267 (87)°1.0min timedICAO rules
PABE3CAKNUBVHFright230 (50)°1.0min timedICAO rules
PABE3CKABUKVHFright206 (26)°1.0min timedICAO rules
PABE3CKOLBIVHFright283 (103)°1.0min timedICAO rules
PABE3CPABEBVHFleft267 (87)°1.0min timedICAO rules
PABE3CVUREPVHFleft267 (87)°1.0min timedICAO rules
UTBO2ADOKTOVHFleft53 (233)°1.0min timedICAO rules
UTBO2AIVREVVHFleft357 (177)°1.0min timedICAO rules
UTBO2ASURNAVHFright99 (279)°1.0min timedICAO rules
UTBO2AUTNUGVHFleft357 (177)°1.0min timedICAO rules
VAKU2AIVREVVHFleft357 (177)°1.0min timedICAO rules
VAKU2AVAKUBVHFleft357 (177)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
