Airports for X-Plane

São Paulo - Sao Paulo - Guarulhos

Airport details

CountryBrazil
StateSão Paulo
RegionSB
AirspaceCuritiba Ctr
MunicipalityGuarulhos
Elevation2458ft (749m)
TimezoneGMT -3
Coordinates-23.43556, -46.47306
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBGR
IATA codeGRU
FAA coden/a

Communication

Sao Paulo - Guarulhos ATIS127.750
Sao Paulo - Guarulhos Clearance DEL121.000
Sao Paulo - Guarulhos Ground Control121.700
Sao Paulo - Guarulhos Ground Control126.900
Sao Paulo - Guarulhos Tower135.200
Sao Paulo - Guarulhos Tower118.400
Sao Paulo - Guarulhos Tower132.750
Sao Paulo - Guarulhos SAO PAULO Approach119.800
Sao Paulo - Guarulhos SAO PAULO Approach120.050
Sao Paulo - Guarulhos SAO PAULO Approach129.500

Approach frequencies

ILS-cat-IIIRW09R111.718.00mi
ILS-cat-IIRW09L110.718.00mi
ILS-cat-IRW27L111.118.00mi
ILS-cat-IRW27R111.918.00mi
3° GSRW27L111.118.00mi
3° GSRW09R111.718.00mi
3° GSRW27R111.918.00mi
3° GSRW09L110.718.00mi
Nearby Points of Interest:
Site of the Candinha
-
House of Sítio Mirim
-
Capistrano de Abreu School
-
Casa Amarela
-
Sanatorium Padre Bento
-
Hospital Geriátrico e de Convalescentes D. Pedro II
-
Cantareira State Park
-
Igreja Matriz de Nossa Senhora da Penha de França
-
Igreja de Nossa Senhora da Ajuda
-
House of Tatuapé
-
Albert Löfgren State Park
-
Escola Estadual Amadeu Amaral
-
Edifícios industriais da Rua Borges de Figueiredo
-
Moinho Matarazzo
-
Immigrant Inn
-
Monument to the Victims of the Armenian Genocide
-
Vila Economizadora
-
Primeira Escola Profissional Masculina
-
Quartel da Luz
-
Grandes Moinhos Minetti Gamba
-
Set of Old Installations of the Polytechnic School
-
Colégio de Santa Inês
-
Chácara Lane
-
Encounter and mismatch
-
Casa das Retortas

Runway info

Runway 09L / 27R
 length3698m (12133ft)
 bearing75° / 255°
 width45m (148ft)
 surfaceasphalt
 displ threshold91m (299ft) / 61m (200ft)
 blast zone60m (197ft) / 64m (210ft)
Runway 09R / 27L
 length2996m (9829ft)
 bearing75° / 255°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

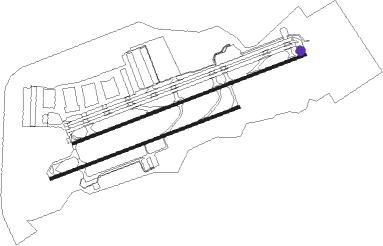

Airport layout - taxiway location Q


Taxiway locations

 A  B  DD  E  F  FF  G  H
 I  J  L  N  O  P  Q  S
 T  U
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
BCOBONSUCESSO (SAO PAULO) VOR/DME5.172°116
IGTUCA (SAO PAULO) NDB5.7255°410
CGOCONGONHAS (SAO PAULO) VOR/DME15.2223°116.90
DADDIADEMA (SAO PAULO) NDB17.6205°200
STNSANTANA (SAO PAULO TMA) VOR/DME25263°114.30
RDEREDE (SAO PAULO) VOR/DME27.5187°116.70
BGCBRAGANCA (BRAGANCA PAULIS VOR/DME29.5349°116.20
EMBEMBUGUACU (SAO PAULO) NDB31.2220°525
SCPSAO JOSE (SAO JOSE DOS CA VOR/DME35.972°115.40
CPNCAMPINAS VOR/DME44.3303°112
IKBENTO (CAMPINAS) NDB49.5303°370
SCBSOROCABA (SAO PAULO TMA) VOR/DME50265°115.20
TBETAUBATE NDB57.768°430
TAUTAUBATE VOR/DME58.167°112.60

Departure and arrival routes

Transition altitude8000ft
SID end pointsdistanceoutbound heading
RW09 (ALL)
 EDLU1A43mi42°
 OMNI11mi75°
 UKBE1D63mi326°
RW09L
 AMVU1A43mi42°
 ZORZ1A62mi219°
RW09R
 AMVU1A43mi42°
 ZORZ2C62mi219°
RW27 (ALL)
 OMNI11mi75°
 UKBE1E63mi326°
RW27L
 VUNV2A43mi42°
 ZORZ1B62mi219°
RW27R
 VUNV2A43mi42°
 ZORZ1B62mi219°

STAR starting pointsdistanceinbound heading
RW09 (ALL)
 EVRA1D44.9106°
 EVRA1A14.2161°
 SANP1A, VUNO1A68.6193°
 EDMU1A61.7257°
RW27 (ALL)
 EVRA1B, EVRA1C44.9106°
 VUNO1C, VUNO1B68.6193°
 EDMU1B61.7257°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09LSITAVO (301°)ITAVO 8000ft
GR034 (6mi, 327°) 7000ft
GR031 (5mi, 286°) 5200ft
RW09LSSANPA (161°)SANPA 8000ft
GR037 (4mi, 151°) 7000ft
GR031 (6mi, 201°) 5200ft
 RNAVGR031 5200ft
GR029 (2mi, 219°) 4800ft
GR028 (4mi, 129°) 3154ft
SBGR (2mi, 80°) 2495ft
GR032 (5mi, 72°) 6000ft
GR044 (7mi, 6°)
GR047 (4mi, 296°)
SANPA (7mi, 298°)
SANPA (turn) 8000ft
RW09LTLOMEN (92°)LOMEN 6000ft
GR202 (3mi, 122°) 5100ft
GR204 (2mi, 122°) 4500ft
 RNAVGR204 4500ft
VUGAT (3mi, 75°) 4080ft
GR206 (3mi, 75°) 3110ft
SBGR (3mi, 80°) 2495ft
(3052mi, 63°) 4500ft
LOMEN (3063mi, 243°) 6000ft
LOMEN (turn) 6000ft
RW09RXLOMEN (92°)LOMEN 6000ft
GR202 (3mi, 122°) 5100ft
LUTPO (3mi, 122°) 4500ft
 RNAVLUTPO 4500ft
OPSER (3mi, 75°) 4100ft
GR213 (2mi, 75°) 3301ft
SBGR (3mi, 75°) 2501ft
(3052mi, 63°) 3300ft
ISIMU (3046mi, 243°) 6000ft
ISIMU (turn) 6000ft
RW09RYLOMEN (92°)LOMEN 6000ft
GR202 (3mi, 122°) 5100ft
LUTPO (3mi, 122°) 4500ft
 RNAVLUTPO 4500ft
OPSER (3mi, 75°) 4100ft
GR308 (3mi, 75°) 3259ft
SBGR (3mi, 75°) 2501ft
(3052mi, 63°) 3300ft
ISIMU (3046mi, 243°) 6000ft
ISIMU (turn) 6000ft
RW27LXUTKUG (240°)UTKUG 6000ft
ETIKO (6mi, 207°) 4500ft
 RNAVETIKO 4500ft
VUSNI (5mi, 255°) 4090ft
GR093 (2mi, 255°) 3451ft
SBGR (4mi, 254°) 2496ft
(3052mi, 63°) 3400ft
ISIMU (3046mi, 243°) 6000ft
ISIMU (turn) 6000ft
RW27LZUTKUG (240°)UTKUG 6000ft
ETIKO (6mi, 207°) 4500ft
 RNAVETIKO 4500ft
VUSNI (5mi, 255°) 4090ft
SBGR (6mi, 255°) 2496ft
(3052mi, 63°) 3400ft
ISIMU (3046mi, 243°) 6000ft
ISIMU (turn) 6000ft
RW27RVUTKUG (240°)UTKUG 6000ft
EDPAM (5mi, 202°) 4500ft
 RNAVEDPAM 4500ft
PUGTA (5mi, 255°) 4090ft
GR738 (2mi, 255°) 3305ft
SBGR (4mi, 252°) 2491ft
(3052mi, 63°) 4500ft
UTKUG (3037mi, 243°) 6000ft
UTKUG (turn) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
EDMU1AEDMUSVHFright99 (279)°1.0min timedICAO rules
EDMU1APOLYPVHFright95 (275)°1.0min timedICAO rules
EDMU1BEDMUSVHFright99 (279)°1.0min timedICAO rules
EDMU1BPOLYPVHFright95 (275)°1.0min timedICAO rules
EVRA1ABUXUKVHFleft229 (49)°1.0min timedICAO rules
EVRA1AGR246VHFright326 (146)°1.0min timedICAO rules
EVRA1AGR248VHFleft326 (146)°1.0min timedICAO rules
EVRA1AGR251VHFright249 (69)°1.0min timedICAO rules
EVRA1AGR258VHFleft249 (69)°1.0min timedICAO rules
EVRA1ASANPAVHFright22 (202)°1.0min timedICAO rules
EVRA1BBUXUKVHFleft229 (49)°1.0min timedICAO rules
EVRA1BGR246VHFright326 (146)°1.0min timedICAO rules
EVRA1BGR248VHFleft326 (146)°1.0min timedICAO rules
EVRA1BGR251VHFright249 (69)°1.0min timedICAO rules
EVRA1BGR258VHFleft249 (69)°1.0min timedICAO rules
EVRA1BSANPAVHFright22 (202)°1.0min timedICAO rules
EVRA1CBUXUKVHFleft229 (49)°1.0min timedICAO rules
EVRA1CGR246VHFright326 (146)°1.0min timedICAO rules
EVRA1CGR248VHFleft326 (146)°1.0min timedICAO rules
EVRA1CGR251VHFright249 (69)°1.0min timedICAO rules
EVRA1CGR258VHFleft249 (69)°1.0min timedICAO rules
EVRA1CSANPAVHFright22 (202)°1.0min timedICAO rules
EVRA1DBUXUKVHFleft229 (49)°1.0min timedICAO rules
EVRA1DGR246VHFright326 (146)°1.0min timedICAO rules
EVRA1DGR248VHFleft326 (146)°1.0min timedICAO rules
EVRA1DGR251VHFright249 (69)°1.0min timedICAO rules
EVRA1DGR258VHFleft249 (69)°1.0min timedICAO rules
EVRA1DSANPAVHFright22 (202)°1.0min timedICAO rules
SANP1AGR262VHFleft30 (210)°1.0min timedICAO rules
SANP1ASANPAVHFright22 (202)°1.0min timedICAO rules
SANP1AVUNOXVHFleft15 (195)°1.0min timedICAO rules
VUNO1AGR262VHFleft30 (210)°1.0min timedICAO rules
VUNO1ASANPAVHFright22 (202)°1.0min timedICAO rules
VUNO1AVUNOXVHFleft15 (195)°1.0min timedICAO rules
VUNO1BGR262VHFleft30 (210)°1.0min timedICAO rules
VUNO1BSANPAVHFright22 (202)°1.0min timedICAO rules
VUNO1BVUNOXVHFleft15 (195)°1.0min timedICAO rules
VUNO1CGR262VHFleft30 (210)°1.0min timedICAO rules
VUNO1CSANPAVHFright22 (202)°1.0min timedICAO rules
VUNO1CVUNOXVHFleft15 (195)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
