Airports for X-Plane

Lages

Airport details

CountryBrazil
StateSanta Catarina
RegionSB
AirspaceCuritiba Ctr
MunicipalityLages
Elevation3063ft (934m)
TimezoneGMT -3
Coordinates-27.78278, -50.28056
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBLJ
IATA codeLAJ
FAA coden/a

Communication

Lages RDO132.150

Runway info

Runway 17 / 35
 length1531m (5023ft)
 bearing145° / 325°
 width30m (98ft)
 surfaceasphalt
 blast zone3m (10ft) / 0m (0ft)

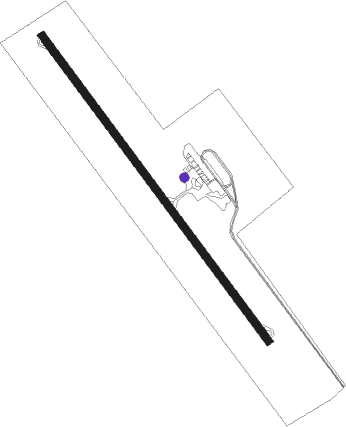

Airport layout - parking location GA1


Parking locations

 GA1  GA2  Hangar  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
LJSLAGES NDB0.285°240

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW17
 KETU1A20mi27°
 EGIV1A42mi73°
 OMNI81mi199°
 GAXI1A30mi201°
 PENS1A33mi244°
 KUGI1A22mi336°
RW35
 KETU1B20mi27°
 EGIV1B42mi73°
 OMNI81mi199°
 GAXI1B30mi201°
 PENS1B33mi244°
 KUGI1B22mi336°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17LJ009 (177°)LJ009 7000ft
LJ013 (6mi, 241°) 5600ft
RW17LJ011 (145°)LJ011 7000ft
LJ013 (6mi, 145°) 5600ft
RW17LJ012 (115°)LJ012 7000ft
LJ013 (6mi, 61°) 5600ft
 RNAVLJ013 5600ft
LJ014 (5mi, 145°) 4670ft
LJ016 (3mi, 145°) 3640ft
SBLJ (2mi, 144°) 3070ft
(3338mi, 61°) 5000ft
LJ009 (3334mi, 241°) 7000ft
LJ009 (turn) 7000ft
RW35LJ001 (325°)LJ001 7000ft
LJ002 (5mi, 325°) 5300ft
RW35LJ006 (295°)LJ006 7000ft
LJ002 (6mi, 241°) 5300ft
RW35LJ007 (358°)LJ007 7000ft
LJ002 (6mi, 61°) 5300ft
 RNAVLJ002 5300ft
LJ003 (3mi, 325°) 4945ft
LJ004 (2mi, 325°) 4710ft
LJ008 (2mi, 325°) 4068ft
SBLJ (3mi, 325°) 3113ft
(3338mi, 61°) 4000ft
LJ007 (3341mi, 241°) 7000ft
LJ007 (turn) 7000ft
