Maceió - Zumbi Dos Palmares

Airport details

Country	Brazil
State	Alagoas
Region	SB
Airspace	Recife Ctr
Municipality	Rio Largo
Elevation	387ft (118m)
Timezone	GMT -3
Coordinates	-9.51065, -35.79243
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	SBMO
IATA code	MCZ
FAA code	n/a

Communication

Zumbi Dos Palmares MACEIO Tower	118.250
Zumbi Dos Palmares MACEIO Approach	119.250

Approach frequencies

ILS-cat-I	RW12	109.7	18.00mi
3° GS	RW12	109.7	18.00mi

Nearby Points of Interest:

Museu de Arte Sacra do Estado de Alagoas

Casa natal do Marechal Deodoro da Fonseca

Serra da Barriga

Runway info

Runway 12 / 30
	length	2602m (8537ft)
	bearing	101° / 281°
	width	45m (148ft)
	surface	asphalt
	displ threshold	0m (0ft) / 113m (371ft)
	blast zone	59m (194ft) / 76m (249ft)

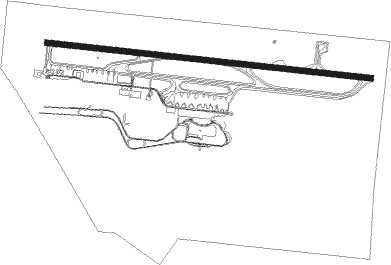

Airport layout

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
MCE	ZUMBI (MACEIO) VOR/DME	0.3	82°	115.10

Departure and arrival routes

Transition altitude

4000ft

SID end points		distance	outbound heading
RW12
	ESBI1A, UKAR1C	48mi	32°
	DEND1C	58mi	221°
	IVSO1C	40mi	247°
	ENLU1C	40mi	337°
RW30
	UKAR1A, UKAR1B	48mi	32°
	KIMA1A	60mi	208°
	DEND1B, DEND1A	58mi	221°
	IVSO1A, IVSO1B	40mi	247°
	ENLU1B, ENLU1A	40mi	337°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW12	MO006 (101°)	MO006 4000ft MO004 (5mi, 101°) 2100ft
RW12	MO007 (78°)	MO007 4000ft MO004 (6mi, 31°) 2100ft
RW12	MO008 (123°)	MO008 4000ft MO004 (6mi, 171°) 2100ft
	RNAV	MO004 2100ft ROMOD (6mi, 101°) 2040ft SBMO (6mi, 101°) 438ft (2214mi, 75°) 2000ft MO008 (2225mi, 255°) 4000ft MO008 (turn) 4000ft
RW30	MO013 (281°)	MO013 4000ft MO011 (6mi, 281°) 2500ft
RW30	MO014 (304°)	MO014 4000ft MO011 (6mi, 351°) 2500ft
RW30	MO016 (257°)	MO016 4000ft MO011 (6mi, 211°) 2500ft
	RNAV	MO011 2500ft MO009 (5mi, 281°) 2030ft SBMO (6mi, 281°) 417ft (2214mi, 75°) 2000ft MO016 (2200mi, 255°) 4000ft MO016 (turn) 4000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
