Santo Ângelo - Santo Angelo

Airport details

Country	Brazil
State	Rio Grande do Sul
Region	SB
Airspace	Curitiba Ctr
Municipality	Santo Ângelo
Elevation	1056ft (322m)
Timezone	GMT -3
Coordinates	-28.28222, -54.16889
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	SBNM
IATA code	GEL
FAA code	n/a

Communication

Santo Angelo RDO

131.650

Runway info

Runway 11 / 29
	length	1625m (5331ft)
	bearing	100° / 280°
	width	31m (102ft)
	surface	asphalt

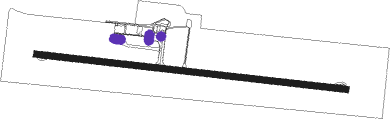

Airport layout - parking location Gate

Taxiway locations

Parking locations

Gate

Nearby beacons

code	identifier	dist	bearing	frequency
SAN	SANTO ANGELO NDB	0.3	328°	280
CAT	CRUZ ALTA NDB	38.2	130°	335

Departure and arrival routes

Transition altitude

4000ft

SID end points		distance	outbound heading
RW12
	KEXU1A	55mi	56°
	MADK1A	55mi	89°
	OMNI	77mi	89°
	MOXA1A	55mi	114°
	ENLO1A	55mi	159°
	KEXI1A	55mi	233°
RW30
	KEXU1B	55mi	56°
	MADK1B	55mi	89°
	OMNI	77mi	89°
	MOXA1B	55mi	114°
	ENLO1B	55mi	159°
	KEXI1B	55mi	233°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW12	NM001 (123°)	NM001 4000ft NM003 (5mi, 192°) 2700ft
RW12	NM004 (100°)	NM004 4000ft NM003 (5mi, 100°) 2700ft
RW12	NM006 (77°)	NM006 4000ft NM003 (5mi, 12°) 2700ft
	RNAV	NM003 2700ft NM002 (5mi, 100°) 2660ft NM013 (3mi, 100°) 1735ft SBNM (3mi, 99°) 1071ft (3541mi, 62°) 2000ft NM001 (3548mi, 243°) 4000ft NM001 (turn) 4000ft
RW30	NM007 (299°)	NM007 4000ft NM012 (5mi, 350°) 2700ft
RW30	NM008 (261°)	NM008 4000ft NM012 (5mi, 214°) 2700ft
	RNAV	NM012 2700ft NM011 (5mi, 280°) 2680ft SBNM (5mi, 280°) 1092ft (3541mi, 62°) 2100ft NM008 (3529mi, 242°) 4000ft NM008 (turn)
