Airports for X-Plane

Petrolina - Senador Nilo Coelho

Airport details

CountryBrazil
StatePernambuco
RegionSB
AirspaceRecife Ctr
MunicipalityPetrolina
Elevation1263ft (385m)
TimezoneGMT -3
Coordinates-9.36750, -40.56361
Magnetic var
Typeland
Available sinceX-Plane v11.30
ICAO codeSBPL
IATA codePNZ
FAA coden/a

Communication

SENADOR NILO COELHO RDO125.700

Runway info

Runway 13 / 31
 length3254m (10676ft)
 bearing109° / 289°
 width45m (148ft)
 surfaceasphalt
 displ threshold492m (1614ft) / 0m (0ft)
 blast zone60m (197ft) / 60m (197ft)

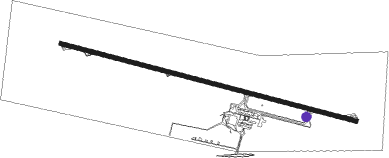

Airport layout - taxiway location C


Taxiway locations

 A  C

Nearby beacons

codeidentifierdistbearingfrequency
PTLPETROLINA VOR/DME0.226°112.10

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW13
 OMNI230mi148°
RW31
 OMNI230mi148°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13PL011 (138°)PL011 5000ft
PL024 (6mi, 199°) 3600ft
RW13PL012 (81°)PL012 5000ft
PL024 (6mi, 19°) 3600ft
RW13PL021 (110°)PL021 5000ft
PL024 (5mi, 109°) 3600ft
 RNAVPL024 3600ft
PL026 (5mi, 109°) 2900ft
PL027 (3mi, 109°) 1782ft
SBPL (3mi, 113°) 1299ft
(2489mi, 77°) 3000ft
PL011 (2496mi, 257°) 5000ft
PL011 (turn) 5000ft
RW31PL001 (288°)PL001 5000ft
PL006 (5mi, 289°) 3600ft
RW31PL028 (259°)PL028 5000ft
PL006 (6mi, 199°) 3600ft
RW31PL029 (318°)PL029 5000ft
PL006 (6mi, 19°) 3600ft
 RNAVPL006 3600ft
PL004 (5mi, 289°) 2900ft
PTL03 (3mi, 289°) 1950ft
SBPL (2mi, 285°) 1309ft
(2489mi, 77°) 3000ft
PL028 (2477mi, 257°) 5000ft
PL028 (turn) 5000ft
