Airports for X-Plane

Uruguaiana - Rubem Berta

Airport details

CountryBrazil
StateRio Grande do Sul
RegionSB
AirspaceCuritiba Ctr
MunicipalityUruguaiana
Elevation254ft (77m)
TimezoneGMT -3
Coordinates-29.78194, -57.03833
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBUG
IATA codeURG
FAA coden/a

Communication

Rubem Berta URUGUAIANA RDO118.100
Rubem Berta URUGUAIANA RDO125.900
Nearby Points of Interest:
Mission Nuestra Señora de los Tres Reyes de Yapeyú

Runway info

Runway 09 / 27
 length1501m (4925ft)
 bearing86° / 266°
 width30m (98ft)
 surfaceasphalt
 blast zone58m (190ft) / 58m (190ft)
Runway 04 / 22
 length801m (2628ft)
 bearing39° / 219°
 width50m (164ft)
 surfacegrass
 blast zone90m (295ft) / 90m (295ft)

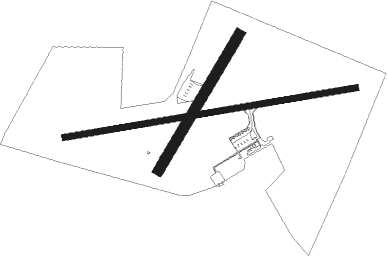

Airport layout


Taxiway locations

 A  B
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
URGURUGUAIANA NDB0.2157°275
LIBPASO DE LOS LIBRES NDB7.7308°250
LPASO DE LOS LIBRES NDB9.1314°325
MCSMONTE CASEROS VOR/DME42.6231°113.90

Departure and arrival routes

Transition altitude3000ft
Transition level30ft
SID end pointsdistanceoutbound heading
RW09
 BLIN2A21mi74°
 ILVE1A82mi74°
RW27
 BLIN2B21mi74°
 ILVE1B82mi74°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW27-ZUG004 (287°)UG004 3000ft
UG003 (6mi, 332°) 2000ft
RW27-ZUG006 (244°)UG006 3000ft
UG003 (6mi, 197°) 2000ft
RW27-ZUG007 (265°)UG007 3000ft
UG003 (6mi, 265°) 2000ft
 RNAVUG003 2000ft
UG001 (5mi, 265°) 1883ft
SDF27 (3mi, 265°) 700ft
SBUG (2mi, 266°) 279ft
UG002 (3mi, 265°)
UG009 (7mi, 146°) 3000ft
UG009 (turn) 3000ft
