Airports for X-Plane

Arica - Chacalluta

Airport details

CountryChile
StateArica and Parinacota Region
RegionSC
AirspaceAntofagasta Ctr
MunicipalityArica
Elevation166ft (51m)
TimezoneGMT -4
Coordinates-18.34861, -70.33861
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSCAR
IATA codeARI
FAA coden/a

Communication

Chacalluta Tower118.500
Chacalluta Ground121.900
Chacalluta Approach119.900
Nearby Points of Interest:
Estación de Pasajeros y Administración de Arica
-
Península del Alacrán
-
Tacna Prefecture
-
Casa Museo Basadre
-
Alameda Bolognesi

Runway info

Runway 02 / 20
 length2179m (7149ft)
 bearing20° / 200°
 width45m (148ft)
 surfaceasphalt

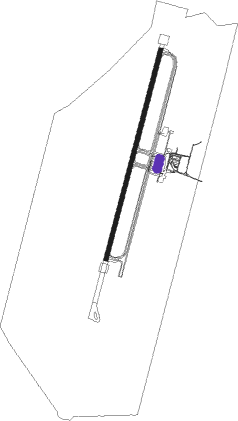

Airport layout - parking location Gate


Taxiway locations

 A
Parking locations

 Gate  Parking

Nearby beacons

codeidentifierdistbearingfrequency
ARIARICA VOR/DME1.3200°116.50
TCATACNA VOR/DME17.812°116.80

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW20
 VAGUR169mi50°
 LOLES142mi51°
 ERIS1J31mi92°
 LOBA2L, LOBA2R, LOBA2K65mi173°
 AZAPA2, PUGO2B, PUGO2R62mi176°

STAR starting pointsdistanceinbound heading
RW02
 REPU2A, REPU2B65.610°
 VAGU2B68.5230°
 ERIS2A30.9272°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02BOLUN (352°)BOLUN 5000ft
SIGOR (6mi, 288°) 3500ft
RW02SIGOR (20°)SIGOR 3500ft
 RNAVSIGOR 3500ft
KOLSO (6mi, 20°) 1800ft
SCAR (6mi, 20°) 173ft
(4287mi, 75°) 570ft
SIGOR (4292mi, 255°) 3500ft
SIGOR (turn) 3500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
REPU2AEDNURVHFleft204 (24)°> 5000ft1.0min timedICAO rules
REPU2BSIGORVHFleft204 (24)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
