Airports for X-Plane

Punta Arenas - Carlos Ibanez Del Campo Intl

Airport details

CountryChile
StateRegion of Magallanes and Chilean Antarct
RegionSC
AirspacePunta Arenas Ctr
MunicipalityPunta Arenas
Elevation139ft (42m)
TimezoneGMT -4
Coordinates-53.00361, -70.85361
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSCCI
IATA codePUQ
FAA coden/a

Communication

Carlos Ibanez del Campo Intl Ground Control121.900
Carlos Ibanez del Campo Intl Tower118.700
Carlos Ibanez del Campo Intl Approach128.100
Carlos Ibanez del Campo Intl Approach123.900
Carlos Ibanez del Campo Intl Departure118.700
Carlos Ibanez del Campo Intl Departure133.000

Approach frequencies

ILS-cat-IRW25109.918.00mi
3° GSRW25109.918.00mi
Nearby Points of Interest:
Gendarmería de Punta Arenas
-
Plaza Muñoz Gamero

Runway info

Runway 07 / 25
 length2787m (9144ft)
 bearing89° / 269°
 width44m (144ft)
 surfaceasphalt
 blast zone167m (548ft) / 239m (784ft)
Runway 12 / 30
 length2397m (7864ft)
 bearing125° / 305°
 width44m (146ft)
 surfaceasphalt
 blast zone58m (190ft) / 59m (194ft)
Runway 01 / 19
 length1676m (5499ft)
 bearing42° / 222°
 width44m (144ft)
 surfaceasphalt
 blast zone0m (0ft) / 58m (190ft)

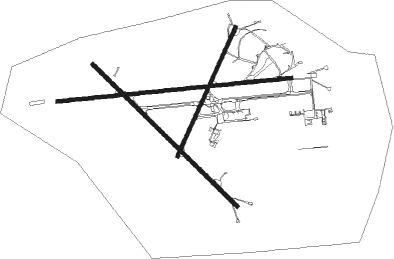

Airport layout


Parking locations

 Apron  Fighter  Hangar  New  Start

Nearby beacons

codeidentifierdistbearingfrequency
NASPUNTA ARENAS VOR/DME0252°114.10
NASPUNTA ARENAS NDB0.5237°270

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW25
 SIRU3A66mi302°
RW30
 SIRU3A66mi302°
 YAGAN170mi308°

STAR starting pointsdistanceinbound heading
RW07
 NEDA3F69.9128°
 MUNE2F62.5156°
 EGOS2F60.4172°
RW12
 NEDA3F69.9128°
 MUNE2F62.5156°
 EGOS2F60.4172°
RW13
 NEDA3F69.9128°
 MUNE2F62.5156°
 EGOS2F60.4172°
RW25
 NEDA3G69.9128°
 NEDA3E25.4134°
 MUNE3G, MUNE2E62.5156°
 EGOS1E60.4172°
RW30
 NEDA3E25.4134°
 MUNE2E62.5156°
 EGOS1E60.4172°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07-YDUBLU (90°)DUBLU 3000ft
RW07-YOREPU (125°)OREPU 4000ft
UGROL (7mi, 190°) 3500ft
DUBLU (5mi, 178°) 3000ft
 RNAVDUBLU 3000ft
UROXA (6mi, 89°) 1400ft
SCCI (5mi, 90°) 190ft
(4722mi, 53°) 540ft
ISAPU (4711mi, 233°) 3000ft
ISAPU (turn) 3000ft
RW07-ZOREPU (125°)OREPU 4000ft
CI103 (7mi, 151°) 2500ft
 RNAVCI103 2500ft
CI071 (3mi, 158°) 2000ft
UROXA (3mi, 115°) 1460ft
SCCI (5mi, 90°) 190ft
(4722mi, 53°) 3000ft
ISAPU (4711mi, 233°) 3000ft
ISAPU (turn) 3000ft
RW12AKTEB (124°)AKTEB 3000ft
RW12OREPU (125°)OREPU 4000ft
AKTEB (5mi, 128°) 3000ft
 RNAVAKTEB 3000ft
CI040 (6mi, 125°) 1400ft
SCCI (5mi, 123°) 189ft
(4722mi, 53°) 540ft
PABIS (4717mi, 233°) 3000ft
PABIS (turn) 3000ft
RW25-YISAPU (269°)ISAPU 3000ft
RW25-YPAMIP (155°)PAMIP 4000ft
PALUN (14mi, 101°) 3500ft
ISAPU (5mi, 178°) 3000ft
 RNAVISAPU 3000ft
VAPIL (6mi, 269°) 1400ft
SCCI (5mi, 268°) 163ft
(4722mi, 53°) 3000ft
DUBLU (4732mi, 233°) 3000ft
DUBLU (turn) 3000ft
RW25-ZPAMIP (155°)PAMIP 4000ft
CI125 (6mi, 110°) 3000ft
 RNAVCI125 3000ft
CI095 (3mi, 110°) 2500ft
CI048 (4mi, 167°) 1700ft
CI029 (2mi, 255°) 1100ft
SCCI (4mi, 268°) 162ft
(4722mi, 53°) 3000ft
DUBLU (4732mi, 233°) 3000ft
DUBLU (turn) 3000ft
RW30-YPABIS (305°)PABIS 3000ft
RW30-YPAMIP (155°)PAMIP 4000ft
SIMIR (20mi, 123°) 3500ft
PABIS (5mi, 242°) 3000ft
 RNAVPABIS 3000ft
SALPO (6mi, 304°) 1400ft
SCCI (5mi, 307°) 163ft
(4722mi, 53°) 600ft
USORI (4727mi, 233°) 3000ft
USORI (turn) 3000ft
RW30-ZPAMIP (155°)PAMIP 4000ft
CI143 (9mi, 122°) 3000ft
 RNAVCI143 3000ft
CI112 (3mi, 121°) 2500ft
CI049 (5mi, 217°) 1700ft
CI030 (2mi, 286°) 1100ft
SCCI (4mi, 307°) 162ft
CI040 (5mi, 303°)
USORI (5mi, 290°) 3000ft
USORI (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
EGOS1EPAMIPVHFleft306 (126)°DME 4.0miICAO rules
EGOS2FOREPUVHFleft329 (149)°DME 4.0miICAO rules
EGOS2FPORVAVHFleft306 (126)°DME 5.0miICAO rules
MUNE2EPAMIPVHFleft306 (126)°DME 4.0miICAO rules
MUNE2FOREPUVHFleft329 (149)°DME 4.0miICAO rules
MUNE2FPORVAVHFleft306 (126)°DME 5.0miICAO rules
MUNE3GPAMIPVHFleft306 (126)°DME 4.0miICAO rules
NEDA3EPAMIPVHFleft306 (126)°DME 4.0miICAO rules
NEDA3EPORVAVHFleft306 (126)°DME 5.0miICAO rules
NEDA3FOREPUVHFleft329 (149)°DME 4.0miICAO rules
NEDA3FPORVAVHFleft306 (126)°DME 5.0miICAO rules
NEDA3GPAMIPVHFleft306 (126)°DME 4.0miICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
