Airports for X-Plane

Baltra - Galapagos/baltra - Seymour

Airport details

CountryEcuador
StateGalápagos
RegionSE
AirspaceGuayaquil Ctr
MunicipalityCantón Santa Cruz
Elevation207ft (63m)
TimezoneGMT -6
Coordinates-0.45389, -90.26583
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSEGS
IATA codeGPS
FAA coden/a

Communication

Galapagos/Baltra - Seymour Baltra Tower122.200
Galapagos/Baltra - Seymour Galapagos Approach126.000

Approach frequencies

ILS-cat-IRW14110.918.00mi
3° GSRW14110.918.00mi

Runway info

Runway 14 / 32
 length2399m (7871ft)
 bearing144° / 324°
 width38m (125ft)
 surfaceasphalt

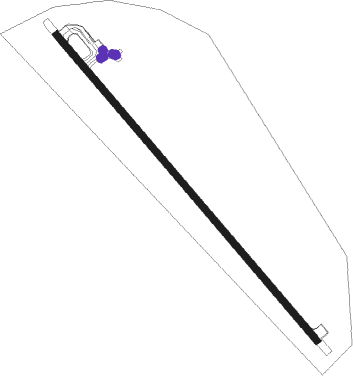

Airport layout - parking location GA


Parking locations

 GA  T1  T2

Nearby beacons

codeidentifierdistbearingfrequency
GLVGALAPAGOS (ISLA BALTRA) VOR/DME0.6135°112.30
SCVSAN CRISTOBAL VOR/DME47.3125°113.10
IBLISABELA NDB50.8235°246

Departure and arrival routes

Transition altitude4000ft
Transition level4000ft
SID end pointsdistanceoutbound heading
RW14
 EKOT2A, REDU2A, REDUS1143mi88°
 EKOTI180mi101°
 SCV147mi125°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14-YGS105 (305°)GS105 8000ft
GS101 (11mi, 296°) 5600ft
GS266 (6mi, 301°) 4000ft
GS264 (5mi, 301°) 3500ft
 RNAVGS264 3500ft
GEMDU (4mi, 42°) 1490ft
SEGS (5mi, 143°) 195ft
GS963 (1mi, 143°)
GS965 (6mi, 58°)
GS242 (5mi, 334°) 3000ft
GS242 (turn) 3000ft
RW14-ZGS105 (305°)GS105 8000ft
GS255 (9mi, 316°) 5000ft
GS253 (11mi, 324°) 2800ft
GS240 (1mi, 303°) 2500ft
RW14-ZGS224 (269°)GS224 8000ft
GS242 (27mi, 282°) 3000ft
GS240 (5mi, 282°) 2500ft
 RNAVGS240 2500ft
GEMDU (4mi, 212°) 1490ft
SEGS (5mi, 143°) 195ft
GS963 (1mi, 143°)
GS965 (6mi, 58°)
GS242 (5mi, 334°) 3000ft
GS242 (turn) 3000ft
RW32-ZGS105 (305°)GS105 3000ft
GS103 (5mi, 296°) 2000ft
GS101 (5mi, 296°) 1900ft
RW32-ZGS224 (269°)GS224 8000ft
GS222 (17mi, 257°) 3000ft
GS220 (9mi, 257°) 1900ft
GS101 (2mi, 277°) 1900ft
 RNAVGS101 1900ft
MIMAB (1mi, 310°) 1490ft
SEGS (5mi, 324°) 257ft
GS991 (2mi, 324°)
GS993 (5mi, 29°)
GS242 (3mi, 95°) 2983ft
GS242 (turn) 3000ft
