Airports for X-Plane

Manta - Manta - Eloy Alfaro

Airport details

CountryEcuador
StateManabí
RegionSE
AirspaceGuayaquil Ctr
MunicipalityManta
Elevation45ft (14m)
TimezoneGMT -5
Coordinates-0.94611, -80.67889
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeSEMT
IATA codeMEC
FAA coden/a

Communication

Manta - Eloy Alfaro RDO126.900
Manta - Eloy Alfaro Ground Control121.900
Manta - Eloy Alfaro Tower118.700
Manta - Eloy Alfaro Approach122.700

Approach frequencies

ILS-cat-IRW24110.118.00mi
3° GSRW24110.118.00mi

Runway info

Runway 06 / 24
 length2860m (9383ft)
 bearing56° / 236°
 width45m (148ft)
 surfaceasphalt

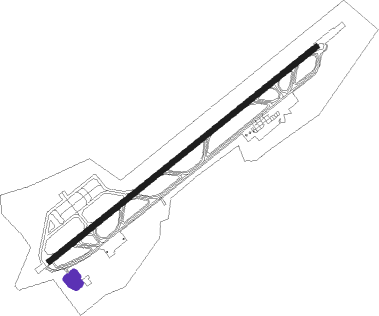

Airport layout - parking location Southwest


Taxiway locations

 A  B  C  D  E  F  G  H
 I  K  L  M
Parking locations

 1  2  3  East  Helicopter  North  Southwest  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
MNVMANTA VOR/DME1.256°113.90
MNTMANTA NDB1.356°205
PTNPORTOVIEJO NDB13.6114°390
BCNBAHIA (SAN VICENTE) NDB26.338°316

Departure and arrival routes

Transition altitude4000ft
Transition level4000ft
SID end pointsdistanceoutbound heading
RW06
 ATOVI3, ATOV1B21mi30°
 ANLI1B, ANLIR321mi67°
 ANSEX3, ANSE1B21mi88°
 ASDE1B, ASDEL320mi143°
 BIXU1B, BIXUT319mi191°
 EGBO1B19mi272°
 KIKI1B, KIKIS320mi318°
RW24
 ATOV3A, ATOV1C21mi30°
 ANLI1C, ANLI3A21mi67°
 ANSE1C, ANSE3A21mi88°
 ASDE3A, ASDE1C20mi143°
 BIXU1C, BIXU3A19mi191°
 EGBO1C19mi272°
 KIKI1C, KIKI3A20mi318°

STAR starting pointsdistanceinbound heading
RW24
 ASBEX149.813°
 SIDIK156.891°
 MIBAR167.0136°
 ORETA197.8247°
 MUMIL149.4269°
 RENAR145.9325°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW24MT001 (210°)MT001 3500ft
MT004 (5mi, 146°) 2500ft
RW24MT002 (235°)MT002 3500ft
MT004 (5mi, 236°) 2500ft
RW24MT003 (261°)MT003 3500ft
MT004 (5mi, 326°) 2500ft
 RNAVMT004 2500ft
MT005 (4mi, 236°) 1950ft
SEMT (7mi, 235°) 98ft
(4845mi, 89°) 1600ft
MT001 (4839mi, 269°) 4000ft
MT001 (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASBEX1MT003VHFright148 (328)°> 4000ft1.0min timedICAO rules
MIBAR1MT001VHFright328 (148)°> 4000ft1.0min timedICAO rules
MUMIL1MT003VHFright148 (328)°> 4000ft1.0min timedICAO rules
ORETA1MT002VHFright58 (238)°> 4000ft1.0min timedICAO rules
RENAR1MT003VHFright148 (328)°> 4000ft1.0min timedICAO rules
SIDIK1MT001VHFright328 (148)°> 4000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
