Airports for X-Plane

Ciudad Del Este - Guarani

Airport details

CountryParaguay
StateAlto Paraná
RegionSG
AirspaceAsuncion Ctr
MunicipalityMinga Guazú
Elevation846ft (258m)
TimezoneGMT -4
Coordinates-25.45529, -54.84177
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSGES
IATA codeAGT
FAA coden/a

Communication

Guarani Ground Control121.700
Guarani Tower118.100
Guarani Approach119.300
Guarani Approach120.600

Approach frequencies

ILS-cat-IRW23111.318.00mi
3° GSRW23111.318.00mi

Runway info

Runway 05 / 23
 length3406m (11175ft)
 bearing44° / 224°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)
Runway 05R / 23L
 length801m (2628ft)
 bearing44° / 224°
 width22m (72ft)
 surfacegrass

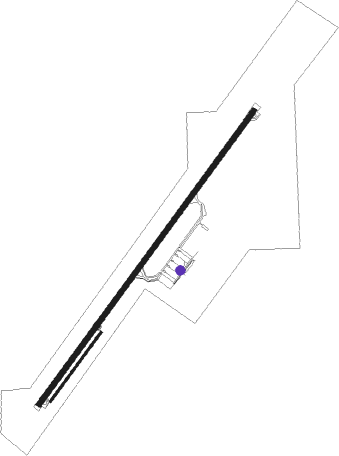

Airport layout - parking location Jetway


Parking locations

 2  3  4  5  Cargo  GA  Jetway

Nearby beacons

codeidentifierdistbearingfrequency
VESMINGA GUAZU VOR/DME0.5240°116.30
CDECIUDAD DEL ESTE NDB1.9225°200
ALGCIUDAD DEL ESTE NDB6.843°293
ITUITAIPU NDB12.278°225
FOZFOZ (FOZ DO IGUACU) VOR/DME19.8111°112.10
IGUCATARATAS DEL IGUAZU VOR/DME25.5128°114.10
ZMAYOR D CARLOS EDUARDO KRAUSE NDB27.6127°310

Departure and arrival routes

Transition altitude3000ft
SID end pointsdistanceoutbound heading
RW05
 MATEL54mi76°
 KAMIL59mi97°
 ALDOS47mi169°
 DAGOL41mi188°
 COSTA22mi262°
RW23
 MATEL54mi76°
 KAMIL59mi97°
 ALDOS47mi169°
 DAGOL41mi188°
 COSTA22mi262°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05-ZILNIS (65°)ILNIS 3000ft
NINDA (5mi, 109°) 2500ft
RW05-ZIROKO (21°)IROKO 3000ft
NINDA (5mi, 328°) 2500ft
RW05-ZPULMI (44°)PULMI 3000ft
NINDA (5mi, 44°) 2500ft
 RNAVNINDA 2500ft
GILMO (4mi, 44°) 2490ft
SGES (6mi, 44°) 896ft
(3524mi, 65°) 3000ft
KORDI (3511mi, 245°)
KORDI (turn)
RW23-ZKORDI (223°)KORDI 3000ft
ROGER (5mi, 223°) 2500ft
RW23-ZSATMO (200°)SATMO 3000ft
ROGER (5mi, 148°) 2500ft
RW23-ZTEROM (245°)TEROM 3000ft
ROGER (5mi, 289°) 2500ft
 RNAVROGER 2500ft
MOLMA (4mi, 224°) 2420ft
SGES (6mi, 223°) 824ft
(3524mi, 65°) 3000ft
PULMI (3536mi, 245°)
PULMI (turn)
