Alcântara - Centro De Lancamento De Alcantara
Airport details
| Country | Brazil |
| State | Maranhão |
| Region | SB |
| Airspace | Amazonica Ctr |
| Municipality | Alcântara |
| Elevation | 145ft (44m) |
| Timezone | GMT -3 |
| Coordinates | -2.37167, -44.39083 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | SNCW |
| IATA code | n/a |
| FAA code | n/a |
Communication
| Centro de Lancamento de Alcantara Tatics | 122.050 |

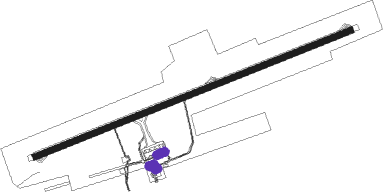

Runway info
| Runway 09 / 27 | ||
| length | 2603m (8540ft) | |
| bearing | 73° / 253° | |
| width | 46m (151ft) | |
| surface | asphalt | |
| blast zone | 60m (197ft) / 61m (200ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| ALR | ALCANTARA VOR/DME | 0.3 | 272° | 116.70 |
| ALC | ALCANTARA NDB | 0.7 | 221° | 230 |
| SLI | SAO LUIS VOR/DME | 15.8 | 145° | 113.50 |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW09 | CW009 (73°) | CW009 3000ft CW008 (6mi, 73°) 2000ft |
| RW09 | CW011 (96°) | CW011 3000ft CW008 (6mi, 143°) 2000ft |
| RW09 | CW012 (49°) | CW012 3000ft CW008 (6mi, 3°) 2000ft |
| RNAV | CW008 2000ft CW007 (5mi, 73°) 1790ft SNCW (6mi, 73°) 194ft CW017 (14mi, 73°) 3000ft CW017 (turn) 3000ft | |
| RW27 | CW016 (224°) | CW016 3000ft CW014 (6mi, 183°) 2000ft |
| RW27 | CW017 (253°) | CW017 3000ft CW014 (6mi, 253°) 2000ft |
| RNAV | CW014 2000ft CW013 (4mi, 253°) 1470ft SNCW (4mi, 252°) 191ft CW009 (17mi, 253°) 3000ft CW009 (turn) 3000ft |
