Airports for X-Plane

Jorge Chavez Intl

Airport details

CountryPeru
State[Other]
RegionSP
AirspaceLima Ctr
MunicipalityCallao
Elevation110ft (34m)
TimezoneGMT -5
Coordinates-12.03519, -77.10414
Magnetic var
Typeland
Available sinceX-Plane v10.45
ICAO codeSPJC
IATA coden/a
FAA coden/a

Communication

Jorge Chavez Intl Lima ATIS127.900
Jorge Chavez Intl Lima Clearance118.500
Jorge Chavez Intl Lima Ground121.900
Jorge Chavez Intl Lima Tower118.100

Approach frequencies

ILS-cat-IIIRW15109.718.00mi
3° GSRW15109.718.00mi

Runway info

Runway 15 / 33
 length3522m (11555ft)
 bearing154° / 334°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 605m (1985ft)

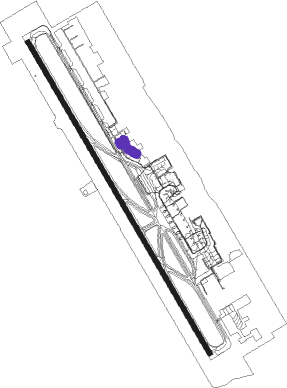

Airport layout - parking location Army


Taxiway locations

 A  B  C  D  E  F  G
Parking locations

 Army  G8  Gate  N  Police  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
JCLJORGE CHAVEZ (LIMA-CALLAO VOR/DME0.2198°116.90
SLSSALINAS VOR/DME52.3328°114.70

Departure and arrival routes

Transition altitude10000ft
SID end pointsdistanceoutbound heading
RW15
 AMVE4G, AMVE5F76mi14°
 OPRO2G, OPRO2F, LIMA3F53mi44°
 ILPI5G64mi94°
 PAKOL3153mi124°
 ASOX1F52mi146°
 ITAV1F115mi152°
 ISRE2F168mi326°
 GAVO1F52mi328°
 ATAT2F123mi334°
 ILRO4G, ILRO5F92mi353°
RW33
 LIMA3G106mi125°
 ASOX1G52mi146°
 ITAV1G115mi152°
 ISRE2G168mi326°
 GAVO1G52mi328°
 ATAT2G123mi334°

STAR starting pointsdistanceinbound heading
RW15
 SLS652.3148°
 ATATU2122.6154°
 KOMGO2111.2159°
 ILROL492.0173°
 RENON389.0212°
 VADOS388.7224°
 ALDAL252.7253°
 PEROV465.3286°
 ILMA5B, ILMA5A138.8345°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15ESOMA (165°)VAPON 5000ft
JC641 (4mi, 334°) 5000ft
JC638 (4mi, 334°) 5000ft
JC637 (2mi, 311°) 4000ft
ESOMA (2mi, 267°) 3500ft
JC625 (4mi, 199°) 2000ft
JC623 (4mi, 154°) 2000ft
RW15ILNES (142°)SULTA 5000ft
JC628 (4mi, 334°) 5000ft
JC627 (4mi, 334°) 5000ft
ILNES (4mi, 19°) 3500ft
JC625 (4mi, 109°) 2000ft
JC623 (4mi, 154°) 2000ft
RW15KUGOD (168°)VAPON 5000ft
JC641 (4mi, 334°) 5000ft
KUGOD (4mi, 289°) 3500ft
JC623 (4mi, 199°) 2000ft
RW15LOBUS (153°)LOBUS
JC625 (4mi, 154°) 2000ft
JC623 (4mi, 154°) 2000ft
RW15REKUB (137°)SULTA 5000ft
JC628 (4mi, 334°) 5000ft
REKUB (4mi, 19°) 3500ft
JC623 (4mi, 109°) 2000ft
 RNAVJC623 2000ft
KORBI (2mi, 154°) 1300ft
SPJC (6mi, 152°) 98ft
JC902 (3mi, 157°) 2000ft
JC904 (6mi, 245°)
SULTA (7mi, 334°)
JC516 (12mi, 335°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALDAL2MONKUVHFright90 (270)°> 21000ft1.5min timedICAO rules
ATATU2ATATUVHFleft335 (155)°> 25000ft1.5min timedICAO rules
ATATU2KALARVHFleft335 (155)°> 10000ft1.0min timed230
ATATU2VUMOMVHFright335 (155)°> 6000ft1.0min timedICAO rules
ESEDI1ASOXIVHFleft119 (299)°> 20000ft1.5min timedICAO rules
ESEDI1SCOVHFleft149 (329)°> 25000ft1.5min timedICAO rules
ILROL4ILROLVHFleft358 (178)°> 23000ft1.5min timedICAO rules
ILROL4KALARVHFleft335 (155)°> 10000ft1.0min timed230
ILROL4VUMOMVHFright335 (155)°> 6000ft1.0min timedICAO rules
KOMGO2VUMOMVHFright335 (155)°> 6000ft1.0min timedICAO rules
PEROV4PEROVVHFright104 (284)°> 22000ft1.0min timedICAO rules
RENON3PADISVHFright68 (248)°> 20000ft1.5min timedICAO rules
RENON3VUMOMVHFright335 (155)°> 6000ft1.0min timedICAO rules
SLS6VUMOMVHFright335 (155)°> 6000ft1.0min timedICAO rules
VADOS3PADISVHFright68 (248)°> 20000ft1.5min timedICAO rules
VADOS3VUMOMVHFright335 (155)°> 6000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
