Airports for X-Plane

Bento Gonçalves - Aeroclube De Bento Goncalves

Airport details

CountryBrazil
StateRio Grande do Sul
Region
AirspaceCuritiba Ctr
MunicipalityBento Gonçalves
Elevation2208ft (673m)
TimezoneGMT -3
Coordinates-29.14833, -51.53611
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeSSBG
IATA codeBGV
FAA coden/a

Communication

No airport communication available for SSBG

Runway info

Runway 13 / 31
 length1257m (4124ft)
 bearing108° / 288°
 width23m (75ft)
 surfaceasphalt

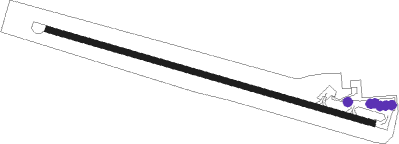

Airport layout - parking location Parking


Parking locations

 Parking

Nearby beacons

codeidentifierdistbearingfrequency
CXSDO SUL VOR/DME18.498°112.30
TQIDME41.5205°114.50
TQADME50.4125°112.90
COACANOAS (PORTO ALEGRE) VOR/DME52.2154°113.60
PAGPORTO ALEGRE NDB54.4157°330
PORPORTO ALEGRE VOR/DME54.4156°114
FIGFIGUEIRAS (PORTO ALEGRE) VOR/DME58.8147°114.70
PFDPASSO FUNDO NDB68.6319°370
