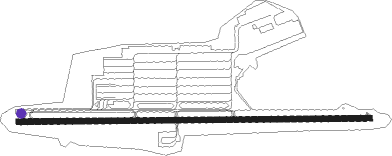

Caracas - Oscar Machado Zuloaga
Airport details
| Country | Venezuela |
| State | Miranda State |
| Region | SV |
| Airspace | Maiquetia Ctr |
| Municipality | Parroquia Las Brisas |
| Elevation | 2145ft (654m) |
| Timezone | GMT -4 |
| Coordinates | 10.28807, -66.82008 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | SVCS |
| IATA code | n/a |
| FAA code | n/a |
Communication
| Oscar Machado Zuloaga Ground Control | 121.700 |
| Oscar Machado Zuloaga CARACAS Tower | 118.000 |
| Oscar Machado Zuloaga TUY Approach | 119.200 |
Approach frequencies
| ILS-cat-I | RW10 | 109.7 | 18.00mi |
| 3.7° GS | RW10 | 109.7 | 18.00mi |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| TUY | TUY (CARACAS) VOR/DME | 1.2 | 80° | 115.20 |
| MIQ | MAIQUETIA VOR/DME | 21.7 | 332° | 114.80 |
| SSB | SAN SEBASTIAN NDB | 27.7 | 225° | 318 |
| BAL | EL LIBERTADOR (MARACAY) VOR/DME | 43.5 | 262° | 113.90 |
| CBC | CABO CODERA VOR/DME | 48.6 | 70° | 113.50 |
| BEL | BELEN NDB | 54.9 | 251° | 235 |
Departure and arrival routes
| Transition altitude | 8000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW10 | |||
| PAUJI4 | 23mi | 69° | |
| COVIA1, USOTI3 | 37mi | 115° | |
| MASPU4 | 28mi | 225° | |
| ORODI4 | 22mi | 294° | |
| RW28 | |||
| PAUJI3 | 23mi | 69° | |
| ABILA1, USOTI3 | 37mi | 115° | |
| MASPU4 | 28mi | 225° | |
| ORODI4 | 22mi | 294° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW10-Y | MASP3 (279°) | MASPU MESIA (16mi, 17°) 7600ft ERISO (6mi, 58°) 5900ft |
| RW10-Y | MASP4 (279°) | MASPU PAVON (17mi, 39°) 5900ft ERISO (5mi, 351°) 5900ft |
| RW10-Y | MIQ (152°) | MIQ ALTOS (13mi, 194°) 7800ft LIMON (6mi, 207°) 7600ft ERISO (6mi, 116°) 5900ft |
| RW10-Y | ORODI (114°) | ORODI ALTOS (7mi, 112°) 8800ft LIMON (6mi, 207°) 7600ft ERISO (6mi, 116°) 5900ft |
| RW10-Y | TUY (260°) | TUY 8000ft PAVON (12mi, 238°) 5900ft ERISO (5mi, 351°) 5900ft |
| RW10-Y | USOTI (295°) | USOTI 8000ft PAVON (43mi, 282°) 5900ft ERISO (5mi, 351°) 5900ft |
| RNAV | ERISO 5900ft BAGRE (4mi, 81°) 4200ft PICUA (5mi, 81°) 2378ft PARGO (6mi, 94°) PAVON (15mi, 247°) 5900ft MESIA (6mi, 287°) 7600ft MESIA (turn) 7600ft | |
| RW10-Z | MASP1 (279°) | MASPU MESIA (16mi, 17°) 7600ft ERISO (6mi, 58°) 5900ft |
| RW10-Z | MASP2 (279°) | MASPU PAVON (17mi, 39°) 5900ft ERISO (5mi, 351°) 5900ft |
| RW10-Z | MIQ (152°) | MIQ ALTOS (13mi, 194°) 7800ft LIMON (6mi, 207°) 7600ft ERISO (6mi, 116°) 5900ft |
| RW10-Z | ORODI (114°) | ORODI ALTOS (7mi, 112°) 8800ft LIMON (6mi, 207°) 7600ft ERISO (6mi, 116°) 5900ft |
| RW10-Z | USOTI (295°) | USOTI 8000ft PAVON (43mi, 282°) 5900ft ERISO (5mi, 351°) 5900ft |
| RNAV | ERISO 5900ft BAGRE (4mi, 81°) 4200ft PICUA (5mi, 81°) 2378ft PARGO (6mi, 94°) PAVON (15mi, 247°) 5900ft MESIA (6mi, 287°) 7600ft MESIA (turn) 7600ft | |
| RW28-Y | JUREL (200°) | JUREL WAHOO (28mi, 169°) 7800ft PAUJI (6mi, 169°) 7100ft PETOS (3mi, 233°) 7100ft GUAZA (6mi, 234°) 5600ft TUKAN (5mi, 231°) 5100ft |
| RW28-Y | USOTI (295°) | USOTI CAREI (11mi, 299°) 6100ft MONOS (12mi, 299°) 5600ft TUKAN (5mi, 316°) 5100ft |
| RNAV | TUKAN 5100ft PARGO (5mi, 274°) 3500ft SVCS (5mi, 274°) 2166ft PICUA (turn) MONOS (15mi, 107°) 5600ft MONOS (turn) 5600ft | |
| RW28-Z | JUREL (200°) | JUREL WAHOO (28mi, 169°) 7800ft PAUJI (6mi, 169°) 7100ft PETOS (3mi, 233°) 7100ft GUAZA (6mi, 234°) 5600ft TUKAN (5mi, 231°) 5100ft |
| RW28-Z | USOTI (295°) | USOTI CAREI (11mi, 299°) 6100ft MONOS (12mi, 299°) 5600ft TUKAN (5mi, 316°) 5100ft |
| RNAV | TUKAN 5100ft PARGO (5mi, 274°) 3500ft SVCS (5mi, 274°) 2166ft PICUA (turn) MONOS (15mi, 107°) 5600ft MONOS (turn) |
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
