Airports for X-Plane

Isla Margarita - Del Caribe Gen Santiago Marino

Airport details

CountryVenezuela
StateNueva Esparta State
RegionSV
AirspaceMaiquetia Ctr
MunicipalitySan Juan Bautista
Elevation74ft (23m)
TimezoneGMT -4
Coordinates10.91399, -63.97296
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSVMG
IATA codePMV
FAA coden/a

Communication

Del Caribe Gen Santiago Marino ATIS132.650
Del Caribe Gen Santiago Marino Tower118.600
Del Caribe Gen Santiago Marino MARGARITA Approach119.900

Approach frequencies

ILS-cat-IRW09110.118.00mi
3.2° GSRW09110.118.00mi
Nearby Points of Interest:
Laguna de la Restinga

Runway info

Runway 09 / 27
 length3030m (9941ft)
 bearing78° / 258°
 width46m (150ft)
 surfaceasphalt
 blast zone27m (89ft) / 181m (594ft)
Runway 09L / 27R
 length2936m (9633ft)
 bearing78° / 258°
 width30m (100ft)
 surfaceasphalt

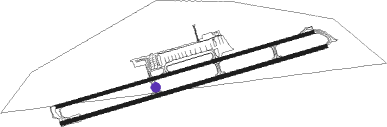

Airport layout - taxiway location B


Taxiway locations

 A  B  C  D  E  F
Parking locations

 Fighter  GA  Gate  Jet  Mil

Nearby beacons

codeidentifierdistbearingfrequency
MTAMARGARITA (DEL CARIBE) VOR/DME191°114.10
MTGILES NDB4.4259°218
CUMCUMANA VOR/DME29.8200°113.30
BNABARCELONA VOR/DME64.1222°115.90

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW09
 OSTRA141mi64°
 ESNAP145mi110°
 SILED126mi144°
 CUM130mi200°
 GUAMA1, SARNI139mi255°
 SIRAS1, ARNAK, CANAO139mi285°
 BAHIA1, YAQUE140mi343°
RW27
 OSTRA141mi64°
 ESNAP145mi110°
 SILED126mi144°
 CUM130mi200°
 SARNI139mi255°
 DOPSA1, SIRAS139mi285°
 BAHIA140mi343°

STAR starting pointsdistanceinbound heading
RW09
 UGEMI13.064°
 EKONU13.585°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09-YISAPO (56°)ISAPO
UGEMI (6mi, 39°) 2800ft
ENVUS (5mi, 39°) 2800ft
RW09-YVALLE (91°)VALLE 3500ft
EKONU (11mi, 98°) 2800ft
ENVUS (5mi, 98°) 2800ft
 RNAVENVUS 2800ft
UGROM (4mi, 78°) 1400ft
SVMG (4mi, 76°) 124ft
ISKER (1mi, 86°)
UGEMI (14mi, 246°) 3800ft
UGEMI (turn)
RW09-ZISAPO (56°)ISAPO
UGEMI (6mi, 39°) 2800ft
ENVUS (5mi, 39°) 2800ft
RW09-ZVALLE (91°)VALLE 3500ft
EKONU (11mi, 98°) 2800ft
ENVUS (5mi, 98°) 2800ft
 RNAVENVUS 2800ft
UGROM (4mi, 78°) 1400ft
SVMG (4mi, 76°) 124ft
ISKER (1mi, 86°)
UGEMI (14mi, 246°) 3800ft
UGEMI (turn)
RW27-YESNAP (290°)ESNAP
UGTEX (22mi, 291°) 5000ft
ASIVI (10mi, 307°) 2800ft
ARPES (5mi, 307°) 2800ft
RW27-YOSTRA (244°)OSTRA
EGULI (27mi, 239°) 2800ft
ARPES (5mi, 239°) 2800ft
 RNAVARPES 2800ft
ARSET (4mi, 258°) 1400ft
SVMG (5mi, 260°) 79ft
UGROM (4mi, 256°)
ASIVI (18mi, 91°) 3800ft
ASIVI (turn)
RW27-ZESNAP (290°)ESNAP 5000ft
UGTEX (22mi, 291°) 5000ft
ASIVI (10mi, 307°) 2800ft
ARPES (5mi, 307°) 2800ft
RW27-ZOSTRA (244°)OSTRA
EGULI (27mi, 239°) 2800ft
ARPES (5mi, 239°) 2800ft
 RNAVARPES 2800ft
ARSET (4mi, 258°) 1400ft
SVMG (5mi, 260°) 79ft
UGROM (4mi, 256°)
ASIVI (18mi, 91°) 3800ft
ASIVI (turn)
