St John's - Antigua - V C Bird Intl

Airport details

Country	Antigua and Barbuda
State	Antigua
Region	TA
Airspace	Piarco Ctr
Municipality	Saint George
Elevation	62ft (19m)
Timezone	GMT -4
Coordinates	17.13671, -61.79268
Magnetic var
Type	land
Available since	X-Plane v10.32
ICAO code	TAPA
IATA code	ANU
FAA code	n/a

Communication

Antigua - V C Bird Intl Ground Control	121.900
Antigua - V C Bird Intl Tower	118.200
Antigua - V C Bird Intl Approach	119.100

Runway info

Runway 07 / 25
	length	3041m (9977ft)
	bearing	59° / 239°
	width	45m (148ft)
	surface	asphalt
	displ threshold	500m (1640ft) / 300m (984ft)
	blast zone	15m (49ft) / 0m (0ft)

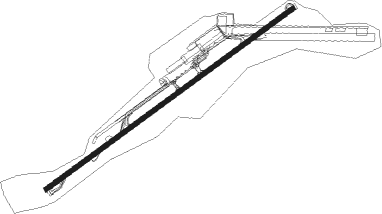

Airport layout

Taxiway locations

Parking locations

1	10	14	15	16	2	3	4
5	6	7	8	9	GA1	GA10	GA11
GA12	GA13	GA14	GA15	GA2	GA3

Nearby beacons

code	identifier	dist	bearing	frequency
ANU	V C BIRD (SAINT JOHNS) VOR/DME	0.7	215°	114.50
ZDX	V C BIRD (SAINT JOHNS) NDB	1.2	353°	369
PTP	POINTE A PITRE NDB	52	169°	385
PPR	POINTE A PITRE VOR/DME	54.3	164°	112.90
SKB	L BRADSHAW (ST KIT DME	54.6	280°	112
SKB	ROBERT L BRADSHAW (ST KITTS) NDB	55.3	279°	325

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW07	BEVAN (117°)	BEVAD 2500ft NAKAL (62mi, 250°) 2500ft GABSA (6mi, 239°) 2500ft KEBOR (5mi, 239°) 2500ft EMALI (6mi, 147°) 2500ft
RW07	BEVAS (286°)	BEVAD 2500ft EBLUK (61mi, 239°) 2500ft DUPET (6mi, 239°) 2500ft GADES (5mi, 239°) 2500ft EMALI (6mi, 327°) 2500ft
RW07	BOMET (99°)	BOMET 2500ft EMALI (18mi, 123°) 2500ft
RW07	ELOPO (124°)	ELOPO 2500ft KEBOR (44mi, 135°) 2500ft EMALI (6mi, 147°) 2500ft
RW07	EMALI (59°)	EMALI 2500ft
RW07	KASKI (345°)	KASKI 2500ft GADES (20mi, 316°) 2500ft EMALI (6mi, 327°) 2500ft
RW07	LAMKN (169°)	LAMKN 2500ft KEBOR (53mi, 183°) 2500ft EMALI (6mi, 147°) 2500ft
RW07	MEDUS (331°)	MEDUS 2500ft GADES (23mi, 302°) 2500ft EMALI (6mi, 327°) 2500ft
	RNAV	EMALI 2500ft BOPAR (5mi, 59°) 2000ft 40THR (2mi, 59°) 900ft TAPA (5mi, 59°) 108ft LIDOK (7mi, 59°) 2500ft IMUSU (5mi, 59°) IMUSU (turn)
