Airports for X-Plane

Basseterre - St. Kitts/bradshaw Intl

Airport details

CountrySaint Kitts and Nevis
StateSaint Kitts
RegionTK
AirspacePiarco Ctr
MunicipalitySaint Peter Basseterre
Elevation166ft (51m)
TimezoneGMT -4
Coordinates17.31118, -62.71869
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeTKPK
IATA codeSKB
FAA coden/a

Communication

St. Kitts/Bradshaw Intl AWOS118.100
St. Kitts/Bradshaw Intl Ground Control121.900
St. Kitts/Bradshaw Intl Tower118.300
St. Kitts/Bradshaw Intl Approach119.600

Runway info

Runway 07 / 25
 length2324m (7625ft)
 bearing58° / 238°
 width45m (148ft)
 surfaceasphalt
 displ threshold72m (236ft) / 46m (151ft)
 blast zone61m (200ft) / 55m (180ft)

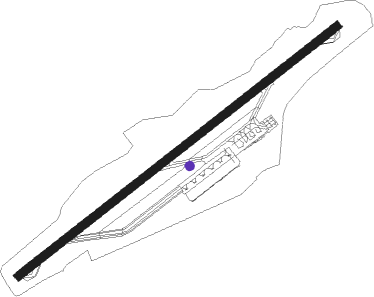

Airport layout - taxiway location B


Taxiway locations

 A  B  C
Parking locations

 GA  Spot

Nearby beacons

codeidentifierdistbearingfrequency
SKBL BRADSHAW (ST KIT DME0.5243°112
SKBROBERT L BRADSHAW (ST KITTS) NDB1.7238°325
PJMSAINT MAARTEN VOR/DME49.2331°113
ZDXV C BIRD (SAINT JOHNS) NDB53.799°369
ANUV C BIRD (SAINT JOHNS) VOR/DME53.8101°114.50

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW07
 UDGEL116mi279°
 KIPUR112mi325°
RW25
 DUSUL112mi325°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07ANASU (314°)ANASU 5000ft
EPVOS (20mi, 287°) 5000ft
IKNIG (10mi, 286°) 4000ft
LOMDO (6mi, 326°) 3200ft
DUSUL (5mi, 58°) 2000ft
RW07BOMET (282°)BOMET 5000ft
TABOX (26mi, 261°) 5000ft
IKNIG (10mi, 261°) 4000ft
LOMDO (6mi, 326°) 3200ft
DUSUL (5mi, 58°) 2000ft
RW07GABAR (99°)GABAR 3200ft
OMONO (5mi, 155°) 3200ft
LOMDO (6mi, 146°) 3200ft
DUSUL (5mi, 58°) 2000ft
RW07ITRUS (288°)ITRUS 5000ft
PURID (16mi, 258°) 5000ft
IKNIG (10mi, 258°) 4000ft
LOMDO (6mi, 326°) 3200ft
DUSUL (5mi, 58°) 2000ft
RW07LOMDO (58°)LOMDO 3200ft
DUSUL (5mi, 58°) 2000ft
RW07ZPATA (145°)ZPATA 5000ft
IMOTA (10mi, 214°) 5000ft
OMONO (4mi, 214°) 4000ft
LOMDO (6mi, 146°) 3200ft
DUSUL (5mi, 58°) 2000ft
 RNAVDUSUL 2000ft
EMETA (2mi, 58°) 2000ft
TKPK (5mi, 58°) 218ft
UDGEL (13mi, 58°) 3000ft
UDGEL (turn) 10000ft
RW25ANASU (314°)ANASU 3000ft
EMLEX (10mi, 341°) 3000ft
DUVON (6mi, 341°) 3000ft
MAXVU (8mi, 343°) 3000ft
UDGEL (6mi, 326°) 2500ft
RW25BOMET (282°)BOMET 3000ft
MAXVU (17mi, 299°) 3000ft
UDGEL (6mi, 326°) 2500ft
RW25GABAR (99°)GABAR 5000ft
KASAM (20mi, 69°) 5000ft
NOVAR (5mi, 69°) 4000ft
UDGEL (6mi, 146°) 2500ft
RW25UDGEL (238°)UDGEL 2500ft
RW25ZPATA (145°)ZPATA 4000ft
NOVAR (14mi, 81°) 4000ft
UDGEL (6mi, 146°) 2500ft
 RNAVUDGEL 2500ft
KIPUR (6mi, 238°) 2000ft
RADAT (3mi, 238°) 1000ft
IKNIG (17mi, 217°) 1400ft
LOMDO (6mi, 326°) 3200ft
LOMDO (turn) 10000ft
