Airports for X-Plane

Sint Maarten - Princess Juliana Intl

Airport details

CountryNetherlands
StateNetherlands Antilles
RegionTN
AirspaceSan Juan Oceanic Ctr
MunicipalitySint Maarten
Elevation14ft (4m)
TimezoneGMT -4
Coordinates18.04093, -63.10896
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeTNCM
IATA codeSXM
FAA coden/a

Communication

Princess Juliana Intl ATIS127.650
Princess Juliana Intl Juliana Tower118.700
Princess Juliana Intl Juliana Departure128.950

Runway info

Runway 10 / 28
 length2298m (7539ft)
 bearing82° / 262°
 width45m (148ft)
 surfaceasphalt
 displ threshold100m (328ft) / 0m (0ft)
 blast zone49m (161ft) / 60m (197ft)

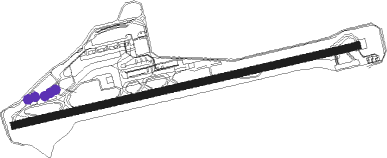

Airport layout - parking location West


Taxiway locations

 A  B  C  D  E  F  G1  G2
 H
Parking locations

 A  B  C  E  F  G  H  West

Nearby beacons

codeidentifierdistbearingfrequency
PJMSAINT MAARTEN VOR/DME0.5253°113
SKBL BRADSHAW (ST KIT DME49.2153°112
SKBROBERT L BRADSHAW (ST KITTS) NDB49.4154°325

Departure and arrival routes

Transition altitude5000ft
Transition level6500ft
SID end pointsdistanceoutbound heading
RW10
 MODOR2, MULLT2, PELCN238mi154°
 BOPAT232mi279°
 JULNA223mi348°

STAR starting pointsdistanceinbound heading
ALL
 ULUBA110.582°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10DANDE (46°)DANDE 2600ft
AVAKI (37mi, 36°) 2600ft
RW10ELOPO (305°)ELOPO 2600ft
UMANA (44mi, 290°) 2600ft
AVAKI (6mi, 351°) 2600ft
RW10GABUL (121°)GABUL 2600ft
AVAKI (14mi, 152°) 2600ft
RW10GOUDA (79°)GOUDA 2600ft
AVAKI (22mi, 78°) 2600ft
RW10JUICE (99°)JUICE 2600ft
AVAKI (22mi, 107°) 2600ft
RW10MNOLO (225°)MNOLO 2600ft
OTMOT (32mi, 245°) 2600ft
AVAKI (6mi, 171°) 2600ft
RW10ONBED (306°)ONBED 2600ft
UMANA (26mi, 279°) 2600ft
AVAKI (6mi, 351°) 2600ft
RW10PFANG (186°)PFANG 2600ft
OTMOT (14mi, 247°) 2600ft
AVAKI (6mi, 171°) 2600ft
RW10SLUGO (122°)SLUGO 2600ft
AVAKI (31mi, 135°) 2600ft
RW10TRNKY (168°)TRNKY 2600ft
OTMOT (20mi, 201°) 2600ft
AVAKI (6mi, 171°) 2600ft
RW10ZPATA (334°)ZPATA 3000ft
UMANA (37mi, 315°) 3000ft
AVAKI (6mi, 351°) 2600ft
 RNAVAVAKI 2600ft
LESOR (5mi, 82°) 1700ft
MAPON (3mi, 82°) 699ft
ONBED (22mi, 121°) 4000ft
ONBED (turn) 14000ft
