Airports for X-Plane

The Valley - Clayton J. Lloyd

Airport details

CountryAnguilla
State[Other]
RegionTQ
AirspaceSan Juan Oceanic Ctr
MunicipalityAnguilla
Elevation125ft (38m)
TimezoneGMT -4
Coordinates18.20480, -63.05385
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeTQPF
IATA codeAXA
FAA coden/a

Communication

Clayton J. Lloyd Tower118.500
Clayton J. Lloyd JULIANA Approach118.700
Clayton J. Lloyd JULIANA Approach128.950

Runway info

Runway 10 / 28
 length1662m (5453ft)
 bearing91° / 271°
 width30m (98ft)
 surfaceasphalt
 displ threshold150m (492ft) / 150m (492ft)

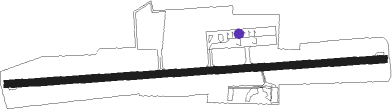

Airport layout - parking location 5


Taxiway locations

 A  B  C
Parking locations

 1  10  2  3  4  5  6  7
 8  9  Hangar  Parking

Nearby beacons

codeidentifierdistbearingfrequency
PJMSAINT MAARTEN VOR/DME10.6201°113
SKBL BRADSHAW (ST KIT DME57160°112
SKBROBERT L BRADSHAW (ST KITTS) NDB57.4161°325

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11CROOK (120°)CROOK 1760ft
PF11I (6mi, 181°) 1760ft
RW11OTMOT (70°)OTMOT 2600ft
PF11I (7mi, 39°) 1760ft
RW11URMAD (91°)URMAD 1760ft
PF11I (6mi, 91°) 1760ft
 RNAVPF11I 1760ft
PF11F (5mi, 91°) 1760ft
TQPF (5mi, 91°) 168ft
(3874mi, 106°) 1000ft
CROOK (3885mi, 286°) 1300ft
CROOK (turn) 1300ft
RW29CARRB (300°)CARRB 2600ft
PF29I (6mi, 1°) 1720ft
RW29MODAN (271°)MODAN 1720ft
PF29I (6mi, 271°) 1720ft
RW29TECUP (242°)TECUP 1720ft
PF29I (6mi, 181°) 1720ft
 RNAVPF29I 1720ft
PF29F (5mi, 271°) 1720ft
MA29 (4mi, 271°) 447ft
(3873mi, 106°) 1000ft
TECUP (3865mi, 286°) 1300ft
TECUP (turn) 1300ft
