Hamilton - L F Wade Intl

Airport details

Country	Bermuda
State	[Other]
Region	TX
Airspace	New York Oceanic Ctr
Municipality	Saint George's
Elevation	12ft (4m)
Timezone	GMT -4
Coordinates	32.36404, -64.67870
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	TXKF
IATA code	BDA
FAA code	n/a

Communication

L F Wade Intl ATIS	119.600
L F Wade Intl CTAF	122.800
L F Wade Intl Ground Control	124.500
L F Wade Intl Tower	118.100
L F Wade Intl NEW YORK Approach	119.100
L F Wade Intl NEW YORK Approach	128.500
L F Wade Intl NEW YORK Departure	119.100

Approach frequencies

ILS-cat-I	RW30	109.9	18.00mi
3° GS	RW30	109.9	18.00mi

Nearby Points of Interest:

St George and Related Fortifications

Runway info

Runway 12 / 30
	length	2957m (9701ft)
	bearing	100° / 280°
	width	46m (150ft)
	surface	asphalt
	displ threshold	171m (561ft) / 0m (0ft)
	blast zone	229m (751ft) / 63m (207ft)

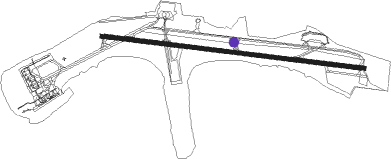

Airport layout - taxiway location C

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
BDA	BERMUDA VOR/DME	0.5	272°	113.90

Departure and arrival routes

Transition altitude

18000ft

Transition level

18000ft

SID end points		distance	outbound heading
RW12
	BORNN1	180mi	284°
RW30
	SOMRR1	180mi	284°

STAR starting points		distance	inbound heading
RW12
	POPOP1	50.7	76°
	MOMOM1	50.7	141°
RW30
	POPOP1	50.7	76°
	MOMOM1	50.7	141°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW12	UTALE (78°)	UTALE 3000ft VITUT (5mi, 13°) 1700ft
RW12	VENZI (123°)	VENZI 3000ft VITUT (5mi, 194°) 1700ft
RW12	WENAN (100°)	WENAN 3000ft VITUT (6mi, 100°) 1700ft
	RNAV	VITUT 1700ft TOWUN (5mi, 100°) 1700ft TXKF (5mi, 100°) 68ft CURUN (16mi, 100°) 3000ft CURUN (turn) 3000ft
RW30	BIDVE (256°)	BIDVE 3000ft CABEM (6mi, 194°) 1500ft
RW30	CURUN (280°)	CURUN 3000ft CABEM (5mi, 280°) 1500ft
RW30	TUDIE (305°)	TUDIE 3000ft CABEM (6mi, 13°) 1500ft
	RNAV	CABEM 1500ft DERME (6mi, 280°) 1500ft TXKF (5mi, 280°) 68ft WENAN (16mi, 280°) 3000ft WENAN (turn) 3000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
MOMOM1	GBINS	VHF	right	57 (237)°	24000ft - 31000ft	DME 10.0mi	ICAO rules
MOMOM1	MOMOM	VHF	left	356 (176)°	6000ft - 14000ft	DME 10.0mi	210
MOMOM1	TEDIY	VHF	right	5 (185)°	24000ft - 31000ft	DME 10.0mi	ICAO rules
MOMOM1	UNYON	VHF	right	314 (134)°	24000ft - 31000ft	DME 10.0mi	ICAO rules
POPOP1	DNSTN	VHF	left	291 (111)°	24000ft - 31000ft	DME 10.0mi	ICAO rules
POPOP1	KAPPI	VHF	right	245 (65)°	24000ft - 31000ft	DME 10.0mi	ICAO rules
POPOP1	POPOP	VHF	right	292 (112)°	6000ft - 14000ft	DME 10.0mi	210
*) magnetic outbound (inbound) holding course
