Airports for X-Plane

Nur-sultan - Nur-sultan Nazarbayev Intl

Airport details

CountryKazakhstan
StateAstana
RegionUA
AirspaceNur-sultan Ctr
Elevation1165ft (355m)
TimezoneGMT +6
Coordinates51.02250, 71.46616
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUACC
IATA codeTSE
FAA coden/a

Communication

Nur-Sultan Nazarbayev Intl ATIS127.700
Nur-Sultan Nazarbayev Intl Ground Control119.600
Nur-Sultan Nazarbayev Intl Tower118.700
Nur-Sultan Nazarbayev Intl Approach124.600

Approach frequencies

ILS-cat-IIIRW22111.718.00mi
ILS-cat-IIIRW04109.518.00mi
3° GSRW22111.718.00mi
3° GSRW04109.518.00mi

Runway info

Runway 04 / 22
 length3497m (11473ft)
 bearing57° / 237°
 width45m (148ft)
 surfaceasphalt
 blast zone122m (400ft) / 117m (384ft)

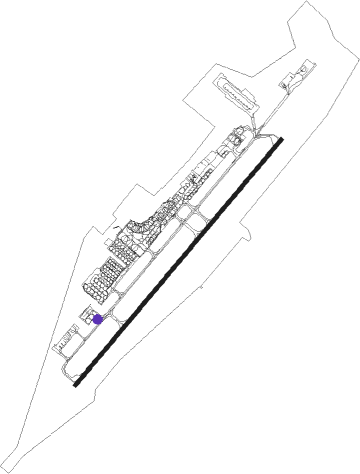

Airport layout - taxiway location P


Taxiway locations

 A  B  C  D  E  G  H  I
 J  K  L  M  P
Parking locations

 01M  02M  03M  04M  05M  06K  06M  07K
 07M  07R  08  08K  08L  08M  08R  09
 09K  09L  09M  09R  1  10  100  101
 102  103  103H  104  10M  11  11M  12
 12M  13  13M  14  14M  15  16  17
 18  19  1B  2  20  21  22  23
 24  25  26  27  28  29  2B  3
 30  31  32  33  37  38  39  3B
 4  40  41  42  43  44  45  46
 47  48  49  4B  5  50  6  7
 70  71  72  73  74  75  76  77
 78  79  7L  81  82  83  84  85
 86  87  88  89  90  91  92  93
 94  95  Eurasia  G1  G2

Nearby beacons

codeidentifierdistbearingfrequency
MNUR-SULTAN NDB1.5237°654
ASTNUR-SULTAN VOR/DME1.7237°114.40

Departure and arrival routes

Transition altitude3789ft
Transition level120ft
SID end pointsdistanceoutbound heading
RW04
 OLGA4E, OLGA1A65mi15°
 BOLS1A, BOLS4E57mi81°
 EDAN4E57mi85°
 BANO4E, BANO1A67mi125°
 GURP3E66mi193°
 KOKO1A, KOKO4E65mi230°
 VETU3E, VETU1A52mi255°
 OSRO4E56mi261°
 DIDA1A, DIDA4E65mi287°
 VAGE4E63mi336°
RW22
 OLGA4G, OLGA1B65mi15°
 BOLS3G, BOLS1B57mi81°
 EDAN3G57mi85°
 BEDK1B, BEDK3H, BEDK1E, BEDK4G57mi135°
 KOKO1B, KOKO3G65mi230°
 VETU4G52mi255°
 OSRO4G, OSRO1B56mi261°
 KODO4H, KODO4G, KODO1B59mi280°
 KOLU4G65mi321°
 VAGE4G63mi336°

STAR starting pointsdistanceinbound heading
RW04
 GURP1K, GURP1C65.813°
 KOKO3S64.750°
 VETU3S51.675°
 OSRO1K56.281°
 KODO1K59.2100°
 KOLU3S21.9128°
 VAGE3S, VAGE1K, VAGE1C62.9156°
 EDAN3S, EDAN1C, EDAN1K57.1265°
 BEDK3T, BEDK3S, BEDK1C, BEDK1K56.8315°
RW22
 GURP1H, GURP1D65.813°
 KOKO3N64.750°
 VETU2H, VETU2D, VETU3N51.675°
 DIDA3N, DIDA1G, DIDA1D64.6107°
 VAGE3N, VAGE1H, VAGE1D62.9156°
 OLGA3N64.7195°
 BOLS3N57.1261°
 EDAN3N, EDAN1H, EDAN1D57.1265°
 BANO1D, BANO1G, BANO3N67.3305°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BANO1DCC220VHFright143 (323)°17000ft - 20000ft1.5min timedICAO rules
BANO1DCC240VHFleft143 (323)°9800ft - 12000ft1.0min timedICAO rules
BANO3NASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
BEDK1CCC440VHFleft117 (297)°16000ft - 18000ft1.5min timedICAO rules
BEDK1CCC460VHFleft117 (297)°9800ft - 12000ft1.0min timedICAO rules
BEDK3SASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
BEDK3TASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
BEDK3TLIGMOVHFleft207 (27)°> 6000ft1.0min timedICAO rules
BOLS3NASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
DIDA1DASDEXVHFleft306 (126)°7500ft - 8500ft1.0min timedICAO rules
DIDA1DCC249VHFleft267 (87)°17000ft - 19000ft1.5min timedICAO rules
DIDA3NASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
EDAN1CCC450VHFleft61 (241)°16000ft - 20000ft1.5min timedICAO rules
EDAN1CCC460VHFleft117 (297)°9800ft - 12000ft1.0min timedICAO rules
EDAN1DCC232VHFleft62 (242)°15000ft - 18000ft1.5min timedICAO rules
EDAN1DCC240VHFleft143 (323)°9800ft - 12000ft1.0min timedICAO rules
EDAN3NASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
EDAN3SASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
GURP1CCC441VHFleft183 (3)°15000ft - 17000ft1.5min timedICAO rules
GURP1CCC460VHFleft117 (297)°9800ft - 12000ft1.0min timedICAO rules
GURP1DCC211VHFleft197 (17)°16000ft - 18000ft1.5min timedICAO rules
GURP1DCC240VHFleft143 (323)°9800ft - 12000ft1.0min timedICAO rules
KODO1CCC421VHFleft283 (103)°16000ft - 18000ft1.5min timedICAO rules
KODO1CCC424VHFleft307 (127)°7000ft - 9000ft1.0min timedICAO rules
KODO3SASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
KODO3TAPTUSVHFleft293 (113)°> 7000ft1.0min timedICAO rules
KODO3TASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
KOKO3NASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
KOKO3NLIGMOVHFleft207 (27)°> 6000ft1.0min timedICAO rules
KOKO3SASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
KOKO3SLIGMOVHFleft207 (27)°> 6000ft1.0min timedICAO rules
KOLU3SASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
KOLU3SIBLANVHFleft346 (166)°> 7000ft1.0min timedICAO rules
OLGA3NASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
OSRO1CCC424VHFleft307 (127)°7000ft - 9000ft1.0min timedICAO rules
OSRO1CCC430VHFleft240 (60)°15000ft - 16000ft1.5min timedICAO rules
VAGE1CCC410VHFright353 (173)°18000ft - 20000ft1.5min timedICAO rules
VAGE1CCC424VHFleft307 (127)°7000ft - 9000ft1.0min timedICAO rules
VAGE1DASDEXVHFleft306 (126)°7500ft - 8500ft1.0min timedICAO rules
VAGE1DCC250VHFright325 (145)°16000ft - 18000ft1.5min timedICAO rules
VAGE3NASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
VAGE3SASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
VAGE3SIBLANVHFleft346 (166)°> 7000ft1.0min timedICAO rules
VETU2DASDEXVHFleft306 (126)°7500ft - 8500ft1.0min timedICAO rules
VETU2DCC262VHFleft188 (8)°15000ft - 16000ft1.0min timedICAO rules
VETU3NASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
VETU3SASTNDBright215 (35)°> 6000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
