Airports for X-Plane

Shymkent

Airport details

CountryKazakhstan
StateSouth Kazakhstan Region
RegionUA
AirspaceShymkent Ctr
MunicipalityShymkent
Elevation1383ft (422m)
TimezoneGMT +6
Coordinates42.36818, 69.46725
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUAII
IATA codeCIT
FAA coden/a

Communication

Shymkent Tower125.900
Shymkent Tower124.600

Approach frequencies

ILS-cat-IRW10111.718.00mi
ILS-cat-IRW28110.318.00mi
3° GSRW10111.718.00mi
3° GSRW28110.318.00mi

Runway info

Runway 10 / 28
 length3293m (10804ft)
 bearing102° / 282°
 width44m (144ft)
 surfaceasphalt
 blast zone120m (394ft) / 121m (397ft)

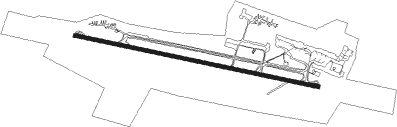

Airport layout


Taxiway locations

 A  P
Parking locations

 New

Nearby beacons

codeidentifierdistbearingfrequency
SMKSHYMKENT VOR/DME1.1279°113
ISHYMKENT NDB1.8104°733
TRKTURKISTAN VOR/DME69.5317°114.60

Departure and arrival routes

Transition altitude5000ft
Transition level7000ft
SID end pointsdistanceoutbound heading
RW10
 DONU5C22mi53°
 TURI5C28mi76°
 ADES6C20mi121°
 BOMK4E, BOMK6C21mi211°
 ARSU6C, ARSU4E28mi276°
 RUSE5C31mi312°
RW28
 DONU5D22mi53°
 TURI5D28mi76°
 ADES5D20mi121°
 BOMK5D21mi211°
 ARSU5D28mi276°
 RUSE5D31mi312°

STAR starting pointsdistanceinbound heading
RW10
 BEDN4H, BEDN3K22.04°
 BOMK3K, BOMK4H21.331°
 ARSU3K, ARSU4H28.396°
 RUSE4H, RUSE3K30.8132°
 DONU4H, DONU3K22.2233°
 TURI3K, TURI4H28.3256°
 ADES3K, ADES4H19.8301°
RW28
 BEDN4L, BEDN4G22.04°
 BOMK4G, BOMK4L21.331°
 ARSU4G, ARSU4L28.396°
 RUSE4G, RUSE4L30.8132°
 DONU4G, DONU4L22.2233°
 TURI4L, TURI4G28.3256°
 ADES4G, ADES4L19.8301°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADES3KIVHFleft35 (215)°> 6000ft1.0min timedICAO rules
ADES4GIVHFleft35 (215)°> 6000ft1.0min timedICAO rules
ADES4HSMKNDBright101 (281)°> 7000ft1.0min timedICAO rules
ADES4LSMKNDBright101 (281)°> 7000ft1.0min timedICAO rules
ARSU3KARSULVHFright273 (93)°> 7000ft1.0min timedICAO rules
ARSU3KIVHFleft35 (215)°> 6000ft1.0min timedICAO rules
ARSU4GARSULVHFright273 (93)°> 7000ft1.0min timedICAO rules
ARSU4GIVHFleft35 (215)°> 6000ft1.0min timedICAO rules
ARSU4HARSULVHFright273 (93)°> 7000ft1.0min timedICAO rules
ARSU4HSMKNDBright101 (281)°> 7000ft1.0min timedICAO rules
ARSU4LARSULVHFright273 (93)°> 7000ft1.0min timedICAO rules
ARSU4LSMKNDBright101 (281)°> 7000ft1.0min timedICAO rules
BEDN3KIVHFleft35 (215)°> 6000ft1.0min timedICAO rules
BEDN4GIVHFleft35 (215)°> 6000ft1.0min timedICAO rules
BEDN4HSMKNDBright101 (281)°> 7000ft1.0min timedICAO rules
BEDN4LSMKNDBright101 (281)°> 7000ft1.0min timedICAO rules
BOMK3KIVHFleft35 (215)°> 6000ft1.0min timedICAO rules
BOMK4GIVHFleft35 (215)°> 6000ft1.0min timedICAO rules
BOMK4HSMKNDBright101 (281)°> 7000ft1.0min timedICAO rules
BOMK4LSMKNDBright101 (281)°> 7000ft1.0min timedICAO rules
DONU3KIVHFleft35 (215)°> 6000ft1.0min timedICAO rules
DONU4GIVHFleft35 (215)°> 6000ft1.0min timedICAO rules
DONU4HSMKNDBright101 (281)°> 7000ft1.0min timedICAO rules
DONU4LSMKNDBright101 (281)°> 7000ft1.0min timedICAO rules
RUSE3KIVHFleft35 (215)°> 6000ft1.0min timedICAO rules
RUSE4GIVHFleft35 (215)°> 6000ft1.0min timedICAO rules
RUSE4HSMKNDBright101 (281)°> 7000ft1.0min timedICAO rules
RUSE4LSMKNDBright101 (281)°> 7000ft1.0min timedICAO rules
TURI3KIVHFleft35 (215)°> 6000ft1.0min timedICAO rules
TURI4GIVHFleft35 (215)°> 6000ft1.0min timedICAO rules
TURI4HSMKNDBright101 (281)°> 7000ft1.0min timedICAO rules
TURI4LSMKNDBright101 (281)°> 7000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
