Airports for X-Plane

Karagandy - Sary-arka Intl

Airport details

CountryKazakhstan
StateKaraganda Region
RegionUA
AirspaceNur-sultan Ctr
MunicipalityBukhar-Zhyrau District
Elevation1767ft (539m)
TimezoneGMT +6
Coordinates49.67167, 73.33528
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUAKK
IATA codeKGF
FAA coden/a

Communication

Sary-Arka Intl Karaganda ATIS135.800
Sary-Arka Intl Karaganda Tower122.000

Approach frequencies

ILS-cat-IRW23111.718.00mi
ILS-cat-IRW05109.918.00mi
3° GSRW23111.718.00mi
3° GSRW05109.918.00mi

Runway info

Runway 05 / 23
 length3597m (11801ft)
 bearing68° / 248°
 width60m (197ft)
 surfaceconcrete
 blast zone115m (377ft) / 120m (394ft)

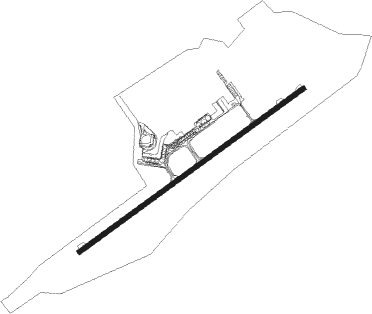

Airport layout


Taxiway locations

 1
Parking locations

 01  02  03  04  05  06  07  08
 09  10  11  12  13  14  15  16
 17  18  19  20  21

Nearby beacons

codeidentifierdistbearingfrequency
KKARAGANDA NDB1.468°618
KRGKARAGANDA VOR/DME1.768°113.40

Departure and arrival routes

Transition altitude10000ft
SID end pointsdistanceoutbound heading
RW05
 GEDN6E, GEDN3A49mi44°
 UNLO2E, UNLO2A46mi55°
 GOLT2E, GOLT2A45mi68°
 SULI3A, SULI3E45mi83°
 ARLI2E, ARLI2A45mi101°
 NEMK2E, NEMK2A45mi146°
 DOZI2E, DOZI2A45mi252°
 SEHA2E, SEHA2A45mi278°
 BEDK6E, BEDK3A53mi297°
 BANO3A, BANO6E41mi307°
 LESN6E, LESN3A38mi319°
 DETO3A, DETO6E36mi348°
RW23
 GEDN6G, GEDN3D49mi44°
 UNLO2D, UNLO2G46mi55°
 GOLT2D, GOLT2G45mi68°
 SULI3D, SULI3G45mi83°
 ARLI2D, ARLI2G45mi101°
 NEMK2G, NEMK2D45mi146°
 DOZI2G, DOZI2D45mi252°
 SEHA2G, SEHA2D45mi278°
 BEDK6G, BEDK3D53mi297°
 BANO3D, BANO6G41mi307°
 LESN6G, LESN3D38mi319°
 DETO6G, DETO3D36mi348°

STAR starting pointsdistanceinbound heading
RW05
 DOZI1C, DOZI2B44.972°
 SEHA1C, SEHA2B44.898°
 BEDK4C, BEDK6B53.0117°
 BANO4C, BANO6B40.8127°
 LESN4C, LESN6B37.6139°
 DETO6B, DETO4C35.9168°
 GEDN4C, GEDN5B49.3224°
 UNLO1C, UNLO2B46.2235°
 GOLT2B, GOLT1C44.9248°
 SULI3B, SULI2C44.8263°
 ARLI2B, ARLI1C44.8281°
 NEMK1C, NEMK2B44.9326°
RW23
 DOZI2H, DOZI1L44.972°
 SEHA2H, SEHA1L44.898°
 BEDK3L, BEDK6H53.0117°
 BANO6H, BANO3L40.8127°
 LESN3L, LESN6H37.6139°
 DETO3L, DETO6H35.9168°
 GEDN3L, GEDN6H49.3224°
 UNLO1L, UNLO2H46.2235°
 GOLT2H, GOLT1L44.9248°
 SULI2L, SULI3H44.8263°
 ARLI2H, ARLI1L44.8281°
 NEMK2H, NEMK1L44.9326°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARLI1CKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
ARLI1LKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
ARLI2BKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
ARLI2HKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
BANO3LKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
BANO4CKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
BANO6BKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
BANO6HKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
BEDK3LKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
BEDK4CKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
BEDK6BKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
BEDK6HKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
DETO3LKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
DETO4CKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
DETO6BKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
DETO6HKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
DOZI1CKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
DOZI1LKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
DOZI2BKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
DOZI2HKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
GEDN3LKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
GEDN4CKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
GEDN5BKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
GEDN6HKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
GOLT1CKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
GOLT1LKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
GOLT2BKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
GOLT2HKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
LESN3LKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
LESN4CKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
LESN6BKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
LESN6HKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
NEMK1CKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
NEMK1LKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
NEMK2BKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
NEMK2HKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
SEHA1CKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
SEHA1LKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
SEHA2BKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
SEHA2HKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
SULI2CKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
SULI2LKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
SULI3BKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
SULI3HKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
UNLO1CKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
UNLO1LKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
UNLO2BKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
UNLO2HKRGNDBright230 (50)°> 7000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
