Nakhchivan

Airport details

Country	Azerbaijan
State	Naxcivan
Region	UB
Airspace	Yerevan Ctr
Municipality	Babek District
Elevation	2861ft (872m)
Timezone	GMT +4
Coordinates	39.18912, 45.45288
Magnetic var	6.4°
Type	land
Available since	X-Plane v10.40
ICAO code	UBBN
IATA code	NAJ
FAA code	n/a

Communication

Nakhchivan ATIS	127.500
Nakhchivan Tower	118.200
Nakhchivan Approach	118.200

Approach frequencies

ILS-cat-I	RW32L	111.1	18.00mi
ILS-cat-I	RW32R	109.1	18.00mi
ILS-cat-I	RW14R	111.7	18.00mi
ILS-cat-I	RW14L	109.5	18.00mi
3° GS	RW32L	111.1	18.00mi
3° GS	RW32R	109.1	18.00mi
3° GS	RW14R	111.7	18.00mi
3° GS	RW14L	109.5	18.00mi

Nearby Points of Interest:

Momine Khatun Mausoleum

Church of the Holy Mother of God (Darresham)

Armenian Monastic Ensembles of Iran

Churs Icehouse

Mozrov Cave

Runway info

Runway 14L / 32R
	length	3303m (10837ft)
	bearing	131° / 311°
	width	42m (138ft)
	surface	asphalt
	displ threshold	0m (0ft) / 305m (1001ft)
	blast zone	30m (98ft) / 0m (0ft)
Runway 14R / 32L
	length	3299m (10823ft)
	bearing	130° / 310°
	width	45m (148ft)
	surface	concrete
	displ threshold	0m (0ft) / 114m (374ft)
	blast zone	70m (230ft) / 59m (194ft)

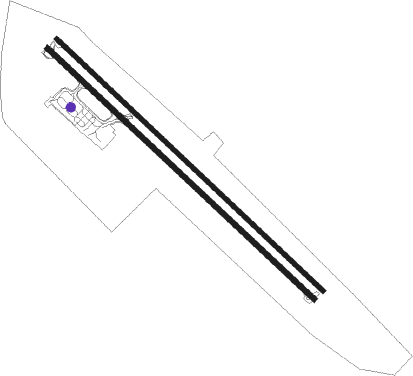

Airport layout - parking location 7

Parking locations

Recommended scenery file

Type	3D
Author	ArCher
Released	23 Feb 2024
Included since	X-Plane v12.1.2

Nearby beacons

code	identifier	dist	bearing	frequency
NAX	NAKHCHIVAN VOR/DME	0.9	316°	116.50
NO	NAKHCHIVAN NDB	2.1	126°	493
MAK	MAKU VOR/DME	23.7	270°	112.40
AND	ANDRANIK NDB	44	324°
KHY	KHOY VOR/DME	50.7	213°	114.90
KHY	KHOY NDB	50.9	212°	288
ER	EREBUNI (YEREVAN) NDB	72.9	315°	496

Departure and arrival routes

Transition altitude

12000ft

Transition level

13000ft

SID end points		distance	outbound heading
RW14 (ALL)
	DULA3A, DULA3C	17mi	143°
	TUXA1C, TUXA1A	45mi	306°
	NEGA3A, NEGA3C	40mi	322°
	IRLA3C, IRLA3A	19mi	358°
RW32 (ALL)
	DULA2B, DULA2D	17mi	143°
	TUXA1B, TUXA1D	45mi	306°
	NEGA2B, NEGA2D	40mi	322°
	IRLA2D, IRLA2B	19mi	358°

STAR starting points		distance	inbound heading
RW14L
	TUXA1E	45.3	126°
	NEGA2E	39.7	142°
	IRLA2E	19.3	178°
	DULA2E, DULA3E	16.6	323°
RW14R
	TUXA1G	45.3	126°
	NEGA2G	39.7	142°
	IRLA2G	19.3	178°
	DULA3G, DULA2G	16.6	323°
RW32L
	TUXA1H	45.3	126°
	NEGA2H	39.7	142°
	IRLA2H	19.3	178°
	DULA2H	16.6	323°
RW32R
	TUXA1F	45.3	126°
	NEGA2F	39.7	142°
	IRLA2F	19.3	178°
	DULA2F	16.6	323°
