Airports for X-Plane

Nogliki

Airport details

CountryRussian Federation
StateSakhalin Oblast
RegionUH
AirspaceKhabarovsk Ctr
MunicipalityNogliki
Elevation126ft (38m)
TimezoneGMT +11
Coordinates51.78389, 143.14194
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUHSN
IATA codeNGK
FAA coden/a

Communication

Nogliki Tower132.000

Approach frequencies

ILS-cat-IRW22108.118.00mi
2.7° GSRW22108.118.00mi

Runway info

Runway 04 / 22
 length1749m (5738ft)
 bearing36° / 216°
 width35m (115ft)
 surfaceasphalt

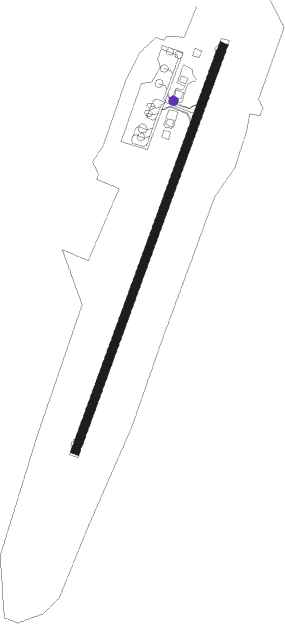

Airport layout - taxiway location A


Taxiway locations

 A
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
JNOGLIKI NDB136°475
JDNOGLIKI NDB2.336°750

Departure and arrival routes

Transition altitude4100ft
SID end pointsdistanceoutbound heading
RW04
 KESIK124mi199°
 NERLI120mi270°
 VITIM118mi289°
 ANGAR119mi352°
RW22
 KESIK224mi199°
 NERLI220mi270°
 VITIM218mi289°
 ANGAR219mi352°

STAR starting pointsdistanceinbound heading
RW04
 NERL1A, NERL1G20.190°
 VITI1A17.5109°
RW22
 NERL2W, NERL2G, NERL2A20.190°
 VITI2A, VITI2W17.5109°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04SN311 (27°)SN311 4070ft
SN313 (5mi, 7°) 2100ft
RW04SN312 (65°)SN312 3090ft
SN313 (5mi, 106°) 2100ft
RW04SN315 (354°)SN315 2100ft
SN313 (5mi, 286°) 2100ft
 RNAVSN313 2100ft
SN314 (5mi, 36°) 1440ft
UHSN (4mi, 36°) 178ft
(7187mi, 250°) 790ft
SN315 (7195mi, 70°) 2100ft
RW22SN411 (185°)SN411 3060ft
SN413 (6mi, 136°) 1420ft
RW22SN412 (176°)SN412 2080ft
SN413 (5mi, 106°) 1420ft
RW22SN415 (244°)SN415 2080ft
SN413 (5mi, 286°) 1420ft
 RNAVSN413 1420ft
SN414 (5mi, 217°) 1420ft
UHSN (5mi, 216°) 153ft
(7187mi, 250°) 760ft
SN415 (7188mi, 70°) 2080ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ANGA1AJFIXright216 (36)°6000ft - 8000ft1.0min timed230
ANGA1GSN312VHFright321 (141)°> 4070ft1.0min timedICAO rules
ANGA2AJFIXright216 (36)°6000ft - 8000ft1.0min timed230
ANGA2GSN411VHFright341 (161)°> 4070ft1.0min timedICAO rules
ANGA2WJDFIXleft36 (216)°6000ft - 8000ft1.0min timed230
KESI1AJFIXright216 (36)°6000ft - 8000ft1.0min timed230
KESI1GSN311VHFright196 (16)°> 4070ft1.0min timedICAO rules
KESI2AJFIXright216 (36)°6000ft - 8000ft1.0min timed230
KESI2WJDFIXleft36 (216)°6000ft - 8000ft1.0min timed230
NERL1AJFIXright216 (36)°6000ft - 8000ft1.0min timed230
NERL1GSN312VHFright321 (141)°> 4070ft1.0min timedICAO rules
NERL2AJFIXright216 (36)°6000ft - 8000ft1.0min timed230
NERL2WJDFIXleft36 (216)°6000ft - 8000ft1.0min timed230
VITI1AJFIXright216 (36)°6000ft - 8000ft1.0min timed230
VITI2AJFIXright216 (36)°6000ft - 8000ft1.0min timed230
VITI2WJDFIXleft36 (216)°6000ft - 8000ft1.0min timed230
*) magnetic outbound (inbound) holding course
