Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

government train asphalt takeoff drome railway station hangar plane airport terminal newark airplane airspace airstrip airports automated airport weather station flight attendant arrival pilot military air traffic control

Airports for X-Plane

Bratsk

Airport details

CountryRussian Federation
StateIrkutsk Oblast
RegionUI
AirspaceIrkutsk Ctr
MunicipalityКобляковское сельское поселение
Elevation1609ft (490m)
TimezoneGMT +8
Coordinates56.37056, 101.69861
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUIBB
IATA codeBTK
FAA coden/a

Communication

Bratsk ATIS127.200
Bratsk Ground121.800
Bratsk Tower118.100

Approach frequencies

ILS-cat-IIRW30110.318.00mi
3° GSRW30110.318.00mi

Runway info

Runway 12 / 30
 length3151m (10338ft)
 bearing104° / 284°
 width60m (197ft)
 surfaceconcrete
 blast zone76m (249ft) / 75m (246ft)

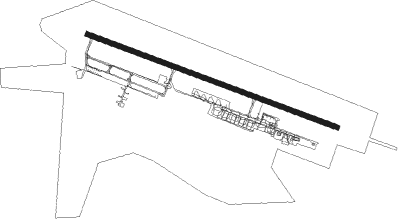

Airport layout


Taxiway locations

 B  C  D  MAIN

Nearby beacons

codeidentifierdistbearingfrequency
BRTBRATSK VOR/DME0.4277°113.60
GBRATSK NDB1.3284°755
BBRATSK NDB1.4104°755
BSBRATSK NDB2.8104°374
GGBRATSK NDB3.1284°374

Departure and arrival routes

Transition altitude4564ft
SID end pointsdistanceoutbound heading
RW12
 NUGM5C, NUGMA359mi23°
 RIMU5C, RIMUL359mi57°
 UDEG5C, UDEGA359mi76°
 NEGUT3, NEGU5C63mi87°
 NALIL3, NALI5C59mi91°
 LIDKA3, LIDK5C59mi143°
 LASLA3, LASL5C59mi241°
 ASBO5C, ASBO5E, ASBOK359mi263°
 LIRB5E, LIRB5C, LIRBI359mi285°
 ARTU5E, ARTUL3, ARTU5C59mi296°
 BEKO5C, BEKO5E, BEKOM359mi310°
 GOMA5C, GOMAK359mi348°
RW30
 NUGMA1, NUGM5D59mi23°
 RIMU5D, RIMUL159mi57°
 UDEG5D, UDEGA1, UDEG5G59mi76°
 NEGUT1, NEGU5G, NEGU5D63mi87°
 NALI5G, NALI5D, NALIL159mi91°
 LIDKA1, LIDK5G, LIDK5D59mi143°
 LASL5D, LASLA159mi241°
 ASBO5D, ASBOK159mi263°
 LIRBI1, LIRB5D59mi285°
 ARTU5D, ARTUL159mi296°
 BEKO5D, BEKOM159mi310°
 GOMA5D, GOMAK159mi348°

STAR starting pointsdistanceinbound heading
RW12
 LASL5A59.361°
 ASBO5A59.283°
 LIRB5A59.3105°
 ARTU5A59.3116°
 BEKO5A59.3130°
 GOMA5A59.3168°
 NUGM5A59.4203°
 RIMU5A59.3237°
 UDEG5A59.2256°
 NEGU5A, NEGUT463.4267°
 NALI5A58.9271°
 GIMED4, GIME5H, GIME5A56.6348°
RW30
 LASL5F, LASL5B59.361°
 ASBO5B59.283°
 LIRB5B59.3105°
 ARTU5B59.3116°
 BEKO5B59.3130°
 GOMA5B59.3168°
 NUGM5B59.4203°
 RIMU5B59.3237°
 UDEG5B59.2256°
 NEGU5B, NEGUT263.4267°
 NALI5B58.9271°
 GIME5B, GIMED256.6348°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12BB001 (88°)BB001
BB004 (6mi, 40°) 4240ft
RW12BB002 (104°)BB002
BB004 (6mi, 104°) 4240ft
RW12BB003 (127°)BB003
BB004 (6mi, 220°) 4240ft
 RNAVBB004 4240ft
BB005 (5mi, 104°) 3250ft
BB061 (4mi, 104°) 1904ft
(5791mi, 241°) 2600ft
BB006 (5788mi, 61°)
BB003 (4mi, 284°) 4570ft
RW30BB011 (271°)BB011
BB010 (6mi, 232°) 4230ft
RW30BB012 (285°)BB012
BB010 (6mi, 285°) 4230ft
RW30BB013 (305°)BB013
BB010 (6mi, 40°) 4230ft
 RNAVBB010 4230ft
BB009 (5mi, 285°) 3580ft
UIBB (7mi, 284°) 1656ft
(5792mi, 241°) 2590ft
BB014 (5801mi, 61°)
BB011 (6mi, 112°) 4570ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARTU5BBB011VHFleft358 (178)°3900ft - 9000ft1.0min timed230
BEKO5BBB011VHFleft358 (178)°3900ft - 9000ft1.0min timed230
GOMA5ABB003VHFright87 (267)°3910ft - 9000ft1.0min timed270
GOMA5BBB011VHFleft358 (178)°3900ft - 9000ft1.0min timed230
LIRB5BBB011VHFleft358 (178)°3900ft - 9000ft1.0min timed230
NALI5ABB003VHFright87 (267)°3910ft - 9000ft1.0min timed270
NEGU5ABB003VHFright87 (267)°3910ft - 9000ft1.0min timed270
NUGM5ABB003VHFright87 (267)°3910ft - 9000ft1.0min timed270
NUGM5BBB011VHFleft358 (178)°3900ft - 9000ft1.0min timed230
RIMU5ABB003VHFright87 (267)°3910ft - 9000ft1.0min timed270
RIMU5BBB011VHFleft358 (178)°3900ft - 9000ft1.0min timed230
UDEG5ABB003VHFright87 (267)°3910ft - 9000ft1.0min timed270
UDEG5BBB011VHFleft358 (178)°3900ft - 9000ft1.0min timed230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
