Airports for X-Plane

Bratsk

Airport details

CountryRussian Federation
StateIrkutsk Oblast
RegionUI
AirspaceIrkutsk Ctr
MunicipalityКобляковское сельское поселение
Elevation1609ft (490m)
TimezoneGMT +8
Coordinates56.37056, 101.69861
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUIBB
IATA codeBTK
FAA coden/a

Communication

Bratsk ATIS127.200
Bratsk Ground121.800
Bratsk Tower118.100

Approach frequencies

ILS-cat-IIRW30110.318.00mi
3° GSRW30110.318.00mi

Runway info

Runway 12 / 30
 length3151m (10338ft)
 bearing104° / 284°
 width60m (197ft)
 surfaceconcrete
 blast zone76m (249ft) / 75m (246ft)

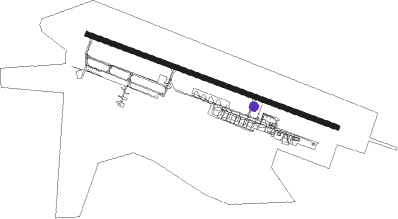

Airport layout - taxiway location C


Taxiway locations

 B  C  D  MAIN

Nearby beacons

codeidentifierdistbearingfrequency
BRTBRATSK VOR/DME0.4277°113.60
GBRATSK NDB1.3284°755
BBRATSK NDB1.4104°755
BSBRATSK NDB2.8104°374
GGBRATSK NDB3.1284°374

Departure and arrival routes

Transition altitude4564ft
SID end pointsdistanceoutbound heading
RW12
 NUGM5C, NUGMA359mi23°
 RIMU5C, RIMUL359mi57°
 UDEG5C, UDEGA359mi76°
 NEGUT3, NEGU5C63mi87°
 NALIL3, NALI5C59mi91°
 LIDKA3, LIDK5C59mi143°
 LASLA3, LASL5C59mi241°
 ASBO5C, ASBO5E, ASBOK359mi263°
 LIRB5E, LIRB5C, LIRBI359mi285°
 ARTU5E, ARTUL3, ARTU5C59mi296°
 BEKO5C, BEKO5E, BEKOM359mi310°
 GOMA5C, GOMAK359mi348°
RW30
 NUGMA1, NUGM5D59mi23°
 RIMU5D, RIMUL159mi57°
 UDEG5D, UDEGA1, UDEG5G59mi76°
 NEGUT1, NEGU5G, NEGU5D63mi87°
 NALI5G, NALI5D, NALIL159mi91°
 LIDKA1, LIDK5G, LIDK5D59mi143°
 LASL5D, LASLA159mi241°
 ASBO5D, ASBOK159mi263°
 LIRBI1, LIRB5D59mi285°
 ARTU5D, ARTUL159mi296°
 BEKO5D, BEKOM159mi310°
 GOMA5D, GOMAK159mi348°

STAR starting pointsdistanceinbound heading
RW12
 LASL5A59.361°
 ASBO5A59.283°
 LIRB5A59.3105°
 ARTU5A59.3116°
 BEKO5A59.3130°
 GOMA5A59.3168°
 NUGM5A59.4203°
 RIMU5A59.3237°
 UDEG5A59.2256°
 NEGU5A, NEGUT463.4267°
 NALI5A58.9271°
 GIMED4, GIME5H, GIME5A56.6348°
RW30
 LASL5F, LASL5B59.361°
 ASBO5B59.283°
 LIRB5B59.3105°
 ARTU5B59.3116°
 BEKO5B59.3130°
 GOMA5B59.3168°
 NUGM5B59.4203°
 RIMU5B59.3237°
 UDEG5B59.2256°
 NEGU5B, NEGUT263.4267°
 NALI5B58.9271°
 GIME5B, GIMED256.6348°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12BB001 (88°)BB001
BB004 (6mi, 40°) 4240ft
RW12BB002 (104°)BB002
BB004 (6mi, 104°) 4240ft
RW12BB003 (127°)BB003
BB004 (6mi, 220°) 4240ft
 RNAVBB004 4240ft
BB005 (5mi, 104°) 3250ft
BB061 (4mi, 104°) 1904ft
(5791mi, 241°) 2600ft
BB006 (5788mi, 61°)
BB003 (4mi, 284°) 4570ft
RW30BB011 (271°)BB011
BB010 (6mi, 232°) 4230ft
RW30BB012 (285°)BB012
BB010 (6mi, 285°) 4230ft
RW30BB013 (305°)BB013
BB010 (6mi, 40°) 4230ft
 RNAVBB010 4230ft
BB009 (5mi, 285°) 3580ft
UIBB (7mi, 284°) 1656ft
(5792mi, 241°) 2590ft
BB014 (5801mi, 61°)
BB011 (6mi, 112°) 4570ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARTU5BBB011VHFleft358 (178)°3900ft - 9000ft1.0min timed230
BEKO5BBB011VHFleft358 (178)°3900ft - 9000ft1.0min timed230
GOMA5ABB003VHFright87 (267)°3910ft - 9000ft1.0min timed270
GOMA5BBB011VHFleft358 (178)°3900ft - 9000ft1.0min timed230
LIRB5BBB011VHFleft358 (178)°3900ft - 9000ft1.0min timed230
NALI5ABB003VHFright87 (267)°3910ft - 9000ft1.0min timed270
NEGU5ABB003VHFright87 (267)°3910ft - 9000ft1.0min timed270
NUGM5ABB003VHFright87 (267)°3910ft - 9000ft1.0min timed270
NUGM5BBB011VHFleft358 (178)°3900ft - 9000ft1.0min timed230
RIMU5ABB003VHFright87 (267)°3910ft - 9000ft1.0min timed270
RIMU5BBB011VHFleft358 (178)°3900ft - 9000ft1.0min timed230
UDEG5ABB003VHFright87 (267)°3910ft - 9000ft1.0min timed270
UDEG5BBB011VHFleft358 (178)°3900ft - 9000ft1.0min timed230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
