Airports for X-Plane

Lviv - Lviv Intl

Airport details

CountryUkraine
StateLviv Oblast
RegionUK
AirspaceLviv Ctr
MunicipalityLviv
Elevation1069ft (326m)
TimezoneGMT +2
Coordinates49.81935, 23.94845
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUKLL
IATA codeLWO
FAA coden/a

Communication

Lviv Intl ATIS128.700
Lviv Intl Tower128.000
Lviv Intl RADAR126.000

Approach frequencies

ILS-cat-IIRW13109.518.00mi
ILS-cat-IIRW31110.318.00mi
3° GSRW13109.518.00mi
3° GSRW31110.318.00mi
Nearby Points of Interest:
50-76 Stryiska Street, Lviv
-
8 Heroiv Maidanu Street, Lviv
-
6 Heroiv Maidanu Street, Lviv
-
36-42 Stryiska Street, Lviv
-
Prague Bank House (Lviv)
-
2 Virmenska Street, Lviv
-
2 Cathedral Square, Lviv
-
7-8 Cathedral Square, Lviv
-
6 Cathedral Square, Lviv
-
6 Virmenska Street, Lviv
-
5 Cathedral Square, Lviv
-
8 Staroievreiska Street, Lviv
-
7 Staroievreiska Street, Lviv
-
10 Staroievreiska Street, Lviv
-
Besyadetski Palace, Lviv
-
12 Virmenska Street, Lviv
-
16 Staroievreiska Street, Lviv
-
18 Staroievreiska Street, Lviv
-
Saint Christopher's column, Lviv
-
Old Town of Lviv
-
17 Staroievreiska Street, Lviv
-
16 Virmenska Street, Lviv

Runway info

Runway 13 / 31
 length3301m (10830ft)
 bearing124° / 304°
 width45m (148ft)
 surfaceasphalt
 displ threshold408m (1339ft) / 120m (394ft)
 blast zone64m (210ft) / 0m (0ft)

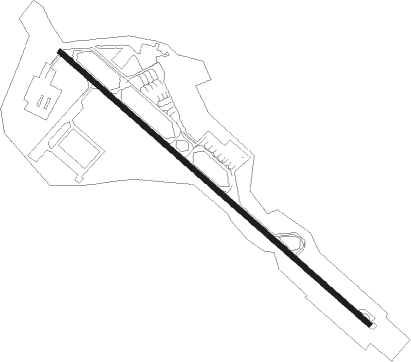

Airport layout


Taxiway locations

 1  2  3  4  5  6  7  8
Parking locations

 G1  G2  G3  G4  G5  G6  G7  G8
 G9  M2

Nearby beacons

codeidentifierdistbearingfrequency
LIVLVIV VOR/DME0.4158°115.50
IVFIVANO-FRANKIVSK VOR/DME63.2142°114.20
VIVERHNIE NDB63.5226°334
FNIVANO-FRANKIVSK NDB63.9141°598

Departure and arrival routes

Transition altitude10007ft
SID end pointsdistanceoutbound heading
RW13
 KOVU2A, KOVU1F22mi42°
 GIDN3A, GIDN1F83mi82°
 ADBA3A, ADBA1F56mi91°
 GORK1F, GORK3A45mi101°
 KUSA8A, KUSA1F36mi131°
 KOKU1F, KOKU4A21mi225°
 DIBE7A, DIBE1F35mi274°
 GOTI5A, GOTI2F31mi285°
RW31
 KOVU1G, KOVU3B22mi42°
 GIDN2B, GIDN1G83mi82°
 ADBA2B, ADBA1G56mi91°
 GORK1G, GORK2B45mi101°
 KUSA1G, KUSA7B36mi131°
 KOKU1G, KOKU4B21mi225°
 DIBE8B, DIBE1G35mi274°
 GOTI5B, GOTI2G31mi285°

STAR starting pointsdistanceinbound heading
RW13
 KOKU2H20.845°
 TEPN2C, TEPN2H53.676°
 DIBE7C, DIBE2H34.794°
 ROLK1H, ROLK2C35.4168°
 KOVU1H, KOVU4C22.4222°
 ADBA1H, ADBA2C55.9271°
 GORK2C, GORK1H45.4281°
 KUSA7C, KUSA2H35.7311°
RW31
 KOKU1J, KOKU1D20.845°
 TEPN2D, TEPN1J53.676°
 DIBE7D, DIBE1J34.794°
 ROLK1J, ROLK2D35.4168°
 KOVU1D, KOVU1J22.4222°
 ADBA1J, ADBA2D55.9271°
 GORK1J, GORK2D45.4281°
 KUSA7D, KUSA1J35.7311°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADBA1HLLE01VHFright101 (281)°> 8040ft1.0min timedICAO rules
ADBA1JLLE01VHFright101 (281)°> 8040ft1.0min timedICAO rules
ADBA2CADBANVHFright86 (266)°> 10010ft1.0min timedICAO rules
ADBA2CLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
ADBA2DADBANVHFright86 (266)°> 10010ft1.0min timedICAO rules
ADBA2DLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
DIBE1JKOKUPVHFright211 (31)°> 6240ftDME 4.8miICAO rules
DIBE7CLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
DIBE7DLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
GORK1HGORKUVHFright146 (326)°> 10010ft1.0min timedICAO rules
GORK1HLLE01VHFright101 (281)°> 8040ft1.0min timedICAO rules
GORK1JGORKUVHFright146 (326)°> 10010ft1.0min timedICAO rules
GORK2CGORKUVHFright146 (326)°> 10010ft1.0min timedICAO rules
GORK2CLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
GORK2DGORKUVHFright146 (326)°> 10010ft1.0min timedICAO rules
GORK2DLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
KOKU1DKOKUPVHFright211 (31)°> 6240ftDME 4.8miICAO rules
KOKU1DLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
KOKU1JKOKUPVHFright211 (31)°> 6240ftDME 4.8miICAO rules
KOKU2HKOKUPVHFright211 (31)°> 6240ftDME 4.8miICAO rules
KOKU4CKOKUPVHFright211 (31)°> 6240ftDME 4.8miICAO rules
KOKU4CLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
KOVU1DKOVUSVHFright52 (232)°> 8040ft1.0min timedICAO rules
KOVU1DLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
KOVU1HKOVUSVHFright52 (232)°> 8040ft1.0min timedICAO rules
KOVU1JKOVUSVHFright52 (232)°> 8040ft1.0min timedICAO rules
KOVU4CKOVUSVHFright52 (232)°> 8040ft1.0min timedICAO rules
KOVU4CLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
KUSA1JKUSAKVHFright104 (284)°> 8040ft1.0min timedICAO rules
KUSA2HKOKUPVHFright211 (31)°> 6240ftDME 4.8miICAO rules
KUSA2HKUSAKVHFright104 (284)°> 8040ft1.0min timedICAO rules
KUSA7CKUSAKVHFright104 (284)°> 8040ft1.0min timedICAO rules
KUSA7CLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
KUSA7DKUSAKVHFright104 (284)°> 8040ft1.0min timedICAO rules
KUSA7DLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
ROLK1HKOVUSVHFright52 (232)°> 8040ft1.0min timedICAO rules
ROLK1JKOVUSVHFright52 (232)°> 8040ft1.0min timedICAO rules
ROLK2CLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
ROLK2DLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
TEPN1JKOKUPVHFright211 (31)°> 6240ftDME 4.8miICAO rules
TEPN2CLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
TEPN2DLIVNDBright310 (130)°> 2960ft1.0min timedICAO rules
TEPN2HKOKUPVHFright211 (31)°> 6240ftDME 4.8miICAO rules
*) magnetic outbound (inbound) holding course
