Airports for X-Plane

Naryan Mar - Naryan-mar

Airport details

CountryRussian Federation
StateNenets Autonomous Okrug
RegionUL
AirspaceArkhangelsk Ctr
MunicipalityNar'yan-Mar
Elevation41ft (12m)
TimezoneGMT +3
Coordinates67.64027, 53.12194
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeULAM
IATA codeNNM
FAA coden/a

Communication

Naryan-Mar Tower127.000
Naryan-Mar Departure127.000

Approach frequencies

ILS-cat-IRW24109.518.00mi
3° GSRW24109.518.00mi
Nearby Points of Interest:
Pustozyorsk

Runway info

Runway 06 / 24
 length2553m (8376ft)
 bearing87° / 267°
 width40m (131ft)
 surfaceconcrete
Runway 03 / 21
 length769m (2523ft)
 bearing72° / 252°
 width52m (171ft)
 surfacedirt
Runway 12 / 30
 length737m (2418ft)
 bearing112° / 292°
 width60m (197ft)
 surfacedirt

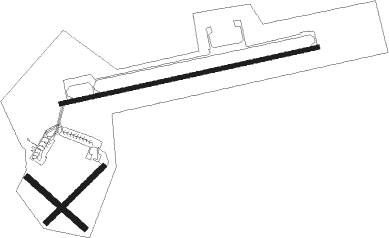

Airport layout


Taxiway locations

 5  7
Parking locations

 Stand

Nearby beacons

codeidentifierdistbearingfrequency
NRMNARYAN-MAR VOR/DME0.2259°112.30
GNARYAN-MAR NDB1.1267°332
RNARYAN-MAR NDB1.387°332
RKNARYAN-MAR NDB2.687°680
GANARYAN-MAR NDB3267°680

Departure and arrival routes

Transition altitude2011ft
Transition level4000ft
SID end pointsdistanceoutbound heading
RW06
 GOSU1E, GOSU1C, GOSU1A54mi74°
 AGOD1E, AGOD1C, AGOD1A54mi89°
 SOKD1E, SOKD1A, SOKD1C55mi110°
 LAGO1A, LAGO1C, LAGO1E48mi120°
 NIKD1E, NIKD1C, NIKD1A45mi170°
 KEKU1C, KEKU1A, KEKU1E48mi204°
 LUSE1E, LUSE1C, LUSE1A54mi247°
 SORI1E, SORI1C, SORI1A54mi261°
 LUMO1A, LUMO1C, LUMO1E54mi351°
RW24
 GOSU1F, GOSU1D, GOSU1B54mi74°
 AGOD1F, AGOD1D, AGOD1B54mi89°
 SOKD1F, SOKD1D, SOKD1B55mi110°
 LAGO1F, LAGO1D, LAGO1B48mi120°
 NIKD1F, NIKD1D, NIKD1B45mi170°
 KEKU1F, KEKU1B, KEKU1D48mi204°
 LUSE1B, LUSE1F, LUSE1D54mi247°
 SORI1B, SORI1D, SORI1F54mi261°
 LUMO1D, LUMO1B, LUMO1F54mi351°

STAR starting pointsdistanceinbound heading
RW06
 KEKU1P, KEKU1L47.624°
 NULG1P57.654°
 SORI1L53.881°
 LUMO1P53.8171°
 GOSU1L53.7254°
 AGOD1P, AGOD1L53.8269°
 SOKD1P, SOKD1L, SOKD1J, SOKD1G54.9290°
 LAGO1P, LAGO1L48.2300°
 NIKD1L44.7350°
RW24
 NULG1L57.654°
 SORI1Q53.881°
 LUMO1L53.8171°
 AGOD1L53.8269°
 SOKD1L, SOKD1K54.9290°
 NIKD1H44.7350°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06AM003 (72°)AM003
AM002 (6mi, 340°) 2200ft
RW06AM004 (87°)AM004
AM002 (6mi, 87°) 2200ft
RW06AM005 (100°)AM005
AM002 (6mi, 160°) 2200ft
 RNAVAM002 2200ft
AM001 (5mi, 87°) 1300ft
ULAM (5mi, 87°) 80ft
(4613mi, 218°) 1100ft
AM006 (4609mi, 38°)
AM003 (9mi, 267°) 1400ft
RW24AM009 (252°)AM009
AM008 (6mi, 160°) 2200ft
RW24AM010 (267°)AM010
AM008 (6mi, 267°) 2200ft
RW24AM011 (280°)AM011
AM008 (6mi, 340°) 2200ft
 RNAVAM008 2200ft
AM007 (5mi, 267°) 1300ft
ULAM (4mi, 267°) 91ft
(4613mi, 218°) 1100ft
AM012 (4611mi, 38°)
AM011 (9mi, 87°) 1500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGOD1GGAFIXleft26 (206)°1400ft - 20000ft1.0min timedICAO rules
AGOD1HRKFIXleft207 (27)°1400ft - 20000ft1.0min timedICAO rules
AGOD1JGFIXleft32 (212)°1400ft - 20000ft1.0min timedICAO rules
AGOD1KRVHFleft240 (60)°> 3000ft1.0min timedICAO rules
AGOD1LNRMNDBleft213 (33)°1400ft - 20000ft1.0min timedICAO rules
AGOD1PAM003VHFleft148 (328)°1400ft - 20000ft1.0min timedICAO rules
GOSU1GGAFIXleft26 (206)°1400ft - 20000ft1.0min timedICAO rules
GOSU1HRKFIXleft207 (27)°1400ft - 20000ft1.0min timedICAO rules
GOSU1JGFIXleft32 (212)°1400ft - 20000ft1.0min timedICAO rules
GOSU1KRVHFleft240 (60)°> 3000ft1.0min timedICAO rules
GOSU1LNRMNDBleft213 (33)°1400ft - 20000ft1.0min timedICAO rules
KEKU1GGAFIXleft26 (206)°1400ft - 20000ft1.0min timedICAO rules
KEKU1HRKFIXleft207 (27)°1400ft - 20000ft1.0min timedICAO rules
KEKU1JGFIXleft32 (212)°1400ft - 20000ft1.0min timedICAO rules
KEKU1KRVHFleft240 (60)°> 3000ft1.0min timedICAO rules
KEKU1LNRMNDBleft213 (33)°1400ft - 20000ft1.0min timedICAO rules
KEKU1QAM011VHFright148 (328)°1500ft - 20000ft1.0min timedICAO rules
LAGO1GGAFIXleft26 (206)°1400ft - 20000ft1.0min timedICAO rules
LAGO1HRKFIXleft207 (27)°1400ft - 20000ft1.0min timedICAO rules
LAGO1JGFIXleft32 (212)°1400ft - 20000ft1.0min timedICAO rules
LAGO1KRVHFleft240 (60)°> 3000ft1.0min timedICAO rules
LAGO1LNRMNDBleft213 (33)°1400ft - 20000ft1.0min timedICAO rules
LAGO1PAM003VHFleft148 (328)°1400ft - 20000ft1.0min timedICAO rules
LUMO1GGAFIXleft26 (206)°1400ft - 20000ft1.0min timedICAO rules
LUMO1HRKFIXleft207 (27)°1400ft - 20000ft1.0min timedICAO rules
LUMO1JGFIXleft32 (212)°1400ft - 20000ft1.0min timedICAO rules
LUMO1KRVHFleft240 (60)°> 3000ft1.0min timedICAO rules
LUMO1LNRMNDBleft213 (33)°1400ft - 20000ft1.0min timedICAO rules
NIKD1GGAFIXleft26 (206)°1400ft - 20000ft1.0min timedICAO rules
NIKD1HRKFIXleft207 (27)°1400ft - 20000ft1.0min timedICAO rules
NIKD1JGFIXleft32 (212)°1400ft - 20000ft1.0min timedICAO rules
NIKD1KRVHFleft240 (60)°> 3000ft1.0min timedICAO rules
NIKD1LNRMNDBleft213 (33)°1400ft - 20000ft1.0min timedICAO rules
NIKD1PAM003VHFleft148 (328)°1400ft - 20000ft1.0min timedICAO rules
NIKD1QAM011VHFright148 (328)°1500ft - 20000ft1.0min timedICAO rules
NULG1GGAFIXleft26 (206)°1400ft - 20000ft1.0min timedICAO rules
NULG1HRKFIXleft207 (27)°1400ft - 20000ft1.0min timedICAO rules
NULG1JGFIXleft32 (212)°1400ft - 20000ft1.0min timedICAO rules
NULG1KRVHFleft240 (60)°> 3000ft1.0min timedICAO rules
NULG1LNRMNDBleft213 (33)°1400ft - 20000ft1.0min timedICAO rules
NULG1QAM011VHFright148 (328)°1500ft - 20000ft1.0min timedICAO rules
SOKD1GGAFIXleft26 (206)°1400ft - 20000ft1.0min timedICAO rules
SOKD1HRKFIXleft207 (27)°1400ft - 20000ft1.0min timedICAO rules
SOKD1JGFIXleft32 (212)°1400ft - 20000ft1.0min timedICAO rules
SOKD1KRVHFleft240 (60)°> 3000ft1.0min timedICAO rules
SOKD1LNRMNDBleft213 (33)°1400ft - 20000ft1.0min timedICAO rules
SOKD1PAM003VHFleft148 (328)°1400ft - 20000ft1.0min timedICAO rules
SORI1GGAFIXleft26 (206)°1400ft - 20000ft1.0min timedICAO rules
SORI1HRKFIXleft207 (27)°1400ft - 20000ft1.0min timedICAO rules
SORI1JGFIXleft32 (212)°1400ft - 20000ft1.0min timedICAO rules
SORI1KRVHFleft240 (60)°> 3000ft1.0min timedICAO rules
SORI1LNRMNDBleft213 (33)°1400ft - 20000ft1.0min timedICAO rules
SORI1QAM011VHFright148 (328)°1500ft - 20000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
