Airports for X-Plane

Kaliningrad - Khrabrovo

Airport details

CountryRussian Federation
StateKaliningrad
RegionUM
AirspaceKaliningrad Ctr
MunicipalityGuryevsky District
Elevation41ft (12m)
TimezoneGMT +2
Coordinates54.89000, 20.59250
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUMKK
IATA codeKGD
FAA coden/a

Communication

Khrabrovo Kaliningrad ATIS122.050
Khrabrovo Kaliningrad ATIS122.475
Khrabrovo Kaliningrad Tower127.200
Khrabrovo Kaliningrad Tower129.425
Khrabrovo Kaliningrad Approach126.000
Khrabrovo Kaliningrad Approach128.500

Approach frequencies

ILS-cat-IIRW24109.518.00mi
ILS-cat-IRW06110.318.00mi
3° GSRW06110.318.00mi
3° GSRW24109.518.00mi
Nearby Points of Interest:
Orthodox church of the Transfiguration of Christ in Zelenogradsk
-
Saint Andrew Orthodox church in Zelenogradsk
-
Quednau Church
-
Kaliningrad Devau Airport
-
Haus der Technik
-
FSB building, Kaliningrad
-
Kaliningrad City Hall
-
Hufengymnasium
-
Monument to Immanuel Kant (Kaliningrad)
-
Königin-Luise-Schule
-
Königliches Waisenhaus
-
Königsberg Castle
-
Sculpture Park (Kaliningrad)
-
Saint George's Hospital
-
Ratshof Church
-
Reichsbahndirektion building in Kaliningrad
-
Kaliningrad Regional PhilharmonicHall
-
Waldau Castle
-
St. Joseph's Church
-
Kumehnen Church
-
Kirche Sankt Lorenz (Ostpreußen)
-
Medenau Church

Runway info

Runway 06 / 24
 length3347m (10981ft)
 bearing75° / 255°
 width42m (138ft)
 surfaceasphalt
 blast zone47m (154ft) / 46m (151ft)

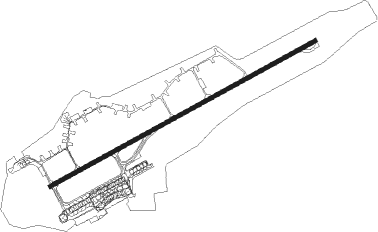

Airport layout


Taxiway locations

 C  D
Parking locations

 1  10  11  12  13  14  15  16
 17  18  19  2  20  21  22  23
 24  25  26  27  28  28A  29  3
 4  5  6  7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
KRDKHRABROVO VOR/DME0.365°117.05
KKHRABROVO (KALININGRAD) NDB1.675°410
KRKHRABROVO (KALININGRAD) NDB3.575°840
KLPKLAIPEDA VOR/DME54.338°115

Departure and arrival routes

Transition altitude3323ft
SID end pointsdistanceoutbound heading
RW06
 NERI3M, NERI3K, NERI3H27mi38°
 RUSN3M, RUSN3K, RUSN3H36mi68°
 ITVU3M, ITVU3H, ITVU3K42mi77°
 KRAK3M74mi89°
 RILE3K, RILE3H23mi89°
 NIFA3U, NIFA3K, NIFA3H22mi96°
 LAKO3M76mi96°
 NEDR3H, NEDR3U, NEDR3K22mi109°
 GOLA3M64mi109°
 RUTA3H, RUTA3K, RUTA3U16mi168°
 GITO3M32mi169°
 URAM3U, URAM3H, URAM3K27mi245°
 GOME3M42mi245°
 TARU3H, TARU3K, TARU3M34mi271°
 PELU3M, PELU3K, PELU3H18mi314°
 TURI3M, TURI3K, TURI3H25mi356°
RW24
 NERI3L, NERI3N, NERI3J27mi38°
 RUSN3J, RUSN3L, RUSN3N36mi68°
 ITVU3J, ITVU3L, ITVU3N42mi77°
 KRAK3R, KRAK3N74mi89°
 RILE3J, RILE3L23mi89°
 LAKO3N, LAKO3R76mi96°
 NIFA3L, NIFA3J, NIFA3T22mi96°
 NEDR3T, NEDR3J, NEDR3L22mi109°
 GOLA3N, GOLA3R64mi109°
 RUTA3T, RUTA3L, RUTA3J16mi168°
 GITO3R, GITO3N32mi169°
 GOME3N, GOME3R42mi245°
 URAM3L, URAM3T, URAM3J27mi245°
 TARU3R, TARU3N, TARU3L, TARU3J34mi271°
 PELU3N, PELU3J, PELU3L18mi314°
 TURI3J, TURI3L, TURI3N25mi356°

STAR starting pointsdistanceinbound heading
RW06
 GOME3Z, GOME3F, GOME3Y42.065°
 URAM3D, URAM3A26.865°
 TARU3D, TARU3F, TARU3Y, TARU3A34.291°
 PELU3A, PELU3D, PELU3F18.1134°
 TURI3D, TURI3F, TURI3A25.3176°
 NERI3D, NERI3F, NERI3A27.0218°
 RUSN3F, RUSN3D, RUSN3A35.7248°
 ITVU3F, ITVU3D41.5257°
 KRAK3F, KRAK3Y74.0269°
 NIFA3A21.8276°
 LAKO3Y, LAKO3F76.2276°
 GOLA3F, GOLA3Y64.3289°
 NEDR3A22.2289°
 RUTA3A16.3348°
 GITO3F, GITO3Y31.5349°
RW24
 URAM3B, URAM3C, URAM3E26.865°
 GOME3X, GOME3G42.065°
 TARU3B, TARU3G, TARU3E, TARU3C34.291°
 PELU3C, PELU3G, PELU3B18.1134°
 TURI3B, TURI3E, TURI3G, TURI3C25.3176°
 NERI3G, NERI3E, NERI3B, NERI3C27.0218°
 RUSN3B, RUSN3G, RUSN3C35.7248°
 ITVU3G, ITVU3E, ITVU3X, ITVU3C, ITVU3B41.5257°
 RILE3C, RILE3B22.9269°
 KRAK3G74.0269°
 NIFA3B, NIFA3C21.8276°
 LAKO3G76.2276°
 GOLA3G64.3289°
 NEDR3C, NEDR3B22.2289°
 RUTA3B, RUTA3C16.3348°
 GITO3G31.5349°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06KK501 (52°)KK501 2000ft
KK504 (6mi, 322°) 1700ft
RW06KK502 (75°)KK502 2000ft
KK504 (6mi, 75°) 1700ft
RW06KK503 (93°)KK503 2000ft
KK504 (6mi, 142°) 1700ft
 RNAVKK504 1700ft
KK506 (5mi, 75°) 1700ft
30THR (2mi, 75°) 1060ft
UMKK (4mi, 75°) 93ft
(3449mi, 201°) 700ft
KK516 (3460mi, 21°) 1700ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GITO3FKK516VHFright86 (266)°1300ft - 10000ft1.0min timed220
GITO3GKK720VHFleft83 (263)°1500ft - 10000ft1.0min timed220
GOLA3FKK516VHFright86 (266)°1300ft - 10000ft1.0min timed220
GOLA3GKK720VHFleft83 (263)°1500ft - 10000ft1.0min timed220
GOME3FKK516VHFright86 (266)°1300ft - 10000ft1.0min timed220
GOME3GKK720VHFleft83 (263)°1500ft - 10000ft1.0min timed220
GOME3XKK717VHFleft90 (270)°1300ft - 10000ft1.0min timed220
GOME3XKK725VHFright241 (61)°1300ft - 7000ft1.0min timed220
GOME3ZKK509VHFright86 (266)°1300ft - 11000ft1.0min timed220
ITVU3AKVHFright346 (166)°> 6000ft1.5min timedICAO rules
ITVU3BKVHFright346 (166)°> 6000ft1.5min timedICAO rules
ITVU3CKRFIXright60 (240)°> 1300ft1.0min timedICAO rules
ITVU3FKK516VHFright86 (266)°1300ft - 10000ft1.0min timed220
ITVU3GKK717VHFleft90 (270)°1300ft - 10000ft1.0min timed220
ITVU3XD063LVHFright63 (243)°1300ft - 7000ft1.0min timed215
KRAK3FKK516VHFright86 (266)°1300ft - 10000ft1.0min timed220
KRAK3GKK720VHFleft83 (263)°1500ft - 10000ft1.0min timed220
LAKO3FKK516VHFright86 (266)°1300ft - 10000ft1.0min timed220
LAKO3GKK720VHFleft83 (263)°1500ft - 10000ft1.0min timed220
NEDR3AKVHFright346 (166)°> 6000ft1.5min timedICAO rules
NEDR3BKVHFright346 (166)°> 6000ft1.5min timedICAO rules
NEDR3CKRFIXright60 (240)°> 1300ft1.0min timedICAO rules
NERI3AKVHFright346 (166)°> 6000ft1.5min timedICAO rules
NERI3BKVHFright346 (166)°> 6000ft1.5min timedICAO rules
NERI3CKRFIXright60 (240)°> 1300ft1.0min timedICAO rules
NERI3FKK509VHFright86 (266)°1300ft - 11000ft1.0min timed220
NERI3GKK717VHFleft90 (270)°1300ft - 10000ft1.0min timed220
NIFA3AKVHFright346 (166)°> 6000ft1.5min timedICAO rules
NIFA3BKVHFright346 (166)°> 6000ft1.5min timedICAO rules
NIFA3CKRFIXright60 (240)°> 1300ft1.0min timedICAO rules
PELU3AKVHFright346 (166)°> 6000ft1.5min timedICAO rules
PELU3BKVHFright346 (166)°> 6000ft1.5min timedICAO rules
PELU3CKRFIXright60 (240)°> 1300ft1.0min timedICAO rules
PELU3FKK509VHFright86 (266)°1300ft - 11000ft1.0min timed220
PELU3GKK717VHFleft90 (270)°1300ft - 10000ft1.0min timed220
PELU3GKK725VHFright241 (61)°1300ft - 7000ft1.0min timed220
RILE3AKVHFright346 (166)°> 6000ft1.5min timedICAO rules
RILE3BKVHFright346 (166)°> 6000ft1.5min timedICAO rules
RILE3CKRFIXright60 (240)°> 1300ft1.0min timedICAO rules
RUSN3AKVHFright346 (166)°> 6000ft1.5min timedICAO rules
RUSN3BKVHFright346 (166)°> 6000ft1.5min timedICAO rules
RUSN3CKRFIXright60 (240)°> 1300ft1.0min timedICAO rules
RUSN3DD048LVHFright48 (228)°1300ft - 7000ft1.0min timed225
RUSN3FKK516VHFright86 (266)°1300ft - 10000ft1.0min timed220
RUSN3GKK717VHFleft90 (270)°1300ft - 10000ft1.0min timed220
RUTA3AKVHFright346 (166)°> 6000ft1.5min timedICAO rules
RUTA3BKVHFright346 (166)°> 6000ft1.5min timedICAO rules
RUTA3CKRFIXright60 (240)°> 1300ft1.0min timedICAO rules
TARU3AKVHFright346 (166)°> 6000ft1.5min timedICAO rules
TARU3BKVHFright346 (166)°> 6000ft1.5min timedICAO rules
TARU3CKRFIXright60 (240)°> 1300ft1.0min timedICAO rules
TARU3FKK509VHFright86 (266)°1300ft - 11000ft1.0min timed220
TARU3GKK717VHFleft90 (270)°1300ft - 10000ft1.0min timed220
TARU3GKK725VHFright241 (61)°1300ft - 7000ft1.0min timed220
TURI3AKVHFright346 (166)°> 6000ft1.5min timedICAO rules
TURI3BKVHFright346 (166)°> 6000ft1.5min timedICAO rules
TURI3CKRFIXright60 (240)°> 1300ft1.0min timedICAO rules
TURI3FKK509VHFright86 (266)°1300ft - 11000ft1.0min timed220
TURI3GKK717VHFleft90 (270)°1300ft - 10000ft1.0min timed220
URAM3AKVHFright346 (166)°> 6000ft1.5min timedICAO rules
URAM3BKVHFright346 (166)°> 6000ft1.5min timedICAO rules
URAM3CKRFIXright60 (240)°> 1300ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
