Mogilev
Airport details
| Country | Belarus |
| State | Mahilyow Region |
| Region | UM |
| Airspace | Minsk Ctr |
| Municipality | Княжыцкі сельскі Савет |
| Elevation | 636ft (194m) |
| Timezone | GMT +3 |
| Coordinates | 53.95528, 30.09417 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | UMOO |
| IATA code | MVQ |
| FAA code | n/a |
Communication
| Mogilev Approach | 127.100 |
Approach frequencies
| ILS-cat-I | RW13 | 111.1 | 18.00mi |
| 2.8° GS | RW13 | 111.1 | 18.00mi |

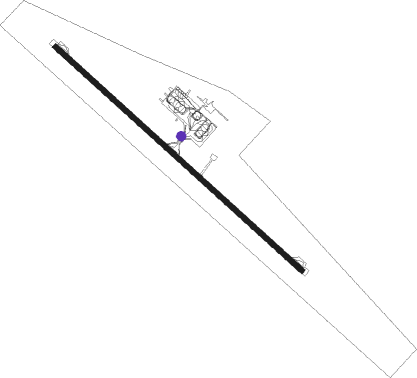

Runway info
| Runway 13 / 31 | ||
| length | 2554m (8379ft) | |
| bearing | 122° / 302° | |
| width | 42m (138ft) | |
| surface | asphalt | |
| displ threshold | 1m (3ft) / 3m (10ft) | |
| blast zone | 54m (177ft) / 37m (121ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| MGL | MAHILIOU VOR/DME | 0.1 | 150° | 116.75 |
| C | MAHILIOU NDB | 1.2 | 122° | 985 |
| U | MAHILIOU NDB | 1.3 | 302° | 985 |
| ORS | ORSHA VOR/DME | 31.1 | 26° | 110.40 |
Departure and arrival routes
| Transition altitude | 6000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW13 | |||
| TADI2A | 23mi | 68° | |
| SLED2A | 27mi | 140° | |
| NEZG3A | 24mi | 225° | |
| RAFM3A | 27mi | 272° | |
| SODK2A | 27mi | 289° | |
| RW31 | |||
| TADI2B | 23mi | 68° | |
| SLED2B | 27mi | 140° | |
| NEZG3B | 24mi | 225° | |
| RAFM3B | 27mi | 272° | |
| SODK2B | 27mi | 289° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW13 | |||
| DULE2C | 26.2 | 79° | |
| SODK2C | 26.7 | 109° | |
| DIFT2C | 13.2 | 213° | |
| KOPO2C | 30.0 | 295° | |
| ROVS2C | 12.1 | 299° | |
| PIRO2C | 27.9 | 353° | |
| RW31 | |||
| DULE2D | 26.2 | 79° | |
| SODK2D | 26.7 | 109° | |
| DIFT2D | 13.2 | 213° | |
| ROVS2D | 26.9 | 277° | |
| KOPO2D | 30.0 | 295° | |
| PIRO3D | 27.9 | 353° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| DIFT2C | MGL | NDB | right | 308 (128)° | > 4000ft | 1.0min timed | ICAO rules |
| DIFT2D | MGL | NDB | right | 308 (128)° | > 4000ft | 1.0min timed | ICAO rules |
| DULE2C | MGL | NDB | right | 308 (128)° | > 4000ft | 1.0min timed | ICAO rules |
| DULE2D | MGL | NDB | right | 308 (128)° | > 4000ft | 1.0min timed | ICAO rules |
| KOPO2C | MGL | NDB | right | 308 (128)° | > 4000ft | 1.0min timed | ICAO rules |
| PIRO2C | MGL | NDB | right | 308 (128)° | > 4000ft | 1.0min timed | ICAO rules |
| ROVS2C | MGL | NDB | right | 308 (128)° | > 4000ft | 1.0min timed | ICAO rules |
| SODK2D | MGL | NDB | right | 308 (128)° | > 4000ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
