Airports for X-Plane

Krasnodar - Krasnodar Intl. (pashkovskiy)

Airport details

CountryRussian Federation
StateKrasnodar Krai
RegionUR
AirspaceRostov-na-donu Ctr
MunicipalityKrasnodar Municipality
Elevation118ft (36m)
TimezoneGMT +3
Coordinates45.04037, 39.14560
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeURKK
IATA codeKRR
FAA coden/a

Communication

Krasnodar Intl. (Pashkovskiy) ATIS122.450
Krasnodar Intl. (Pashkovskiy) Ground Control119.000
Krasnodar Intl. (Pashkovskiy) Tower121.300
Krasnodar Intl. (Pashkovskiy) Tower118.200
Krasnodar Intl. (Pashkovskiy) Approach W127.700
Krasnodar Intl. (Pashkovskiy) Approach E129.600
Krasnodar Intl. (Pashkovskiy) Departure W127.700
Krasnodar Intl. (Pashkovskiy) Departure E129.600

Approach frequencies

ILS-cat-IIRW05R110.718.00mi
ILS-cat-IIRW23L109.518.00mi
2.7° GSRW05R110.718.00mi
2.7° GSRW23L109.518.00mi

Runway info

Runway 05R / 23L
 length3003m (9852ft)
 bearing62° / 242°
 width45m (148ft)
 surfaceconcrete
 blast zone51m (167ft) / 51m (167ft)
Runway 05L / 23R
 length2204m (7231ft)
 bearing62° / 242°
 width49m (161ft)
 surfaceconcrete
 blast zone50m (164ft) / 50m (164ft)

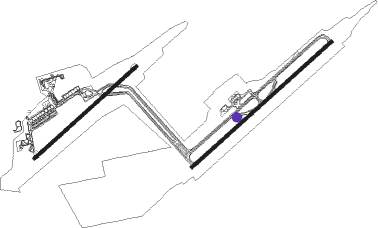

Airport layout - taxiway location G


Taxiway locations

 B  C  D  E  F  G  H  J
 K  L  M  N
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
KNDKRASNODAR VOR/DME1.4137°115.80
KRPASHKOVSKIY (KRASNODAR) NDB1.4142°377
XTRYAZANSKAYA NDB18.8100°312
SMSMOLENSKAYA NDB21.6232°662
NZUST-LABINSK NDB24.771°330
RFLADOZHSKAYA NDB35.872°324
DVDZHUBGA NDB47.7211°420
AGAGOY NDB54.3188°381
AGODME54.3188°116.80
TRKDME62.949°113
UHTIKHORETSK NDB62.949°528

Departure and arrival routes

Transition altitude3399ft
Transition level5000ft
SID end pointsdistanceoutbound heading
RW05R
 BALE6A, BALE6E, BALE6V38mi16°
 RINE6A, RINE6E, RINE6V56mi42°
 KULE6A, KULE6V, KULE6E65mi74°
 UMBI6A, UMBI6E, UMBI6V61mi89°
 KURA6A, KURA6E, KURA6V62mi95°
 RANI6E, RANI6A, RANI6V61mi119°
 DV6V, DV6A, DV6E48mi211°
 RULA6V, RULA6E, RULA6A51mi228°
 OSNI6A, OSNI6V, OSNI6E44mi245°
 GINE6A, GINE6E, GINE6V57mi265°
 AGID6A, AGID6E, AGID6V54mi269°
RW23L
 BALE6C, BALE6D, BALE6T38mi16°
 RINE6C, RINE6T, RINE6D56mi42°
 KULE6T, KULE6C, KULE6D65mi74°
 UMBI6C, UMBI6D, UMBI6T61mi89°
 KURA6D, KURA6T, KURA6C62mi95°
 RANI6T, RANI6D, RANI6C61mi119°
 DV6C, DV6D, DV6T48mi211°
 RULA6C, RULA6D, RULA6T51mi228°
 OSNI6D, OSNI6C, OSNI6T44mi245°
 GINE6T, GINE6D, GINE6C57mi265°
 AGID6T, AGID6D, AGID6C54mi269°

STAR starting pointsdistanceinbound heading
RW05R
 SIBA6H, SIBA6R43.114°
 RULA6R, RULA6H51.248°
 OSNI6R, OSNI6H43.765°
 GINE6R, GINE6H56.985°
 AGID6R, AGID6H53.889°
 BALE6R, BALE6M, BALE6H, BALE6F37.5196°
 KULE6R, KULE6M, KULE6H, KULE6F64.8254°
 UMBI6H, UMBI6R, UMBI6M, UMBI6F60.7269°
 KURA6R, KURA6F, KURA6H, KURA6M61.5275°
 RANI6R, RANI6M, RANI6H, RANI6F61.3299°
 MOLI6F, MOLI6R, MOLI6M, MOLI6H42.4336°
RW23L
 SIBA6Y, SIBA6K43.114°
 RULA6Y, RULA6K51.248°
 OSNI6K, OSNI6Y43.765°
 GINE6K, GINE6Y56.985°
 AGID6K, AGID6Y53.889°
 BALE6F, BALE6M, BALE6K, BALE6Y37.5196°
 KULE6Y, KULE6M, KULE6K, KULE6F64.8254°
 UMBI6K, UMBI6M, UMBI6Y, UMBI6F60.7269°
 KURA6F, KURA6M, KURA6K, KURA6Y61.5275°
 RANI6Y, RANI6M, RANI6K, RANI6F61.3299°
 MOLI6K, MOLI6Y, MOLI6M, MOLI6F42.4336°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05RKK502 (57°)KK502 4000ft
KK504 (6mi, 61°) 2800ft
RW05RKK503 (79°)KK503 4000ft
KK504 (6mi, 133°) 2800ft
RW05RXT (280°)XT 3600ft
KK501 (25mi, 260°)
KK504 (4mi, 313°) 2800ft
 RNAVKK504 2800ft
KK505 (5mi, 61°) 2000ft
21THR (4mi, 61°) 750ft
URKK (2mi, 19°) 163ft
(3409mi, 221°) 1000ft
XT (3420mi, 41°) 3600ft
RW23LKK201 (264°)KK201 2600ft
KK204 (6mi, 313°) 2400ft
RW23LKK202 (245°)KK202 4000ft
KK204 (6mi, 242°) 2400ft
RW23LKK203 (224°)KK203 4000ft
KK204 (6mi, 133°) 2400ft
RW23LXT (280°)XT
KK201 (8mi, 330°) 2600ft
KK204 (6mi, 313°) 2400ft
 RNAVKK204 2400ft
KK205 (5mi, 242°) 2000ft
15THR (5mi, 242°) 600ft
URKK (4mi, 259°) 170ft
(3409mi, 221°) 800ft
XT (3420mi, 41°) 3700ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGID6FSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
AGID6MSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
GINE6FSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
GINE6MSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
KULE6FXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
KULE6HXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
KULE6MXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
KULE6RXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
KURA6FXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
KURA6HXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
KURA6MXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
KURA6RXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
KURA6YXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
MOLI6FXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
MOLI6HXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
MOLI6KXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
MOLI6MXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
MOLI6RSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
MOLI6YXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
ND6FXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
ND6HXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
ND6MXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
ND6RXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
OSNI6FSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
OSNI6HSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
OSNI6KSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
OSNI6MSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
OSNI6RSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
RANI6FXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
RANI6HXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
RANI6KXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
RANI6MXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
RANI6RXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
RANI6YXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
RULA6FSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
RULA6HSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
RULA6KSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
RULA6MSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
RULA6RSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
RULA6YSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
SIBA6FSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
SIBA6HSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
SIBA6KSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
SIBA6MSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
SIBA6RSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
SIBA6YSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
UMBI6FXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
UMBI6HXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
UMBI6MXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
UMBI6RXTFIXright29 (209)°2500ft - 14000ft1.0min timed230
*) magnetic outbound (inbound) holding course
