Airports for X-Plane

Platov

Airport details

CountryRussian Federation
StateRostov Oblast
Region
AirspaceRostov-na-donu Ctr
MunicipalityГрушевское сельское поселение
Elevation282ft (86m)
TimezoneGMT +3
Coordinates47.48452, 39.90531
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeURRP
IATA coden/a
FAA coden/a

Communication

Platov Platov_ATIS121.700
Platov Platov_Gnd119.000
Platov Platov_Twr119.700
Platov Platov_App128.200
Platov Platov_Rad121.200

Approach frequencies

ILS-cat-IIRW05111.518.00mi
ILS-cat-IIRW23110.918.00mi
3° GSRW05111.518.00mi
3° GSRW23110.918.00mi
Nearby Points of Interest:
St. Barbara Church
-
St. Dimitry's Church, Novocherkassk
-
Sts. Constantine and Helen Church, Novocherkassk
-
Lutheran Church, Novocherkassk
-
Our Lady of the Assumption Church, Novocherkassk
-
Ataman House
-
Men's Gymnasium (Novocherkassk)
-
House-Museum of Mitrofan Grekov
-
Monument to Matvei Platov
-
Kinoteatr Tanais
-
Mariinskaya Gymnasium, Novocherkassk
-
Drama Theater, Novocherkassk
-
Church of the Nativity of the Blessed Virgin
-
Mukhina Gully
-
Church of the Virgin Hodegetria

Runway info

Runway 05 / 23
 length3600m (11811ft)
 bearing64° / 244°
 width45m (148ft)
 surfaceconcrete
 blast zone50m (164ft) / 50m (164ft)

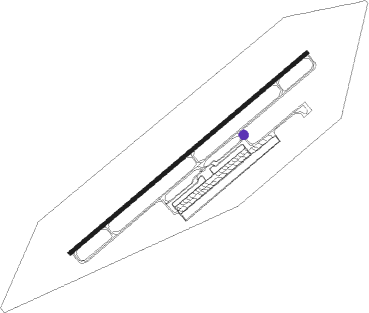

Airport layout - taxiway location B4


Taxiway locations

 A1  B2  B3  B4  M

Nearby beacons

codeidentifierdistbearingfrequency
RDPLATOV (ROSTOV-NA-DONU) NDB0.5244°682
ROSPLATOV (ROSTOV-NA-DONU) VOR/DME1.560°117
SBSAMBEK NDB16.6338°414
BABAGAYEVSKIY NDB20.9110°11.750
KLKRASNY SULIN NDB25.326°486
KLNSULIN DME25.326°114
ERYEGORLYKSKAYA NDB62.2140°435

Departure and arrival routes

SID end pointsdistanceoutbound heading
RW05
 DIBR2D37mi23°
 KL2D25mi26°
 ABLO2D27mi56°
 DORI2D43mi71°
 KA2N, KA2D49mi85°
 BADE2D, BADE2N55mi92°
 BANP2D54mi102°
 OGUR2D31mi124°
 AMEP2D18mi196°
 OKMA2D35mi236°
 FASA2D65mi273°
 NALE2D28mi348°
RW23
 DIBR2E37mi23°
 KL2E25mi26°
 ABLO2E27mi56°
 DORI2M, DORI2E43mi71°
 KA2M, KA2E49mi85°
 BADE2E, BADE2M55mi92°
 BANP2M, BANP2E54mi102°
 OGUR2M, OGUR2E31mi124°
 GODL2E, GODL2M29mi139°
 AMEP2E, AMEP2M18mi196°
 OKMA2M35mi236°
 FASA2E65mi273°
 NALE2E28mi348°

STAR starting pointsdistanceinbound heading
RW05
 AMEP2A, AMEP2V17.516°
 OKMA2A35.256°
 FASA2A64.793°
 DIBR2A37.4203°
 KL2A25.3206°
 ABLO2A27.1236°
 DORI2A42.6251°
 KA2A, KA2V49.4265°
 BADE2V, BADE2A55.2272°
 OGUR2A30.9304°
 GODL2W29.1319°
RW23
 AMEP2U, AMEP2S17.516°
 OKMA2U35.256°
 FASA2S64.793°
 DIBR2S37.4203°
 KL2S25.3206°
 ABLO2S27.1236°
 DORI2S42.6251°
 KA2U, KA2S49.4265°
 BADE2U, BADE2S55.2272°
 OGUR2S, OGUR2U30.9304°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05RP303 (90°)RP303 3200ft
RP302 (6mi, 133°) 2300ft
RW05RP339 (26°)RP339 3400ft
RP302 (6mi, 313°) 2300ft
 RNAVRP302 2300ft
RP301 (5mi, 64°) 1400ft
URRP (4mi, 64°) 228ft
RP304 (4mi, 64°)
KL (22mi, 17°) 2300ft
RW23RP342 (235°)RP342 1500ft
RP341 (6mi, 222°) 1500ft
RW23RP511 (252°)RP511 2400ft
RP341 (6mi, 262°) 1500ft
 RNAVRP341 1500ft
RP336 (3mi, 244°) 1300ft
URRP (5mi, 244°) 331ft
(3530mi, 220°) 700ft
RP308 (3530mi, 40°) 1600ft
SB (10mi, 5°)
KL (15mi, 66°)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABLO2ARP303VHFright46 (226)°1800ft - 14000ft1.0min timed195
AMEP2ARP303VHFright46 (226)°1800ft - 14000ft1.0min timed195
AMEP2SRP506VHFright161 (341)°15000ft - 18000ft1.5min timedICAO rules
AMEP2URP511VHFleft100 (280)°> 1900ft1.0min timedICAO rules
AMEP2VRP339VHFright136 (316)°2400ft - 14000ft1.0min timed270
BA2ARP303VHFright46 (226)°1800ft - 14000ft1.0min timed195
BA2SRP506VHFright161 (341)°15000ft - 18000ft1.5min timedICAO rules
BA2URP511VHFleft100 (280)°> 1900ft1.0min timedICAO rules
BA2VRP339VHFright136 (316)°2400ft - 14000ft1.0min timed270
BADE2ARP303VHFright46 (226)°1800ft - 14000ft1.0min timed195
BADE2URP511VHFleft100 (280)°> 1900ft1.0min timedICAO rules
BADE2VRP339VHFright136 (316)°2400ft - 14000ft1.0min timed270
DIBR2AKLFIXleft34 (214)°2300ft - 12000ft1.0min timed240
DIBR2ARP303VHFright46 (226)°1800ft - 14000ft1.0min timed195
DIBR2SKLFIXleft34 (214)°2300ft - 12000ft1.0min timed240
DORI2ARP303VHFright46 (226)°1800ft - 14000ft1.0min timed195
ER2ARP303VHFright46 (226)°1800ft - 14000ft1.0min timed195
ER2ARP343VHFright126 (306)°15000ft - 18000ft1.5min timedICAO rules
ER2SRP506VHFright161 (341)°15000ft - 18000ft1.5min timedICAO rules
ER2TRP303VHFright46 (226)°1800ft - 14000ft1.0min timed195
ER2URP511VHFleft100 (280)°> 1900ft1.0min timedICAO rules
ER2VRP339VHFright136 (316)°2400ft - 14000ft1.0min timed270
FASA2ARP303VHFright46 (226)°1800ft - 14000ft1.0min timed195
FASA2SKLFIXleft34 (214)°2300ft - 12000ft1.0min timed240
GODL2WRP303VHFright46 (226)°1800ft - 14000ft1.0min timed195
KA2ARP303VHFright46 (226)°1800ft - 14000ft1.0min timed195
KA2URP511VHFleft100 (280)°> 1900ft1.0min timedICAO rules
KA2VRP339VHFright136 (316)°2400ft - 14000ft1.0min timed270
KL2ARP303VHFright46 (226)°1800ft - 14000ft1.0min timed195
KL2SKLFIXleft34 (214)°2300ft - 12000ft1.0min timed240
OGUR2ARP303VHFright46 (226)°1800ft - 14000ft1.0min timed195
OGUR2ARP343VHFright126 (306)°15000ft - 18000ft1.5min timedICAO rules
OGUR2SRP506VHFright161 (341)°15000ft - 18000ft1.5min timedICAO rules
OGUR2URP511VHFleft100 (280)°> 1900ft1.0min timedICAO rules
OKMA2URP511VHFleft100 (280)°> 1900ft1.0min timedICAO rules
SB2ARP303VHFright46 (226)°1800ft - 14000ft1.0min timed195
SB2SKLFIXleft34 (214)°2300ft - 12000ft1.0min timed240
*) magnetic outbound (inbound) holding course
