Airports for X-Plane

Magnitogorsk

Airport details

CountryRussian Federation
StateBashkortostan
RegionUS
AirspaceYekaterinburg Ctr
MunicipalityТаштимеровский сельсовет
Elevation1431ft (436m)
TimezoneGMT +5
Coordinates53.38754, 58.75744
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUSCM
IATA codeMQF
FAA coden/a

Communication

Magnitogorsk Ground Control119.000
Magnitogorsk Tower120.800

Approach frequencies

ILS-cat-IRW18109.918.00mi
ILS-cat-IRW36108.718.00mi
2.7° GSRW18109.918.00mi
2.7° GSRW36108.718.00mi
Nearby Points of Interest:
First tent monument in Magnitogorsk
-
1. Quartal

Runway info

Runway 18 / 36
 length3247m (10653ft)
 bearing206° / 26°
 width45m (148ft)
 surfaceconcrete

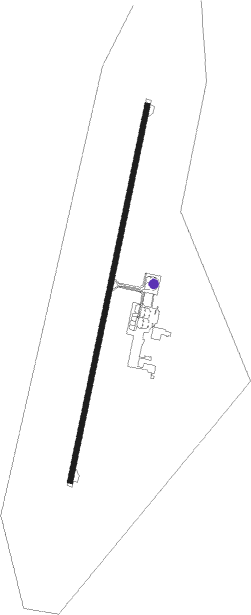

Airport layout - parking location 11


Parking locations

 1  10  11  12  2  3  4  5
 6  7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
MGRMAGNITOGORSK VOR/DME10°114.10
RMAGNITOGORSK NDB1.1217°975
CMAGNITOGORSK NDB1.718°975
RFMAGNITOGORSK NDB2.7210°480

Departure and arrival routes

Transition altitude5696ft
SID end pointsdistanceoutbound heading
RW18
 ETRE1M, ETRE1K40mi26°
 OLMA1M, OLMA1K, OLMA1H38mi51°
 BURI1M, BURI1K, BURI1H32mi89°
 BANA1K, BANA1M51mi208°
 KUDO1M, KUDO1K40mi246°
 NERN1K, NERN1M, NERN1H37mi271°
 LANU1M, LANU1K40mi335°
RW36
 ETRE1N, ETRE1L, ETRE1J40mi26°
 OLMA1N, OLMA1L, OLMA1J38mi51°
 BURI1J, BURI1L, BURI1N32mi89°
 BANA1L, BANA1J, BANA1N51mi208°
 KUDO1N, KUDO1L, KUDO1J40mi246°
 NERN1J, NERN1L, NERN1N37mi271°
 LANU1L, LANU1N, LANU1J40mi335°

STAR starting pointsdistanceinbound heading
RW18
 BANA1B, BANA1F50.928°
 KUDO1F, KUDO1B39.766°
 BATA1F, BATA1C, BATA1B31.5121°
 ETRE1B, ETRE1F39.6206°
 OLMA1F, OLMA1C, OLMA1B37.6231°
 BURI1B, BURI1F, BURI1C32.0269°
RW36
 BANA1G, BANA1E, BANA1D, BANA1A50.928°
 KUDO1G, KUDO1E, KUDO1D, KUDO1A39.766°
 BATA1G, BATA1A, BATA1E, BATA1D31.5121°
 ETRE1A, ETRE1D, ETRE1E, ETRE1G39.6206°
 OLMA1A, OLMA1D, OLMA1G, OLMA1E37.6231°
 BURI1D, BURI1G32.0269°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18CM009 (163°)CM009 5000ft
CM008 (6mi, 100°) 4500ft
RW18CM010 (205°)CM010 5000ft
CM008 (6mi, 206°) 4500ft
RW18CM011 (236°)CM011 5000ft
CM008 (6mi, 280°) 4500ft
 RNAVCM008 4500ft
CM007 (6mi, 206°) 2900ft
USCM (6mi, 204°) 1445ft
(4323mi, 228°) 2500ft
CM012 (4331mi, 48°) 4100ft
CM011 (6mi, 26°) 5000ft
RW36CM003 (342°)CM003 5000ft
CM002 (6mi, 280°) 4500ft
RW36CM004 (26°)CM004 5000ft
CM002 (6mi, 26°) 4500ft
RW36CM005 (58°)CM005 5000ft
CM002 (6mi, 100°) 4500ft
 RNAVCM002 4500ft
CM001 (6mi, 26°) 2900ft
USCM (5mi, 28°) 1482ft
(4323mi, 228°) 2500ft
CM006 (4324mi, 48°) 4100ft
CM003 (6mi, 206°) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BANA1ARFFIXright184 (4)°3600ft - 11000ft1.0min timed230
BANA1BD034OVHFleft34 (214)°5000ft - 11000ftDME 5.8mi215
BANA1DRNDBright31 (211)°4350ft - 6000ft1.0min timedICAO rules
BANA1FCM011VHFright112 (292)°5000ft - 11000ft1.0min timed230
BATA1ARFFIXright184 (4)°3600ft - 11000ft1.0min timed230
BATA1CCNDBleft206 (26)°> 1800ft1.0min timedICAO rules
BATA1DRNDBright31 (211)°4350ft - 6000ft1.0min timedICAO rules
BATA1ED155OVHFright155 (335)°5000ft - 14000ftDME 5.8mi230
BURI1ARFFIXright184 (4)°3600ft - 11000ft1.0min timed230
BURI1BD034OVHFleft34 (214)°5000ft - 11000ftDME 5.8mi215
BURI1CCNDBleft206 (26)°> 1800ft1.0min timedICAO rules
BURI1DRNDBright31 (211)°4350ft - 6000ft1.0min timedICAO rules
BURI1ED155OVHFright155 (335)°5000ft - 14000ftDME 5.8mi230
BURI1FCM011VHFright112 (292)°5000ft - 11000ft1.0min timed230
BURI1GCM003VHFleft94 (274)°5000ft - 11000ft1.0min timed230
ETRE1ARFFIXright184 (4)°3600ft - 11000ft1.0min timed230
ETRE1DRNDBright31 (211)°4350ft - 6000ft1.0min timedICAO rules
ETRE1ED155OVHFright155 (335)°5000ft - 14000ftDME 5.8mi230
ETRE1GCM003VHFleft94 (274)°5000ft - 11000ft1.0min timed230
KUDO1ARFFIXright184 (4)°3600ft - 11000ft1.0min timed230
KUDO1BD034OVHFleft34 (214)°5000ft - 11000ftDME 5.8mi215
KUDO1DRNDBright31 (211)°4350ft - 6000ft1.0min timedICAO rules
KUDO1FCM011VHFright112 (292)°5000ft - 11000ft1.0min timed230
OLMA1ARFFIXright184 (4)°3600ft - 11000ft1.0min timed230
OLMA1CCNDBleft206 (26)°> 1800ft1.0min timedICAO rules
OLMA1DRNDBright31 (211)°4350ft - 6000ft1.0min timedICAO rules
OLMA1ED155OVHFright155 (335)°5000ft - 14000ftDME 5.8mi230
OLMA1GCM003VHFleft94 (274)°5000ft - 11000ft1.0min timed230
*) magnetic outbound (inbound) holding course
