Airports for X-Plane

Perm - Perm Intl (bolshoye Savino)

Airport details

CountryRussian Federation
StatePerm Krai
RegionUS
AirspaceYekaterinburg Ctr
MunicipalitySavinskoe Rural Settlement
Elevation401ft (122m)
TimezoneGMT +5
Coordinates57.91306, 56.01472
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUSPP
IATA codePEE
FAA coden/a

Communication

Perm Intl (Bolshoye Savino) ATIS126.400
Perm Intl (Bolshoye Savino) Tower124.000
Perm Intl (Bolshoye Savino) Approach121.700
Perm Intl (Bolshoye Savino) Departure121.700

Approach frequencies

ILS-cat-IRW21109.918.00mi
3° GSRW21109.918.00mi
Nearby Points of Interest:
Krylov House
-
Perm Synagogue
-
House of Soviets
-
House of Scientists
-
Permenergo building
-
Perm Theological Seminary
-
Kuvshinsky revenue house
-
Maslennikova Revenue House
-
Imperial music college
-
Stepanov House
-
Piotrowski bookstore
-
Alekseevskoye real college
-
Groupilion House
-
Saint Peter & Paul Cathedral (Perm)
-
Dormition Church in Perm
-
20 inch cast-iron naval cannon (Perm)

Runway info

Runway 03 / 21
 length3195m (10482ft)
 bearing63° / 243°
 width49m (161ft)
 surfaceconcrete
 blast zone50m (164ft) / 47m (154ft)

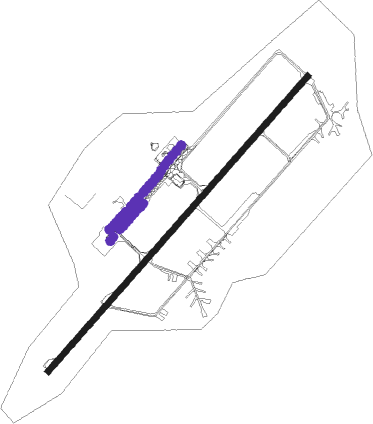

Airport layout - parking location Ramp


Taxiway locations

 B  C
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
PERPERM VOR/DME0.661°108.20
KBOLSHOE SAVINO (PERM) NDB1.2239°345
XBOLSHOE SAVINO (PERM) NDB1.665°345
BKBOLSHOE SAVINO (PERM) NDB2.8241°705
PXBOLSHOE SAVINO (PERM) NDB3.264°705

Departure and arrival routes

Transition altitude4341ft
SID end pointsdistanceoutbound heading
RW03
 RISD1H, RISD1K, RISD1M47mi72°
 ULPA1M, ULPA1K, ULPA1H64mi93°
 DIDR1M, DIDR1K, DIDR1H50mi104°
 INPI1M, INPI1K, INPI1H44mi120°
 GEKT1H, GEKT1K, GEKT1M41mi179°
 ULPE1H, ULPE1K, ULPE1M48mi248°
 SUMO1H, SUMO1K, SUMO1M40mi277°
 GEBS1H, GEBS1K, GEBS1M44mi290°
 OSMU1M, OSMU1K, OSMU1H50mi345°
RW21
 RISD1L, RISD1J, RISD1G47mi72°
 ULPA1L, ULPA1J, ULPA1G64mi93°
 DIDR1G, DIDR1L, DIDR1J50mi104°
 INPI1J, INPI1G, INPI1L44mi120°
 GEKT1G, GEKT1L, GEKT1J41mi179°
 ULPE1G, ULPE1J, ULPE1L48mi248°
 SUMO1G, SUMO1J, SUMO1L40mi277°
 GEBS1G, GEBS1L, GEBS1J44mi290°
 OSMU1L, OSMU1J, OSMU1G50mi345°

STAR starting pointsdistanceinbound heading
RW03
 ULPE1E, ULPE1D, ULPE1B47.568°
 SUMO1E, SUMO1D, SUMO1B40.197°
 GEBS1B, GEBS1D, GEBS1E43.9110°
 RISD1B, RISD1E, RISD1D47.2252°
 INPI1D, INPI1B, INPI1E44.3300°
 GEKT1D, GEKT1B, GEKT1E40.9359°
RW21
 ULPE1C, ULPE1F, ULPE1A47.568°
 SUMO1F, SUMO1C, SUMO1A40.197°
 GEBS1F, GEBS1C, GEBS1A43.9110°
 RISD1F, RISD1A, RISD1C47.2252°
 INPI1F, INPI1C, INPI1A44.3300°
 GEKT1F, GEKT1A, GEKT1C40.9359°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03PP001 (28°)PP001
PP019 (6mi, 299°) 2200ft
RW03PP002 (62°)PP002
PP019 (6mi, 62°) 2200ft
RW03PP003 (82°)PP003
PP019 (6mi, 119°) 2200ft
 RNAVPP019 2200ft
PP020 (5mi, 63°) 2000ft
SDF03 (2mi, 63°) 1390ft
USPP (4mi, 62°) 433ft
(4368mi, 224°) 810ft
PP022 (4374mi, 44°)
PP023 (13mi, 261°)
PP003 (5mi, 243°) 2200ft
RW21PP008 (217°)PP008
PP014 (6mi, 119°) 2700ft
RW21PP009 (243°)PP009
PP014 (6mi, 243°) 2700ft
RW21PP010 (260°)PP010
PP014 (6mi, 299°) 2700ft
 RNAVPP014 2700ft
PP015 (5mi, 243°) 2700ft
SDF21 (3mi, 243°) 1730ft
USPP (5mi, 244°) 450ft
(4368mi, 224°) 810ft
PP017 (4362mi, 44°)
PP018 (15mi, 38°)
PP008 (5mi, 63°) 2700ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GEBS1APXFIXright30 (210)°2500ft - 9000ft1.0min timed210
GEBS1BBKFIXleft233 (53)°2300ft - 9000ft1.0min timed185
GEBS1CD288OVHFleft288 (108)°2100ft - 13000ftDME 8.2miICAO rules
GEBS1DD288OVHFleft288 (108)°2100ft - 13000ftDME 8.2miICAO rules
GEBS1EPP003VHFleft338 (158)°2200ft - 9000ft1.0min timed200
GEBS1FPP013VHFleft257 (77)°2200ft - 13000ft1.0min timed265
GEKT1APXFIXright30 (210)°2500ft - 9000ft1.0min timed210
GEKT1BBKFIXleft233 (53)°2300ft - 9000ft1.0min timed185
INPI1APXFIXright30 (210)°2500ft - 9000ft1.0min timed210
INPI1BBKFIXleft233 (53)°2300ft - 9000ft1.0min timed185
RISD1APXFIXright30 (210)°2500ft - 9000ft1.0min timed210
RISD1BBKFIXleft233 (53)°2300ft - 9000ft1.0min timed185
RISD1CD288OVHFleft288 (108)°2100ft - 13000ftDME 8.2miICAO rules
SUMO1APXFIXright30 (210)°2500ft - 9000ft1.0min timed210
SUMO1BBKFIXleft233 (53)°2300ft - 9000ft1.0min timed185
SUMO1EPP003VHFleft338 (158)°2200ft - 9000ft1.0min timed200
SUMO1FPP013VHFleft257 (77)°2200ft - 13000ft1.0min timed265
ULPE1APXFIXright30 (210)°2500ft - 9000ft1.0min timed210
ULPE1BBKFIXleft233 (53)°2300ft - 9000ft1.0min timed185
*) magnetic outbound (inbound) holding course
