Airports for X-Plane

Kogalym

Airport details

CountryRussian Federation
StateKhanty-Mansiysk Autonomous Okrug – Ugra
RegionUS
AirspaceTyumen Ctr
MunicipalityKogalym
Elevation220ft (67m)
TimezoneGMT +5
Coordinates62.20054, 74.53239
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUSRK
IATA codeKGP
FAA coden/a

Communication

Kogalym ATIS123.400
Kogalym Tower119.400

Approach frequencies

ILS-cat-IRW17108.518.00mi
ILS-cat-IRW35109.518.00mi
3° GSRW17108.518.00mi
3° GSRW35109.518.00mi

Runway info

Runway 17 / 35
 length2506m (8222ft)
 bearing200° / 20°
 width42m (138ft)
 surfaceconcrete
 blast zone90m (295ft) / 90m (295ft)

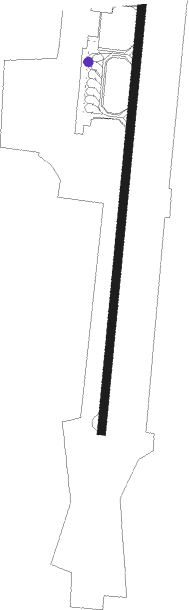

Airport layout - parking location 6


Taxiway locations

 2  3
Parking locations

 10  11  12  5  6  7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
KKOGALYM NDB0.640°996
OKOGALYM NDB1.7191°996
KGKOGALYM NDB2.826°490
OLKOGALYM NDB3.3195°490
ZENOYABRSK NDB59.636°615
NBKDME61.237°112.90
ZNOYABRSK NDB61.237°12.520

Departure and arrival routes

Transition altitude2188ft
Transition level4000ft
SID end pointsdistanceoutbound heading
RW17
 LITM2M, LITM2F23mi44°
 MALU2F, MALU2M22mi91°
 KANA2M, KANA2F26mi267°
RW35
 LITM2N, LITM2H23mi44°
 MALU2H, MALU2N22mi91°
 KANA2H, KANA2N26mi267°

STAR starting pointsdistanceinbound heading
RW17
 PARU2K25.616°
 KANA2A, KANA2B, KANA2K25.887°
 PAMI2A21.9137°
 MALU2A, MALU2B21.5271°
RW35
 PARU2L25.616°
 KANA2D, KANA2L, KANA2C25.887°
 PAMI2C21.9137°
 MALU2C, MALU2D21.5271°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17RK603 (142°)RK603 1900ft
RK602 (6mi, 95°) 1900ft
RW17RK604 (242°)RK604 1900ft
RK602 (6mi, 275°) 1900ft
 RNAVRK602 1900ft
RK601 (5mi, 201°) 1900ft
USRK (5mi, 204°) 270ft
RK606 (3mi, 196°)
RK605 (10mi, 66°)
RK604 (5mi, 21°) 1900ft
RW35RK613 (58°)RK613 1900ft
RK612 (6mi, 95°) 1900ft
RW35RK614 (325°)RK614 1900ft
RK612 (6mi, 275°) 1900ft
 RNAVRK612 1900ft
RK611 (5mi, 21°) 1900ft
USRK (6mi, 18°) 267ft
(4976mi, 230°) 900ft
RK615 (4979mi, 50°)
RK614 (5mi, 201°) 1900ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
KANA2AKVHFright207 (27)°1.0min timedICAO rules
KANA2BKGFIXleft352 (172)°> 1700ft1.0min timedICAO rules
KANA2CONDBright217 (37)°> 2960ft1.0min timedICAO rules
KANA2DOLFIXright172 (352)°> 1600ft1.0min timedICAO rules
MALU2AKVHFright207 (27)°1.0min timedICAO rules
MALU2BKGFIXleft352 (172)°> 1700ft1.0min timedICAO rules
MALU2CONDBright217 (37)°> 2960ft1.0min timedICAO rules
MALU2DOLFIXright172 (352)°> 1600ft1.0min timedICAO rules
PAMI2AKVHFright207 (27)°1.0min timedICAO rules
PAMI2BKGFIXleft352 (172)°> 1700ft1.0min timedICAO rules
PAMI2CONDBright217 (37)°> 2960ft1.0min timedICAO rules
PAMI2DOLFIXright172 (352)°> 1600ft1.0min timedICAO rules
PARU2AKVHFright207 (27)°1.0min timedICAO rules
PARU2BKGFIXleft352 (172)°> 1700ft1.0min timedICAO rules
PARU2CONDBright217 (37)°> 2960ft1.0min timedICAO rules
PARU2DOLFIXright172 (352)°> 1600ft1.0min timedICAO rules
PARU2KRK605VHFright172 (352)°> 1700ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
