Airports for X-Plane

Surgut

Airport details

CountryRussian Federation
StateKhanty-Mansiysk Autonomous Okrug – Ugra
RegionUS
AirspaceTyumen Ctr
MunicipalitySurgut
Elevation200ft (61m)
TimezoneGMT +5
Coordinates61.34139, 73.42413
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUSRR
IATA codeSGC
FAA coden/a

Communication

Surgut ATIS124.800
Surgut Ground Control120.800
Surgut Tower120.300
Surgut Approach128.800

Approach frequencies

ILS-cat-IRW25109.118.00mi
ILS-cat-IRW07110.518.00mi
3° GSRW25109.118.00mi
3° GSRW07110.518.00mi

Runway info

Runway 07 / 25
 length2781m (9124ft)
 bearing90° / 270°
 width45m (148ft)
 surfaceasphalt
 blast zone50m (164ft) / 50m (164ft)

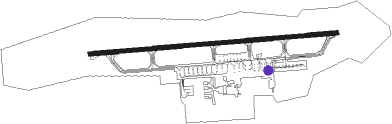

Airport layout - parking location 11


Taxiway locations

 B  C  D  E  F  G
Parking locations

 1  10  11  12  13  14  15  16
 17  18  19  1A  2  20  21  22
 23  24  25  26  27  28  29  3
 30  31  4  5  6  7  8  9
 H1  H2  H3

Nearby beacons

codeidentifierdistbearingfrequency
GVSURGUT VOR/DME0.3303°109.20
ASURGUT NDB0.684°668
GSURGUT NDB1.9272°668
AMSURGUT NDB2.388°325
GKSURGUT NDB3.6271°325

Departure and arrival routes

Transition altitude2497ft
Transition level4000ft
SID end pointsdistanceoutbound heading
RW07
 ULGU1E26mi79°
 KARP1E35mi128°
 BASA1E43mi175°
 ANIK1E, ANIK1C50mi258°
 OGIK1E39mi294°
 INDU1E38mi352°
RW25
 ULGU1W26mi79°
 KARP1W35mi128°
 BASA1W43mi175°
 ANIK1W50mi258°
 OGIK1W39mi294°
 INDU1W38mi352°

STAR starting pointsdistanceinbound heading
RW07
 BOML1G, BOML1K, BOML1L40.549°
 KOVE1L, KOVE1K, KOVE1G72.387°
 ARME1G, ARME1K, ARME1L41.995°
 INDU1K, INDU1G38.1172°
 ULGU1L, ULGU1K, ULGU1G25.5259°
RW25
 BOML1T, BOML1M, BOML1A40.549°
 KOVE1T, KOVE1A, KOVE1M72.387°
 ARME1T, ARME1M, ARME1A41.995°
 INDU1M38.1172°
 ULGU1A, ULGU1M, ULGU1T25.5259°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07RR175 (90°)RR175 2150ft
RR174 (5mi, 90°) 1830ft
RW07RR176 (83°)RR176 2150ft
RR174 (5mi, 63°) 1830ft
RW07RR177 (97°)RR177 2150ft
RR174 (5mi, 115°) 1830ft
 RNAVRR174 1830ft
RR173 (3mi, 90°) 1830ft
USRR (6mi, 90°) 232ft
(4933mi, 230°) 840ft
RR178 (4926mi, 50°) 2150ft
RR177 (5mi, 244°)
RW25RR255 (269°)RR255 2170ft
RR254 (4mi, 270°) 1510ft
RW25RR256 (278°)RR256 2170ft
RR254 (5mi, 295°) 1510ft
RW25RR257 (261°)RR257 2170ft
RR254 (5mi, 244°) 1510ft
 RNAVRR254 1510ft
RR253 (3mi, 270°) 1510ft
USRR (4mi, 269°) 246ft
(4933mi, 230°) 860ft
RR258 (4941mi, 50°) 2170ft
RR257 (5mi, 115°)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARME1KGKFIXleft253 (73)°> 4000ft1.0min timedICAO rules
ARME1MAMFIXright73 (253)°> 4000ft1.0min timedICAO rules
BASA1KGKFIXleft253 (73)°> 4000ft1.0min timedICAO rules
BASA1MAMFIXright73 (253)°> 4000ft1.0min timedICAO rules
BOML1KGKFIXleft253 (73)°> 4000ft1.0min timedICAO rules
BOML1MAMFIXright73 (253)°> 4000ft1.0min timedICAO rules
INDU1KGKFIXleft253 (73)°> 4000ft1.0min timedICAO rules
INDU1MAMFIXright73 (253)°> 4000ft1.0min timedICAO rules
KARP1KGKFIXleft253 (73)°> 4000ft1.0min timedICAO rules
KARP1MAMFIXright73 (253)°> 4000ft1.0min timedICAO rules
KOVE1ALAMINVHFleft242 (62)°1.0min timedICAO rules
KOVE1GLAMINVHFleft242 (62)°1.0min timedICAO rules
KOVE1KGKFIXleft253 (73)°> 4000ft1.0min timedICAO rules
KOVE1KLAMINVHFleft242 (62)°1.0min timedICAO rules
KOVE1LLAMINVHFleft242 (62)°1.0min timedICAO rules
KOVE1MAMFIXright73 (253)°> 4000ft1.0min timedICAO rules
KOVE1MLAMINVHFleft242 (62)°1.0min timedICAO rules
KOVE1TLAMINVHFleft242 (62)°1.0min timedICAO rules
LOKO1KGKFIXleft253 (73)°> 4000ft1.0min timedICAO rules
LOKO1MAMFIXright73 (253)°> 4000ft1.0min timedICAO rules
OGIK1KGKFIXleft253 (73)°> 4000ft1.0min timedICAO rules
OGIK1MAMFIXright73 (253)°> 4000ft1.0min timedICAO rules
ULGU1KGKFIXleft253 (73)°> 4000ft1.0min timedICAO rules
ULGU1MAMFIXright73 (253)°> 4000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
